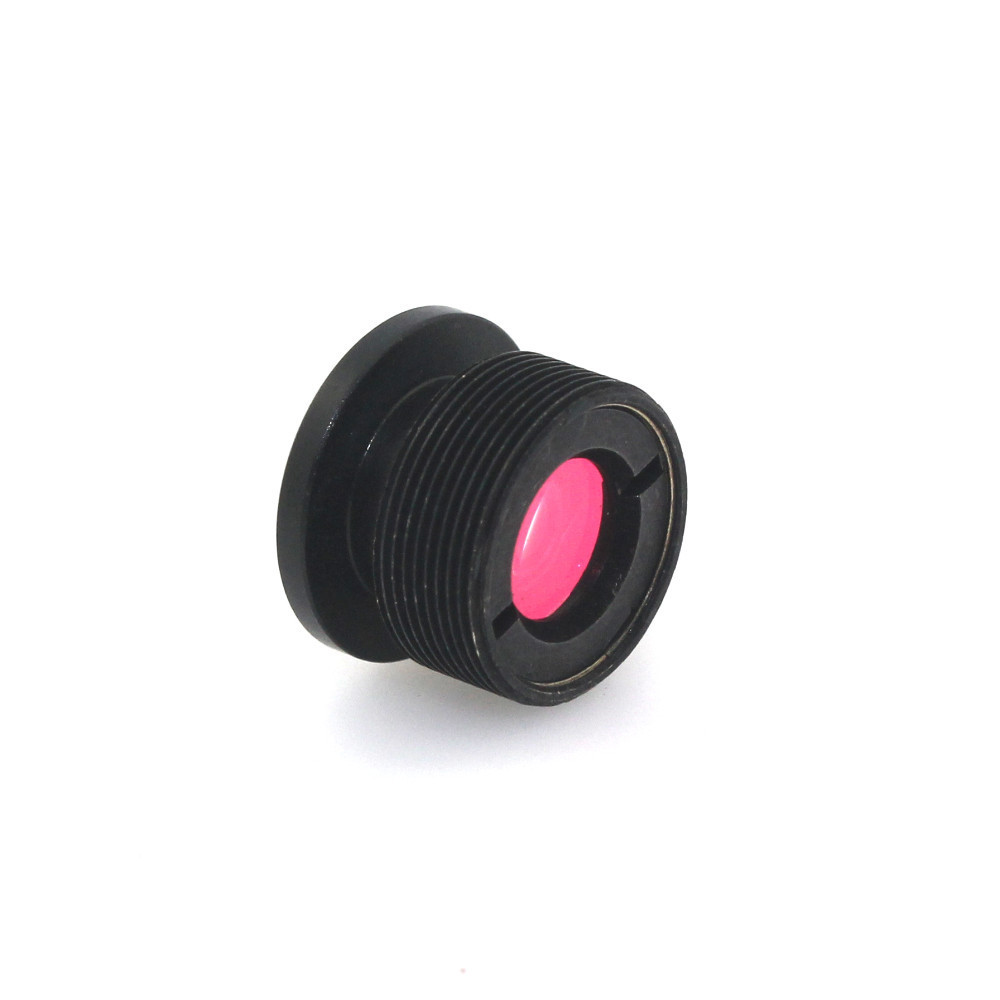

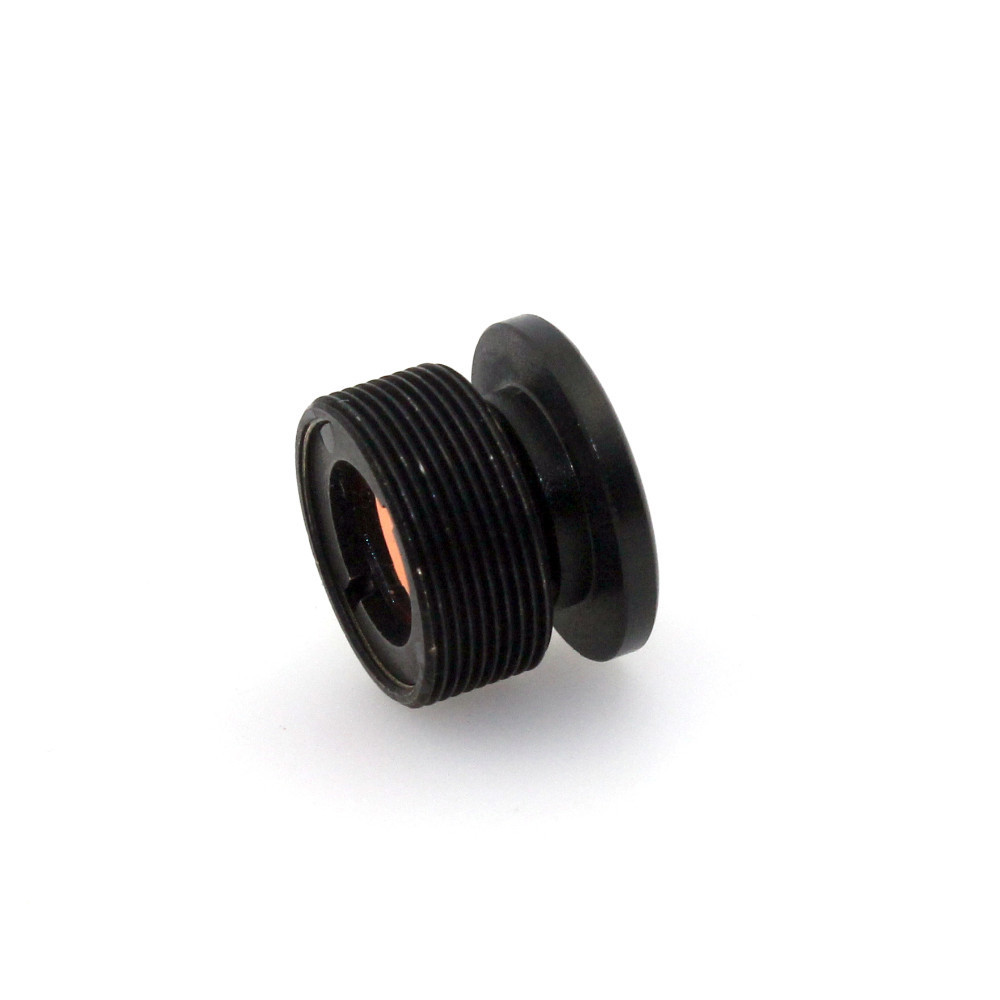

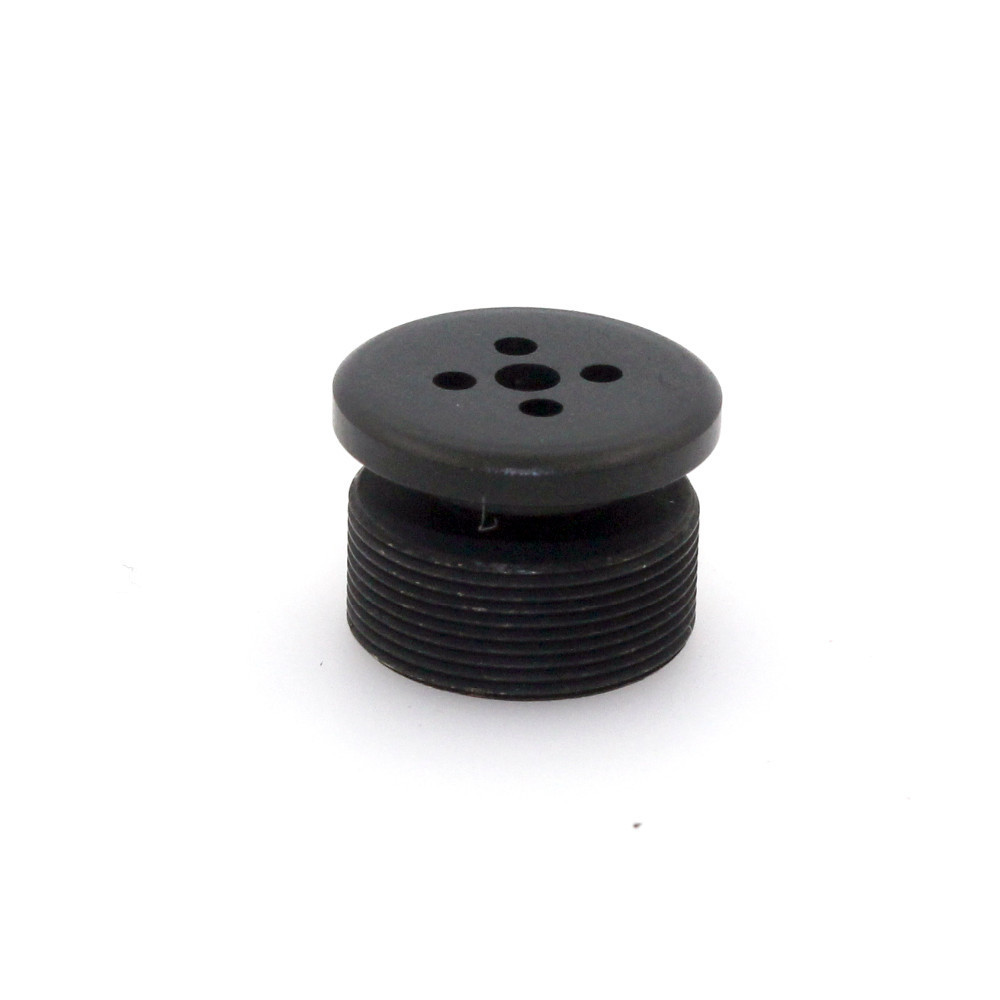

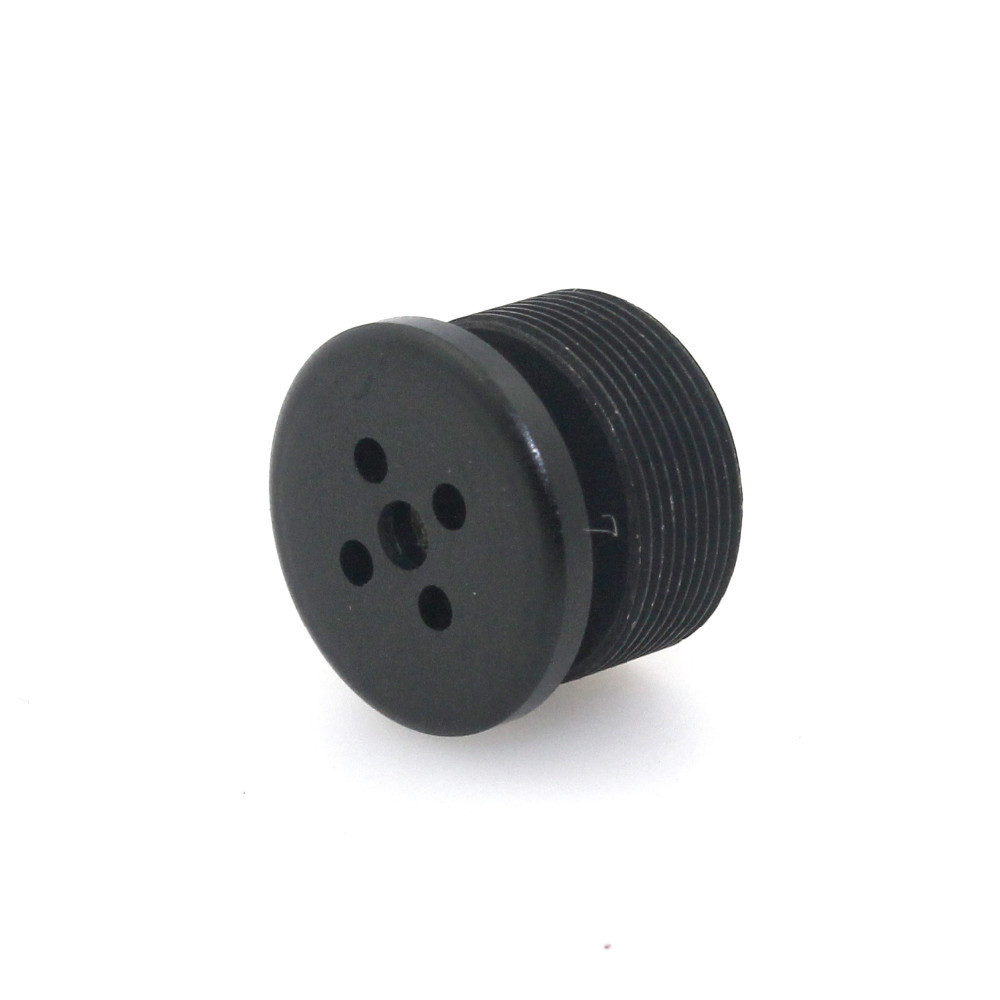

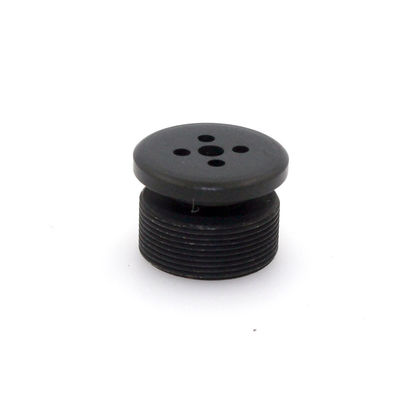

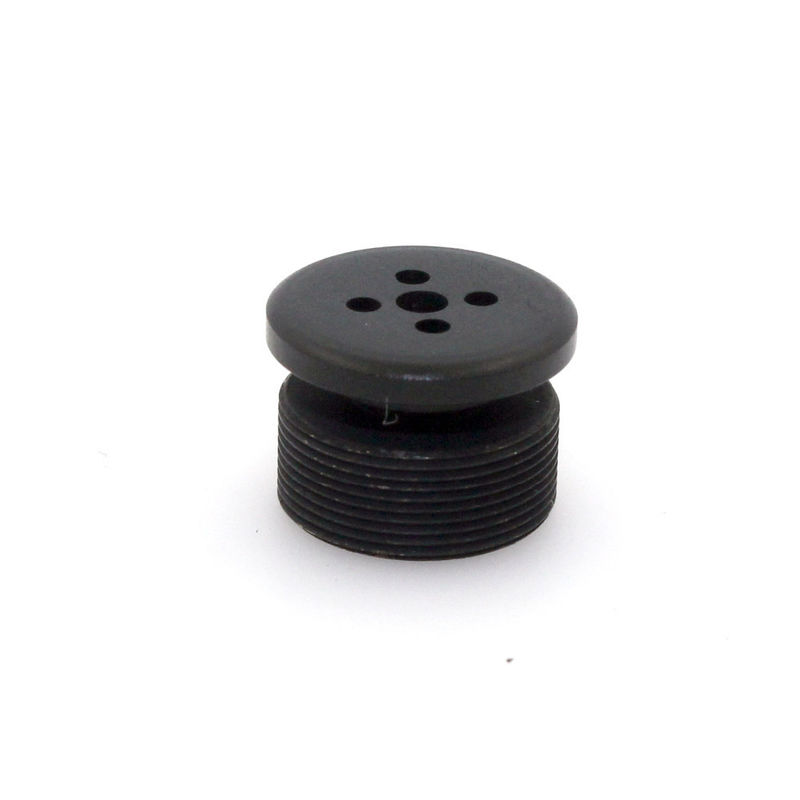

2.0 Megapixe HD Pinhole CCTV Lens Lightweight DFOV Optical IR Cut Lens

2.0 Megapixe HD Pinhole CCTV Lens Lightweight DFOV Optical IR Cut Lens

    • 2.0 Megapixe HD Pinhole CCTV Lens Lightweight DFOV Optical IR Cut Lens
    • 2.0 Megapixe HD Pinhole CCTV Lens Lightweight DFOV Optical IR Cut Lens
    • 2.0 Megapixe HD Pinhole CCTV Lens Lightweight DFOV Optical IR Cut Lens
    • 2.0 Megapixe HD Pinhole CCTV Lens Lightweight DFOV Optical IR Cut Lens
  • 2.0 Megapixe HD Pinhole CCTV Lens Lightweight DFOV Optical IR Cut Lens

    Product Details:

    Place of Origin: China
    Brand Name: Octavia
    Certification: CE, FCC, RoHS
    Model Number: MR-C03720WNK-2MP

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
    Delivery Time: The products will be ready within 3 to 7 days, New products will need 30 days
    Payment Terms: T/T, L/C, PAYPAL, WEST UNION
    Supply Ability: 1000000pcs/month
    Contact Now
    Detailed Product Description
    Model: MR-C03720WNK-2MP Mount: M12*0.5
    Focal Length: 3.7mm Image Format: 1/3''
    Aperture: F2.0 Field Angle(1/3%22): 80°
    Lens Size: Φ12mm(Dia) * 5.7mm(H)
    High Light:

    pinhole camera lens

    ,

    m12 pinhole lens

    2MP HD 3.7mm lens IR Filter Metal Button effect Board 2.0 megapixel 3.7mm lens For CCTV Security Camera:



    Specification
    Model MR-C03720WNK-2MP Mount M12*0.5
    Focal Length 3.7mm Optical BFL 0.02mm
    Sensor Size 1/3'' Weight 3.9g
    Aperture F2.0 Dimension Φ12mm(Dia) * 5.7mm(H)
    MOD 0.2m Operating Temperature -20°C -- +80°C
    Angle of View 80° Resolution 2.0MP
    Application Pinhole plane lens, doorbell lens







    Features:
    1. 3.7 pinhole lens, F2.0 Button pinhole Lens, hidden lens.
    2. 1/3" Format High quality cctv camera lens, optical lens , Miniture Lens
    3. M12 mount 3.7mm 80 Degree of DFOV security lens
    4. Wide angle pinhole Lens for hidden camera,Surveillance Lens, doorbell video Lens

    5. 2.0MP High resolution Mini Lens, HD 3.7mm Pinhole CCTV IR Lens



    Advantages and characteristics of lens:
    1. Day & Night
    With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
    2. Flat Image
    With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
    3. Multi Coating
    To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
    4. High resolution lens

    it could meet the demands as per 2.0MP resolution cameras. IR Cut and Lens Holder are available as per request.



    Our Service:

    1. Reply your enquiry in 24 working hours.

    2. 12 Months warranty for all Octavia products.

    3. Customized design is available. OEM are welcome.

    4. Experienced engineers can solve all your technical problems

    5. Goods will ship within 3 working days after received the verified payment.

    6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.



    Tag: Pinhole CCTV Lens



    2MP HD 3.7mm lens IR Filter Metal Button effect Board 2.0 megapixel 3.7mm lens For CCTV Security Camera
