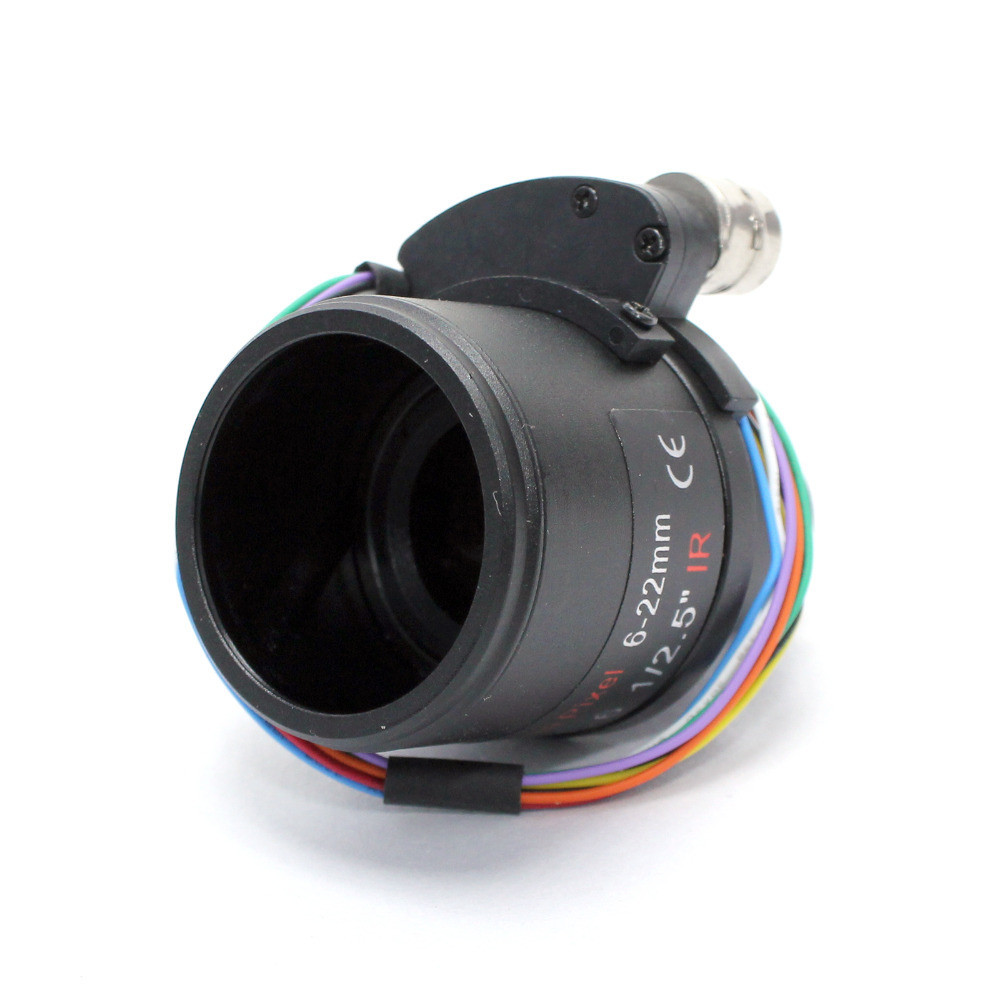

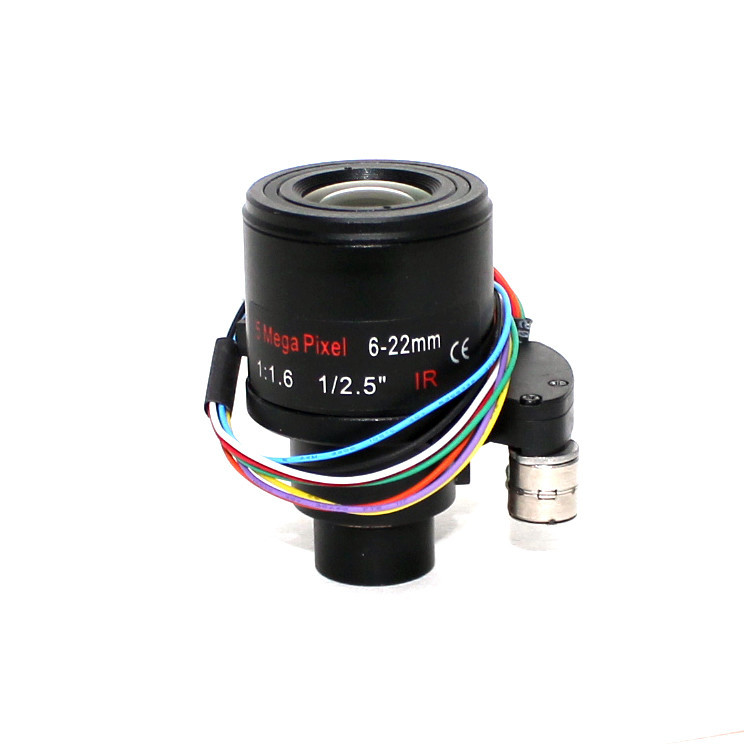

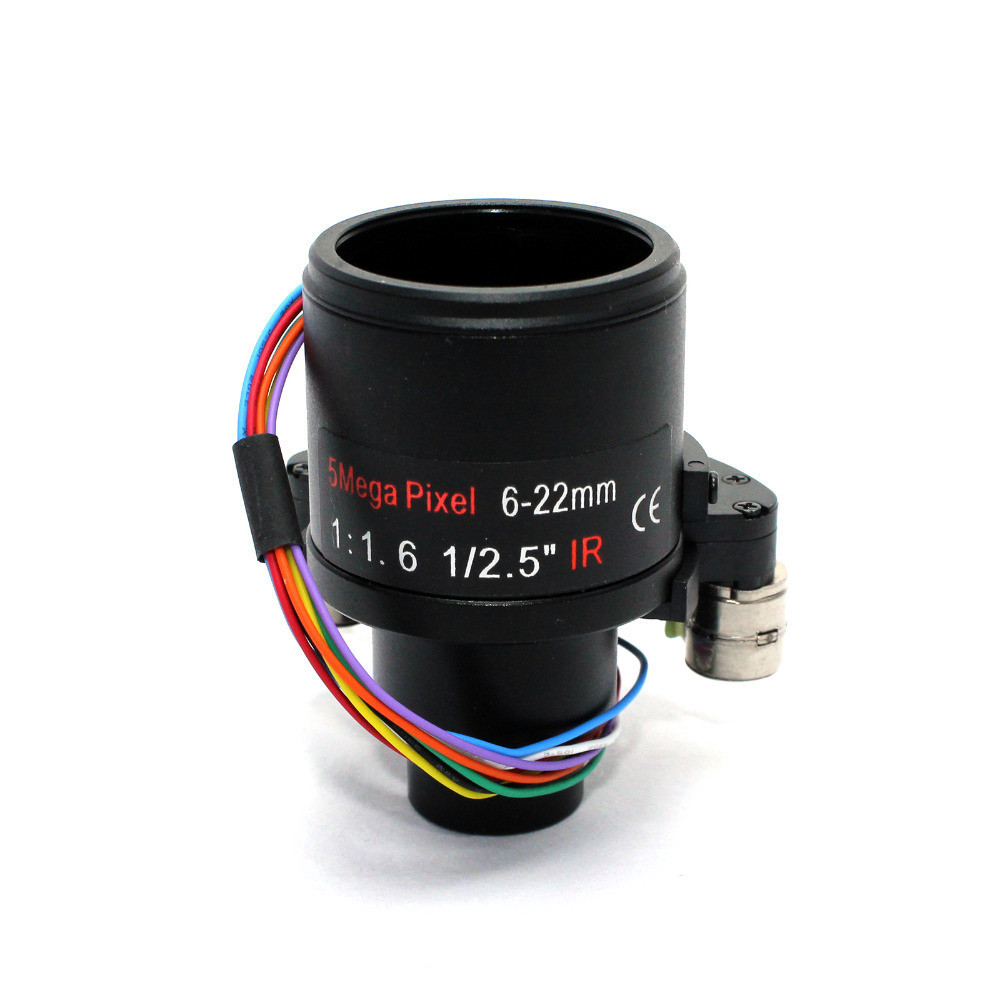

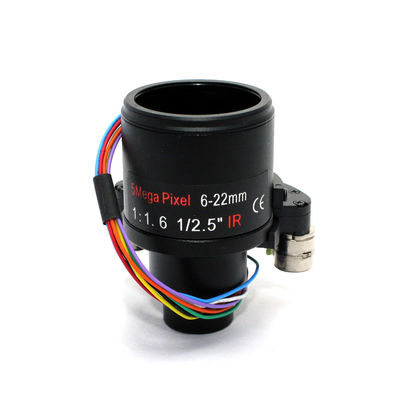

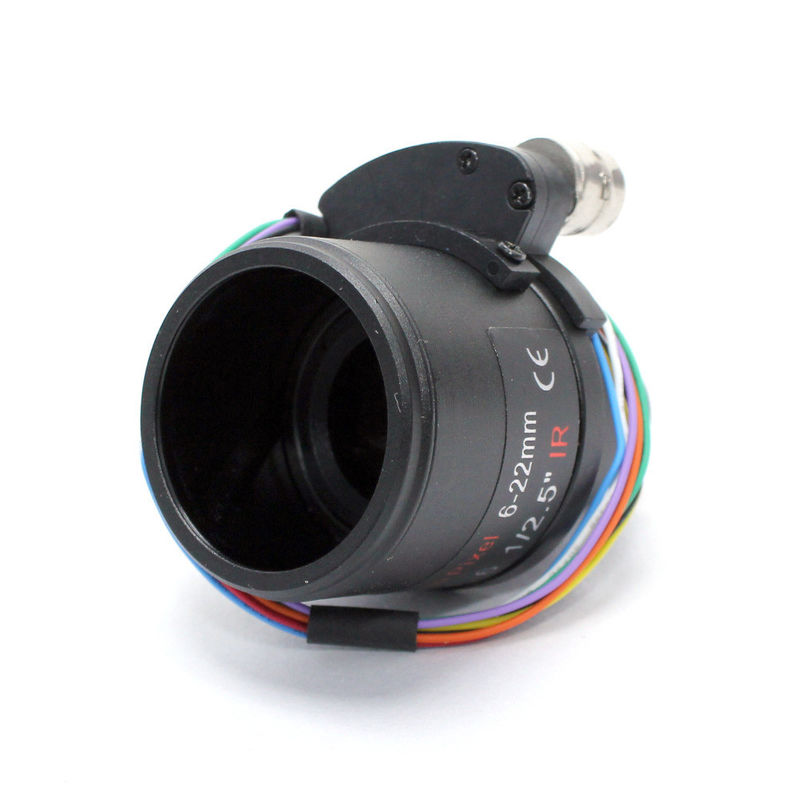

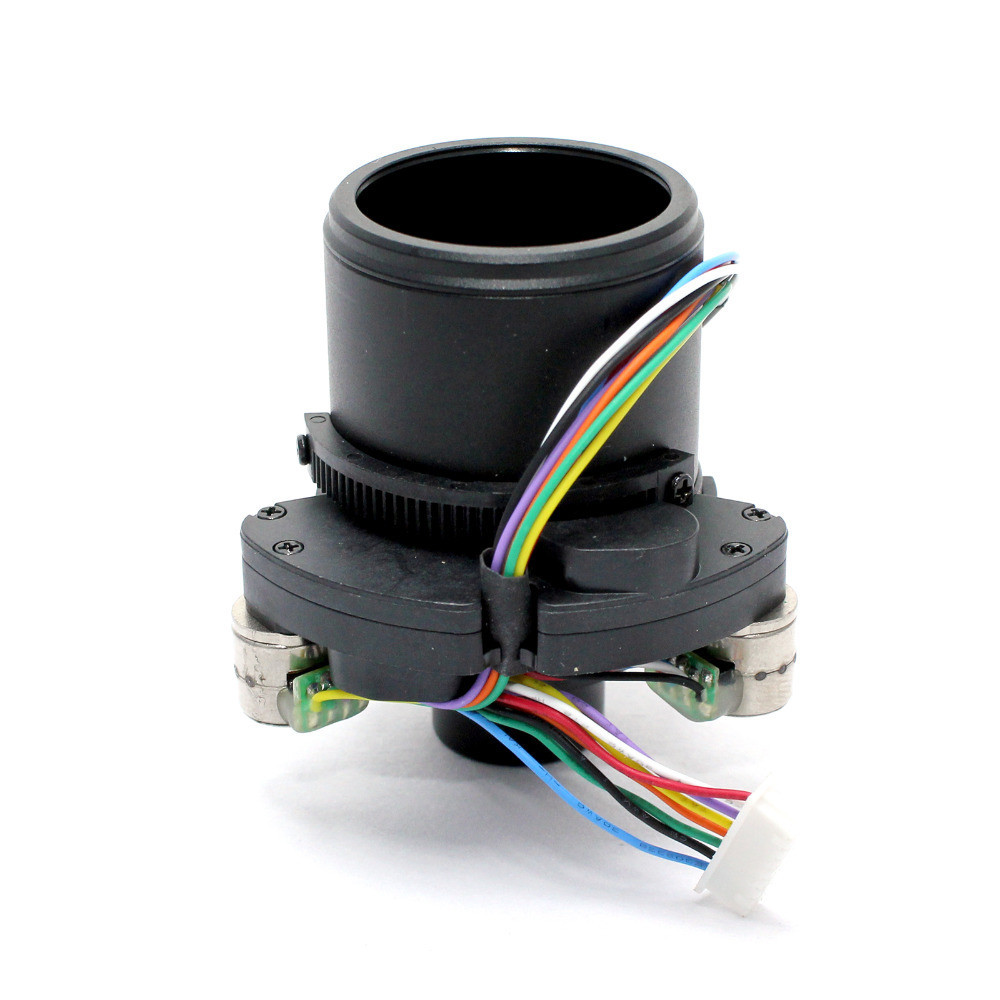

HD DC Focus Motorized Zoom Lens 1/2.5" F1.6 5MP 6-22mm Manual Iris

HD DC Focus Motorized Zoom Lens 1/2.5" F1.6 5MP 6-22mm Manual Iris

    • HD DC Focus Motorized Zoom Lens 1/2.5" F1.6 5MP 6-22mm  Manual Iris
    • HD DC Focus Motorized Zoom Lens 1/2.5" F1.6 5MP 6-22mm  Manual Iris
    • HD DC Focus Motorized Zoom Lens 1/2.5" F1.6 5MP 6-22mm  Manual Iris
    • HD DC Focus Motorized Zoom Lens 1/2.5" F1.6 5MP 6-22mm  Manual Iris
  • HD DC Focus Motorized Zoom Lens 1/2.5" F1.6 5MP 6-22mm  Manual Iris

    Product Details:

    Place of Origin: China
    Brand Name: Octavia
    Certification: CE, FCC, RoHS
    Model Number: MR-C0622WDD-5MP14

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
    Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
    Payment Terms: T/T, L/C, PAYPAL, WEST UNION
    Supply Ability: 1000000pcs/month
    Contact Now
    Detailed Product Description
    Model: MR-C0622WDD-5MP14 Resolution: 5MP
    Focal Length: 6-22mm Image Format: 1/2.5″
    Aperture: F1.6 Field Of View: 20.4°×16.3°×12.2° ~ 58°×46.4°×34.8°
    Iris: Motor Drive MOD: 0.3m
    Mount: D14 / M12
    High Light:

    cctv camera wide angle lens

    ,

    hd zoom lens

    HD 5MP 6-22mm Motorized HD CCTV Camera Lens D14 Mount 1/2.5" Image Format F1.6 DC Zoom DC Focus





    Features:
    1. 5.0 megapixel AHD Camera lens, 6-22mm F1.6 auto iris CS Lens, manual iris auto zoom lens.
    2. 1/2.5" Format High quality cctv camera lens, optical lens ,CS Mount Lens
    3. 6-22mm focal length security motorized zoom lens
    4. Machine Vision Lens for industrial camera, Surveillance Lens, large field surveillance Lens
    5. This high resolution cctv lens is for mega pixel camera,IP camera & High resolution camera.





    Specification

    Model MR-C0622WDD-5MP14 Mount M14 mount
    Focal Length 6-22mm Resolution 5.0MP
    Sensor Size 1/2.5" Weight 31.3g
    Aperture F1.6 Dimension φ28*45.3mm
    MOD 0.3m BFL 6.39mm
    Angle of View 20.4°×16.3°×12.2° ~ 58°×46.4°×34.8° IR Correction Yes
    Application Motor zoom Lens





    Advantages and characteristics of lens:
    1. Day & Night
    With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
    2. Flat Image
    With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
    3. Multi Coating
    To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
    4. High resolution lens
    The pixels of high resolution lenses are 5.0 Megapixel,
    IR Cut and Lens Holder are available as per request.



    Our Service:

    1. Reply your enquiry in 24 working hours.

    2. 12 Months warranty for all Octavia products.

    3. Customized design is available. OEM are welcome.

    4. Experienced engineers can solve all your technical problems

    5. Goods will ship within 3 working days after received the verified payment.

    6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.



    Tag: Motorized zoom Lens





    HD 5MP 6-22mm Motorized HD CCTV Camera Lens D14 Mount 1/2.5" Image Format F1.6 DC Zoom DC Focus
