Home ProductsManual Iris Lens, Motor Iris Lenses

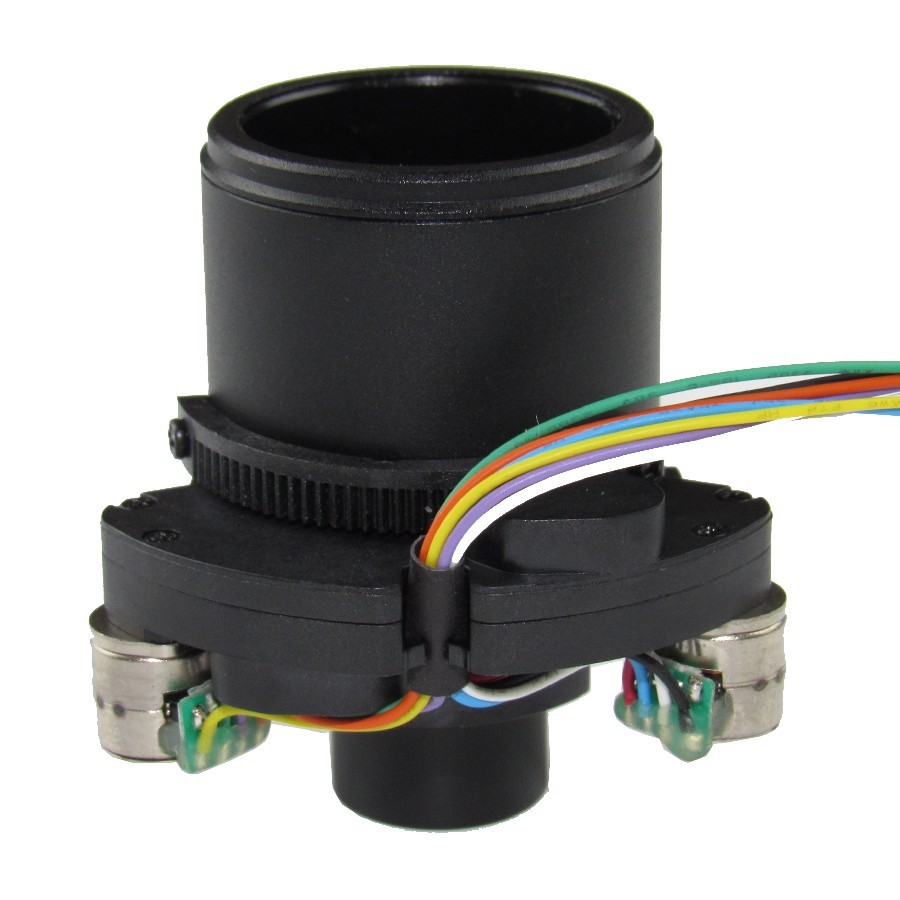

5MP Motor Vari-focal Lenses, 6-22mm surveillance lens, high resolution cctv lens, zoom focus, fixed iris lens

5MP Motor Vari-focal Lenses, 6-22mm surveillance lens, high resolution cctv lens, zoom focus, fixed iris lens

    • 5MP Motor Vari-focal Lenses, 6-22mm surveillance lens, high resolution cctv lens, zoom focus, fixed iris lens
    • 5MP Motor Vari-focal Lenses, 6-22mm surveillance lens, high resolution cctv lens, zoom focus, fixed iris lens
    • 5MP Motor Vari-focal Lenses, 6-22mm surveillance lens, high resolution cctv lens, zoom focus, fixed iris lens
  • 5MP Motor Vari-focal Lenses, 6-22mm surveillance lens, high resolution cctv lens, zoom focus, fixed iris lens

    Product Details:

    Place of Origin: China
    Brand Name: Octavia
    Certification: CE, FCC
    Model Number: MR-C0622DD-14M5MP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Packaging Details: Standard packing
    Delivery Time: 5-8 days
    Payment Terms: T/T, Paypal, West Union,etc.
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    Megapixel: 5.0MP Image Size: 1/2.5''
    Focal Length: 6-22mm Aperture: F2.2
    Mount: D14 Focus: Motor Drive
    Zoom: Motor Drive Iris: Fixed

    5MP Motor Vari-focal Lenses, 6-22mm surveillance lens, high resolution cctv lens, zoom focus, fixed iris lens

    Model
    MR-C0622DD-14M5MP
    Pixel 5.0Megapixel
    Image Format 1/2.5″
    Focal Length 6-22mm
    Aperture F2.2
    Mount M14
    Field Angle
    D×H×V(°)(1/2.5")
    20.4°×16.3°×12.2°~58°×46.4°×34.8°
    M.O.D 0.3m
    Flang BFL 13.5mm
    Material Metal
    MBF 6.2mm
    Dimension Φ28×45.3mm
    Weight 31.3g
    Back Focal Length 6.4~13.5mm
    Iris Fixed
    Focus DC
    Zoom DC
    Operating temperature -20C + 60C
    CRA Less than 11.38°
    Angle tolerance ±2°

    security cctv lenses, 6-22mm security lens, fixed iris lens, M14 mount lens
