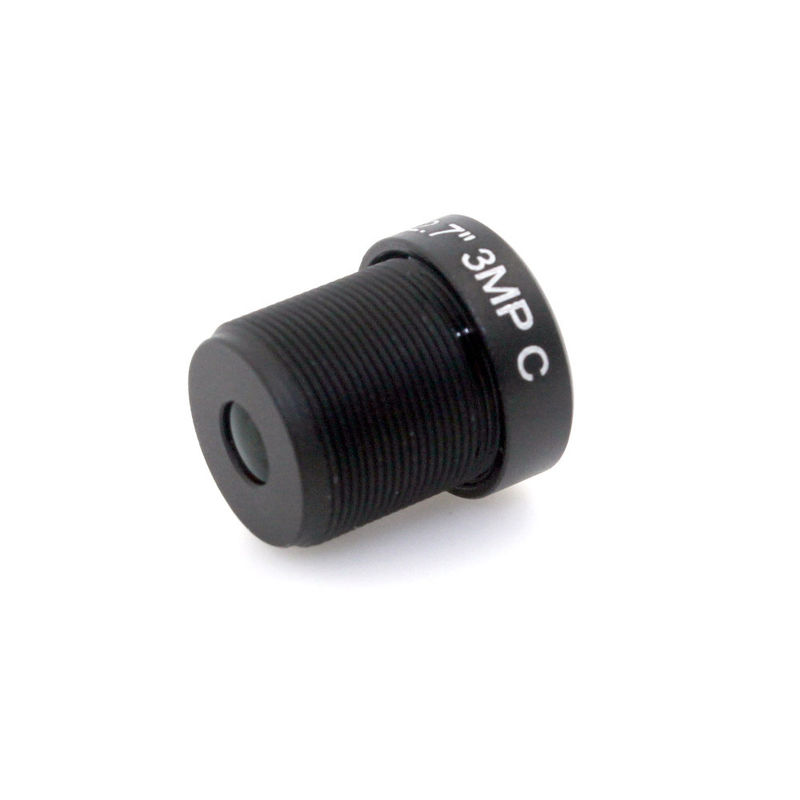

3MP 1/2.7" 2.8mm 120° Wide Angle View Fisheye CCTV IR Fixed Board Lens M12 MTV Mount Holder Support for Analog IP Camera

3MP 1/2.7" 2.8mm 120° Wide Angle View Fisheye CCTV IR Fixed Board Lens M12 MTV Mount Holder Support for Analog IP Camera

    • 3MP 1/2.7" 2.8mm 120° Wide Angle View Fisheye CCTV IR Fixed Board Lens M12 MTV Mount Holder Support for Analog IP Camera
    • 3MP 1/2.7" 2.8mm 120° Wide Angle View Fisheye CCTV IR Fixed Board Lens M12 MTV Mount Holder Support for Analog IP Camera
    • 3MP 1/2.7" 2.8mm 120° Wide Angle View Fisheye CCTV IR Fixed Board Lens M12 MTV Mount Holder Support for Analog IP Camera
    • 3MP 1/2.7" 2.8mm 120° Wide Angle View Fisheye CCTV IR Fixed Board Lens M12 MTV Mount Holder Support for Analog IP Camera
    • 3MP 1/2.7" 2.8mm 120° Wide Angle View Fisheye CCTV IR Fixed Board Lens M12 MTV Mount Holder Support for Analog IP Camera
  • 3MP 1/2.7" 2.8mm 120° Wide Angle View Fisheye CCTV IR Fixed Board Lens M12 MTV Mount Holder Support for Analog IP Camera

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Octavia
    Certification: CE, FCC, RoHS
    Model Number: MR-C02818W127-3MPC

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: $2.0-2.6USD/pc
    Packaging Details: Standard packing
    Delivery Time: 3-7days after the order is confirmed
    Payment Terms: T/T, PAYPAL, WEST UNION
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    Model: MR-C02818W127-3MPC Sensor Size: 1/2.7''
    Mount: M12*0.5 Aperture: F2.0
    Focal Length: 2.8mm HFOV: 135°*115°*87°(1/2.7'')
    Reoslution: 3MP MOD: 0.2m
    BFL: 5.7mm EFL: 3.7mm
    Dimension: 14*15.3mm

    3MP 1/2.7" 2.8mm 120 Degrees Wide Angle View Fisheye CCTV IR Fixed Board Lens M12 MTV Mount Holder Support for Analog IP Camera:





    Specification

    Model MR-C02818W127-3MPC Mount M12*0.5
    Focal Length 2.8mm Resolution 3.0MP
    Sensor Size 1/2.7'' BFL 5.7mm
    Aperture F2.0 EFL 3.7mm
    MOD 20cm Dimension Φ14*15.3mm
    Angle of View

    135°*115°*87°(1/2.7'')

    Weight 5g
    Remark Metal Lens





    Features:
    1. 3.0 megapixel HD lens,2.8mm F2.0 board MTV Lens, fixed iris manual focus lens.
    2. 1/2.7" Format High quality manual iris cctv lens, optical cctv lens ,M12 Mount Lens
    3. 2.8mm focal length 135 Degree of DFOV security lens
    4. Wide angle fisheye Lens for box camera,Surveillance Lens, Mini Dome Camera Lens
    5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.



    Advantages and characteristics of lens:
    1. Day & Night
    With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
    2. Flat Image
    With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
    3. Multi Coating
    To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
    4. High resolution lens
    The pixels of high resolution lenses are beyond 3.0 Megapixel,
    IR Cut and Lens Holder are available as per request.
