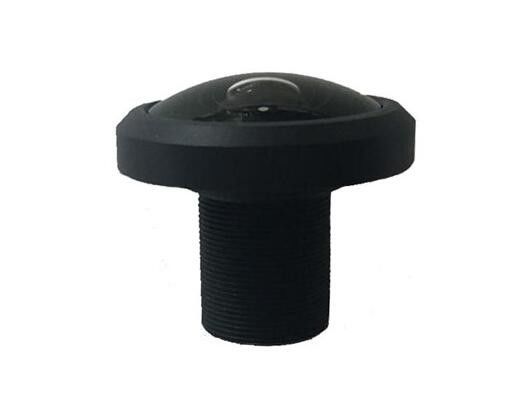

12MP 1/2.3" 1.55mm Fisheye 190 Degrees Wide Angle Fixed Iris IR M12 CCTV Board Lens for 8MP 10MP 12 Megapixel Analog IP

12MP 1/2.3" 1.55mm Fisheye 190 Degrees Wide Angle Fixed Iris IR M12 CCTV Board Lens for 8MP 10MP 12 Megapixel Analog IP

    • 12MP 1/2.3" 1.55mm Fisheye 190 Degrees Wide Angle Fixed Iris IR M12 CCTV Board Lens for 8MP 10MP 12 Megapixel Analog IP
    • 12MP 1/2.3" 1.55mm Fisheye 190 Degrees Wide Angle Fixed Iris IR M12 CCTV Board Lens for 8MP 10MP 12 Megapixel Analog IP
    • 12MP 1/2.3" 1.55mm Fisheye 190 Degrees Wide Angle Fixed Iris IR M12 CCTV Board Lens for 8MP 10MP 12 Megapixel Analog IP
  • 12MP 1/2.3" 1.55mm Fisheye 190 Degrees Wide Angle Fixed Iris IR M12 CCTV Board Lens for 8MP 10MP 12 Megapixel Analog IP

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Octavia
    Certification: CE, FCC, RoHS
    Model Number: MR-F0155IRST-12MP

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: $28-30USD/pc
    Packaging Details: Standard packing
    Delivery Time: 3-7days after the order is confirmed
    Payment Terms: T/T, PAYPAL, WEST UNION
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    Model: MR-F0155IRST-12MP Sensor Size: 1/2.3''
    Resolution: 12.0MP Aperture: F2.0
    Focal Length: 1.55mm HFOV: 195°
    MOD: 0.15m BFL: 4.63mm

    12MP 1/2.3" 1.55mm Fisheye 190 Degrees Wide Angle Fixed Iris IR M12 CCTV Board Lens for 8MP 10MP 12 Megapixel Analog IP :



    Specification

    Model MR-F0155IRST-12MP Mount M12
    Focal Length 1.55mm Resolution 12.0MP
    Sensor Size 1/2.3" BFL 4.63mm
    Aperture F2.0 Dimension Φ26*23.16mm
    MOD 0.15m MBF 3.95mm
    Angle of View

    195°

    weight 8g
    Application Panoramic Camera ,Car DVR ,VR Panoramic Camera , Sports DV

    12MP 1/2.3" 1.55mm Fisheye 190 Degrees Wide Angle Fixed Iris IR M12 CCTV Board Lens for 8MP 10MP 12 Megapixel Analog IP
