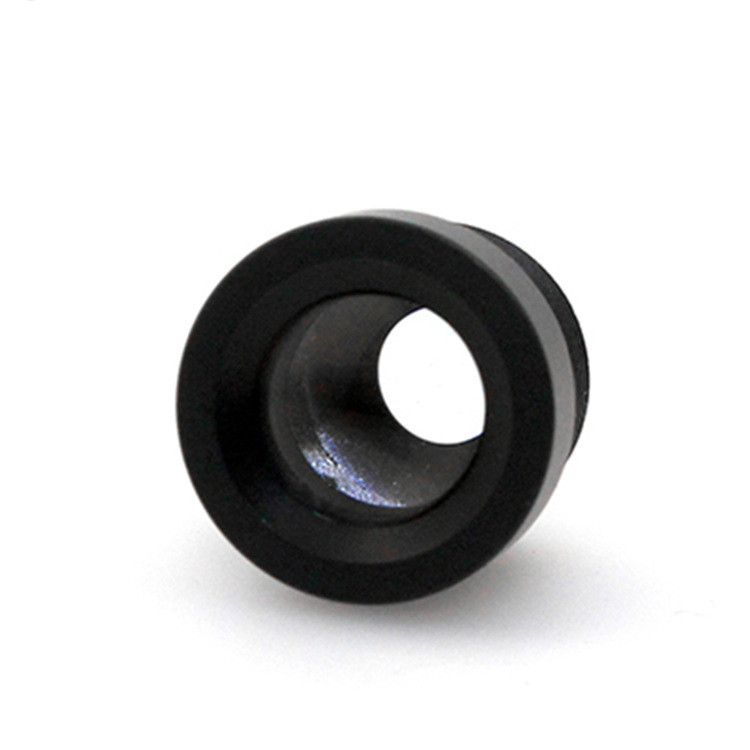

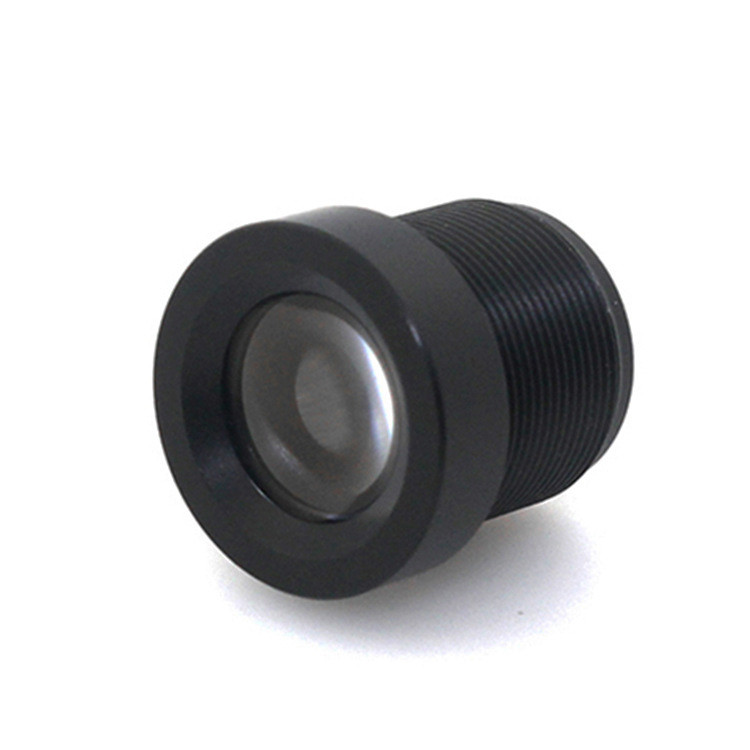

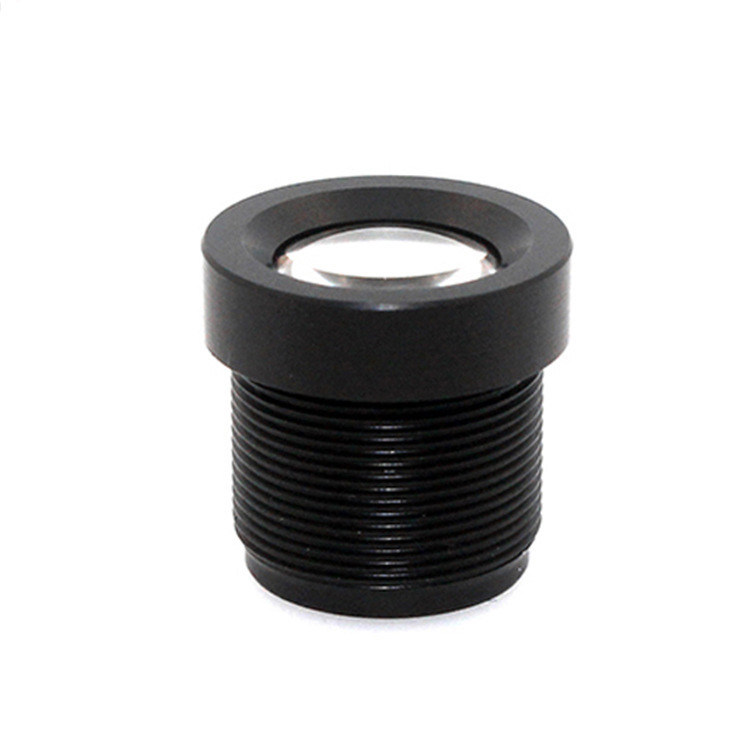

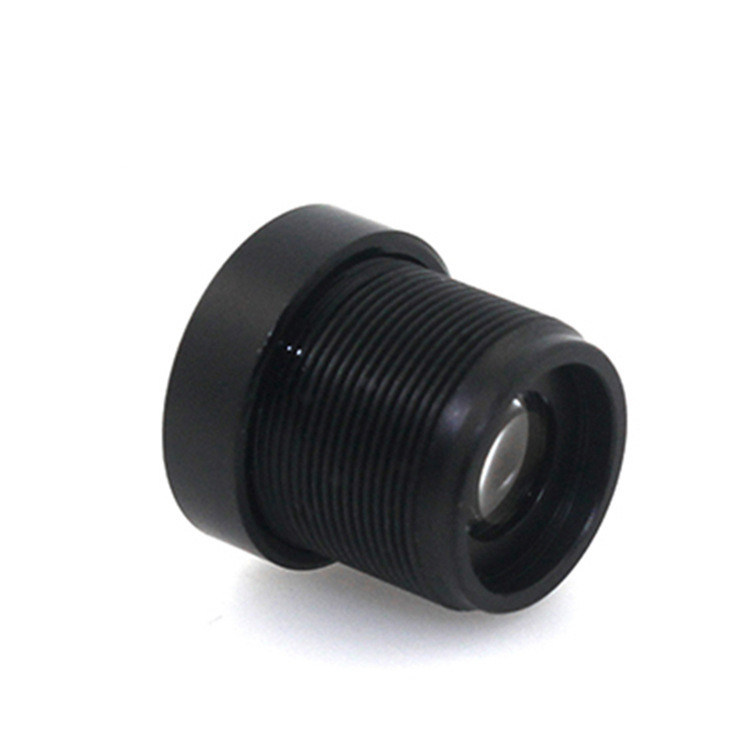

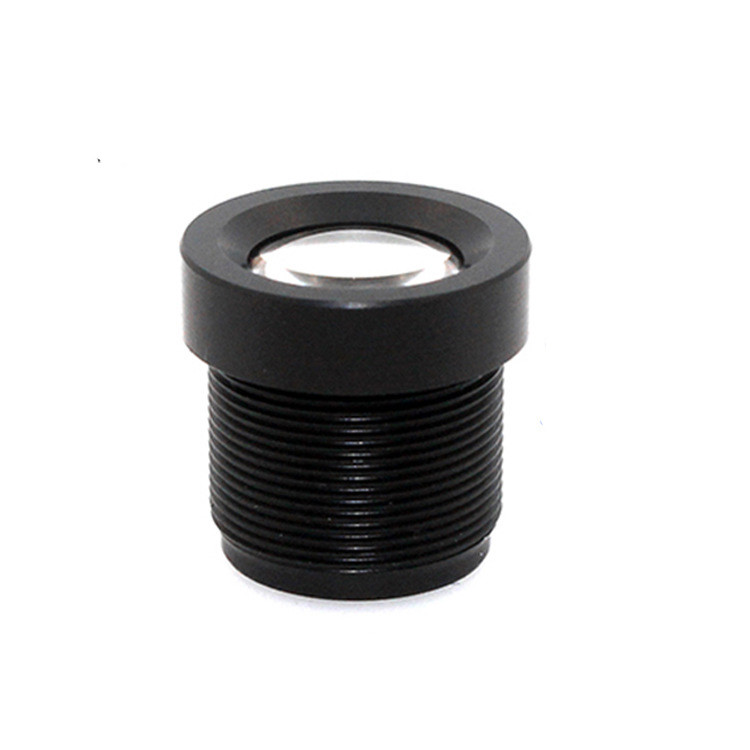

16mm lens M12 Board Camera Lens1/3" F2.0 Lens For CCTV CCD CMOS Security IP Camera

16mm lens M12 Board Camera Lens1/3" F2.0 Lens For CCTV CCD CMOS Security IP Camera

    • 16mm lens M12 Board Camera Lens1/3" F2.0 Lens For CCTV CCD CMOS Security IP Camera
    • 16mm lens M12 Board Camera Lens1/3" F2.0 Lens For CCTV CCD CMOS Security IP Camera
    • 16mm lens M12 Board Camera Lens1/3" F2.0 Lens For CCTV CCD CMOS Security IP Camera
    • 16mm lens M12 Board Camera Lens1/3" F2.0 Lens For CCTV CCD CMOS Security IP Camera
    • 16mm lens M12 Board Camera Lens1/3" F2.0 Lens For CCTV CCD CMOS Security IP Camera
  • 16mm lens M12 Board Camera Lens1/3" F2.0 Lens For CCTV CCD CMOS Security IP Camera

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Octavia
    Certification: CE, FCC, RoHS
    Model Number: MR-1620

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: $1.5-2.1USD/pc
    Packaging Details: Standard packing
    Delivery Time: 3-7days after the order is confirmed
    Payment Terms: T/T, PAYPAL, WEST UNION
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    Model: MR-1620 Sensor Size: 1/3''
    Mount: M12*0.5 Aperture: F2.0
    Focal Length: 16mm HFOV: 21°
    MOD: 0.2m

    16mm lens M12 Board Camera Lens1/3" F2.0 Lens For CCTV CCD CMOS Security IP Camera:





    Specification

    Model MR-1620 Mount M12*0.5
    Focal Length 16mm Resolution 1.0MP
    Sensor Size 1/3'' Iris Fixed
    Aperture F2.0 Focus Manual
    MOD 20cm Dimension 14*13.5mm
    Angle of View

    21°

    Weight 5g
    Application AHD Camera





    16mm lens M12 Board Camera Lens1/3" F2.0 Lens For CCTV CCD CMOS Security IP Camera

    Features:
    1. 16mm m12 Camera lens, F2.0 mono-focal Lens, fixed iris focal lens.
    2. 1/3" Format High quality cctv camera lens, optical lens, Mini MTV Lens
    3. 21 Degree of DFOV security lens
    4. 1.0 Megapixel Lens for CCTV camera, Surveillance Lens, MTV Lens
    5. This high resolution cctv lens could be used for mega pixel camera,IP camera & High resolution camera.



    Advantages and characteristics of lens:
    1. Day & Night
    With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
    2. Flat Image
    With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
    3. Multi Coating
    To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
    4. High resolution lens
    The pixels of high resolution lenses are 1.0 Megapixel, IR Cut and Lens Holder are available as per request.



    Our Service:

    1. Reply your enquiry in 24 working hours.

    2. 12 Months warranty for all Octavia products.

    3. Customized design is available. OEM are welcome.

    4. Experienced engineers can solve all your technical problems

    5. Goods will ship within 3 working days after received the verified payment.

    6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
