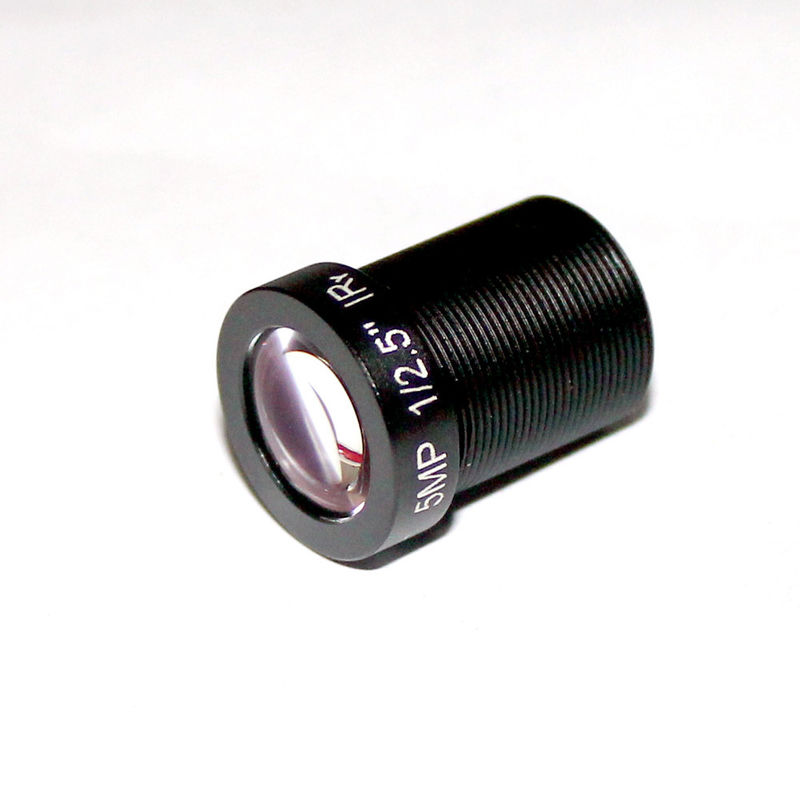

16mm Lens cctv Lens M12 5Megapixel for HD Security IP Camera F2.0 1/2.5" 20Degree Angular View

16mm Lens cctv Lens M12 5Megapixel for HD Security IP Camera F2.0 1/2.5" 20Degree Angular View

    • 16mm Lens cctv Lens M12 5Megapixel for HD Security IP Camera F2.0 1/2.5" 20Degree Angular View
    • 16mm Lens cctv Lens M12 5Megapixel for HD Security IP Camera F2.0 1/2.5" 20Degree Angular View
    • 16mm Lens cctv Lens M12 5Megapixel for HD Security IP Camera F2.0 1/2.5" 20Degree Angular View
    • 16mm Lens cctv Lens M12 5Megapixel for HD Security IP Camera F2.0 1/2.5" 20Degree Angular View
    • 16mm Lens cctv Lens M12 5Megapixel for HD Security IP Camera F2.0 1/2.5" 20Degree Angular View
  • 16mm Lens cctv Lens M12 5Megapixel for HD Security IP Camera F2.0 1/2.5" 20Degree Angular View

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Octavia
    Certification: CE, FCC, RoHS
    Model Number: MR-C1618W125-5MP

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: $2.50-3.00USD/pc
    Packaging Details: Standard packing
    Delivery Time: 3-7days after the order is confirmed
    Payment Terms: T/T, PAYPAL, WEST UNION
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    Model: MR-C1618W125-5MP Sensor Size: 1/2.5
    Resolution: 5.0MP Aperture: F2.0
    Focal Length: 16mm HFOV: 27°
    MOD: 0.2m BFL: 12.38mm

    16mm Lens cctv Lens M12 5Megapixel for HD Security IP Camera F2.0 1/2.5" 20Degree Angular View:



    Specification

    Model MR-C1618W125-5MP Mount M12*0.5
    Focal Length 16mm Resolution 5.0MP
    Sensor Size 1/2.5'' BFL 12.38mm
    Aperture F2.0 Dimension Φ14*18.4mm
    MOD 0.2m Weight 5.2g
    Angle of View

    27°

    EFL 8.38mm
    Application IP Cameras

    16mm Lens cctv Lens M12 5Megapixel for HD Security IP Camera F2.0 1/2.5" 20Degree Angular View



    Features:
    1. 16mm CCTV Camera lens, F2.0 mono-focal Lens, M12 mount Board focal lens.
    2. 1/2.5" Format High quality security lens, optical lens, IP AHD CVI Camera Lens
    3. 27 Degree of FOV security lens, IP Camera Lens
    4. 5.0MP Security Camera Lens, Surveillance Lens, 12.58mm BFL Lens

    5. High resolution lens could be used for above 5.0MP IP cameras, AHD Cameras,etc.



    Advantages and characteristics of lens:
    1. Day & Night
    With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
    2. Flat Image
    With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
    3. Multi Coating
    To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
    4. High resolution lens
    The pixels of high resolution lenses are 5.0 Megapixel, IR Cut and Lens Holder are available as per request.



    Our Service:

    1. Reply your enquiry in 24 working hours.

    2. 12 Months warranty for all Octavia products.

    3. Customized design is available. OEM are welcome.

    4. Experienced engineers can solve all your technical problems

    5. Goods will ship within 3 working days after received the verified payment.

    6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
