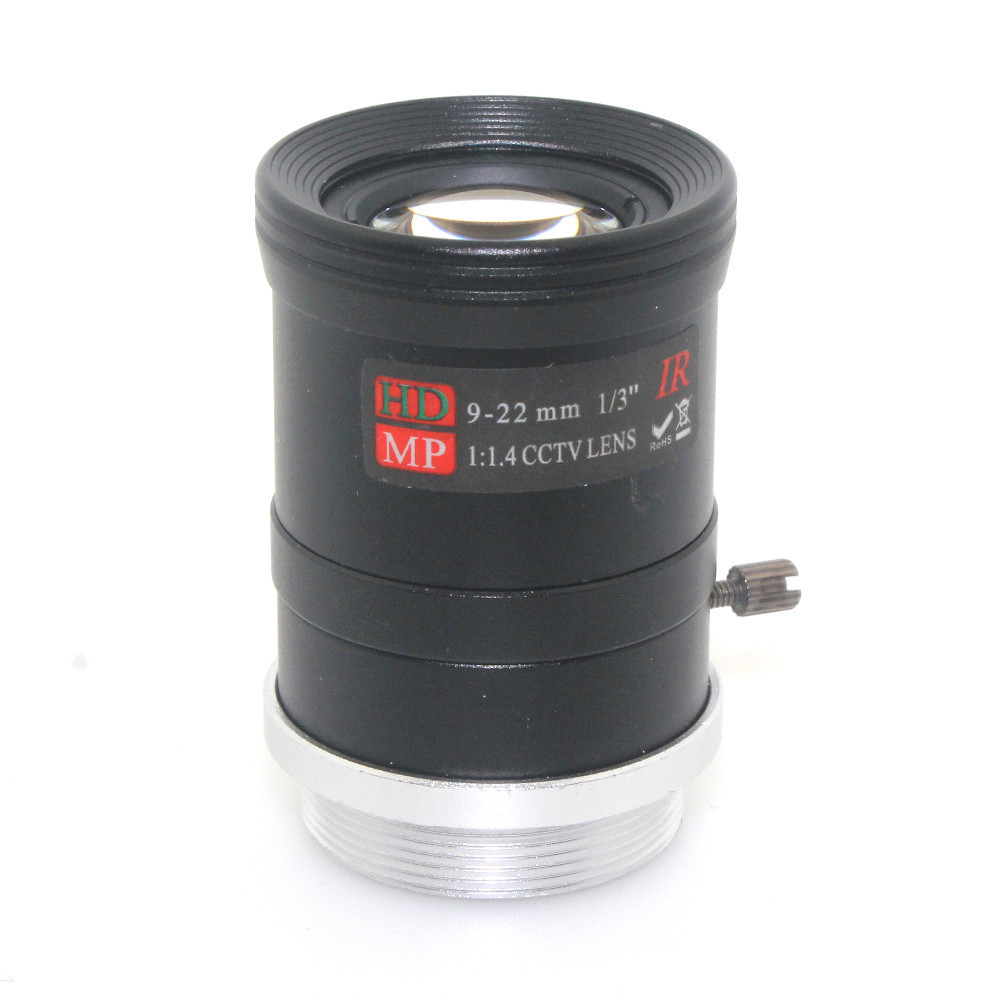

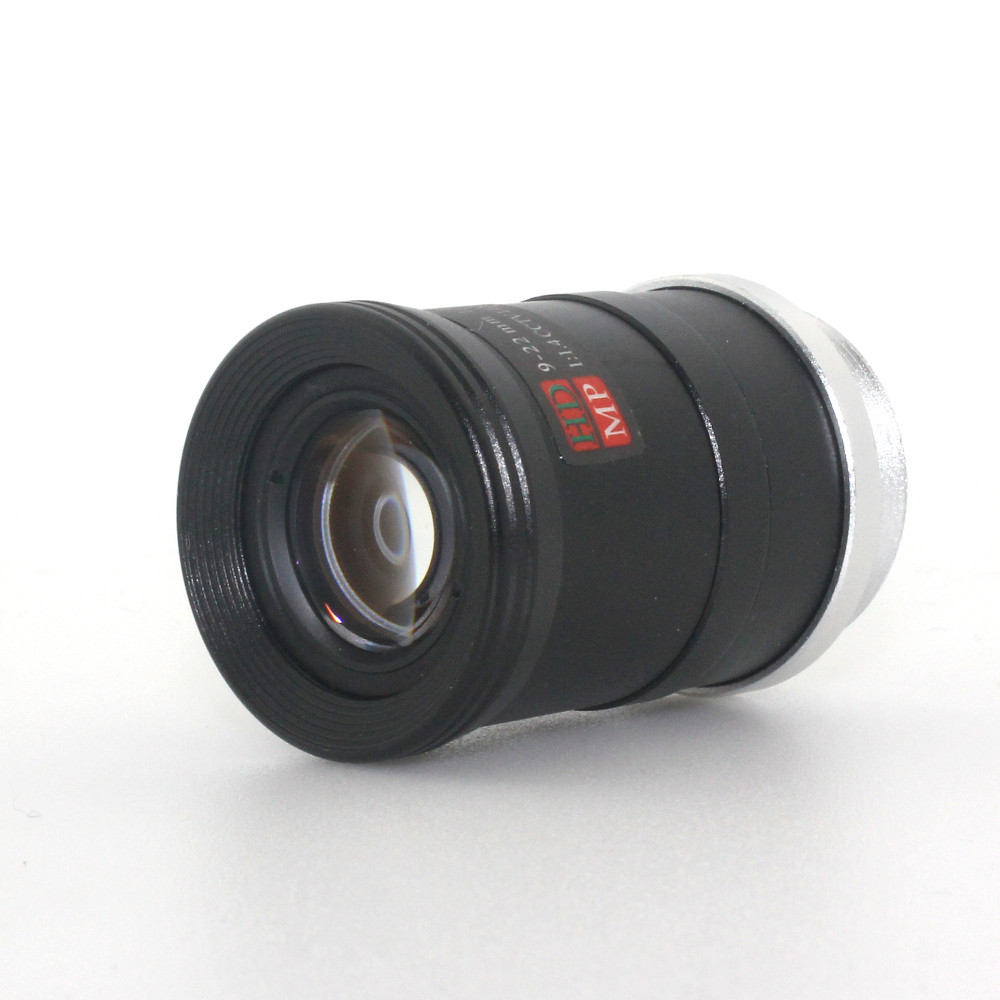

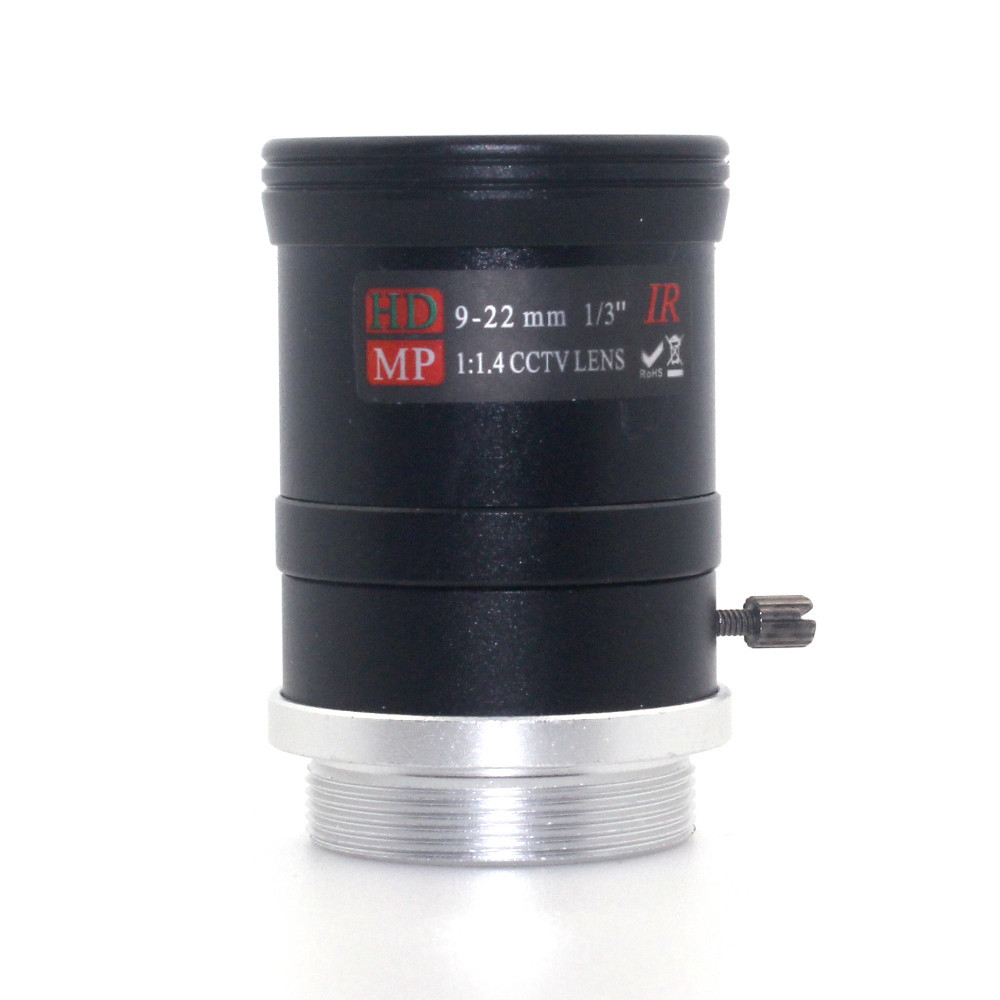

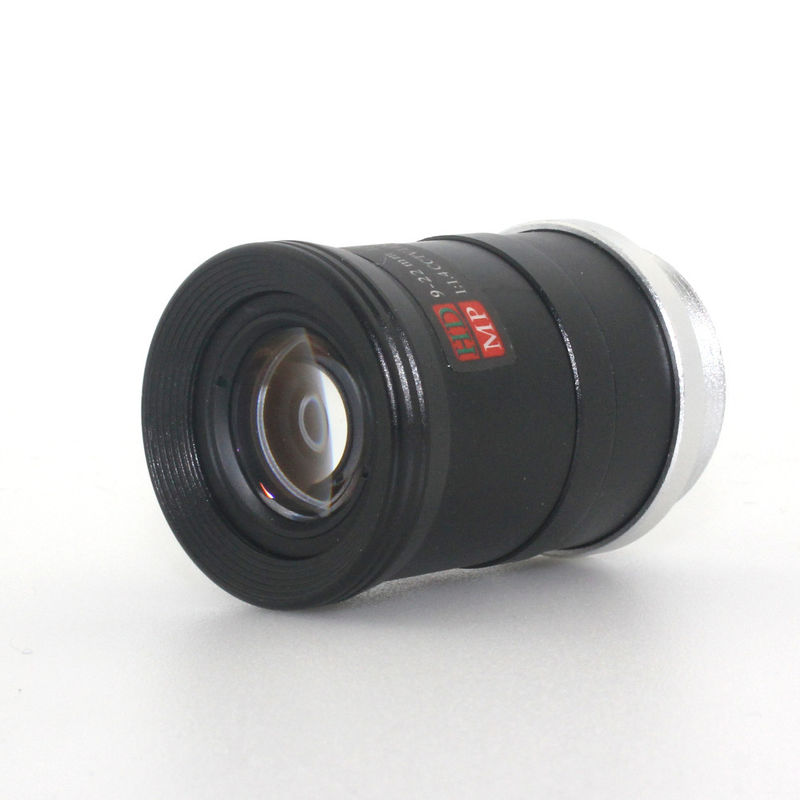

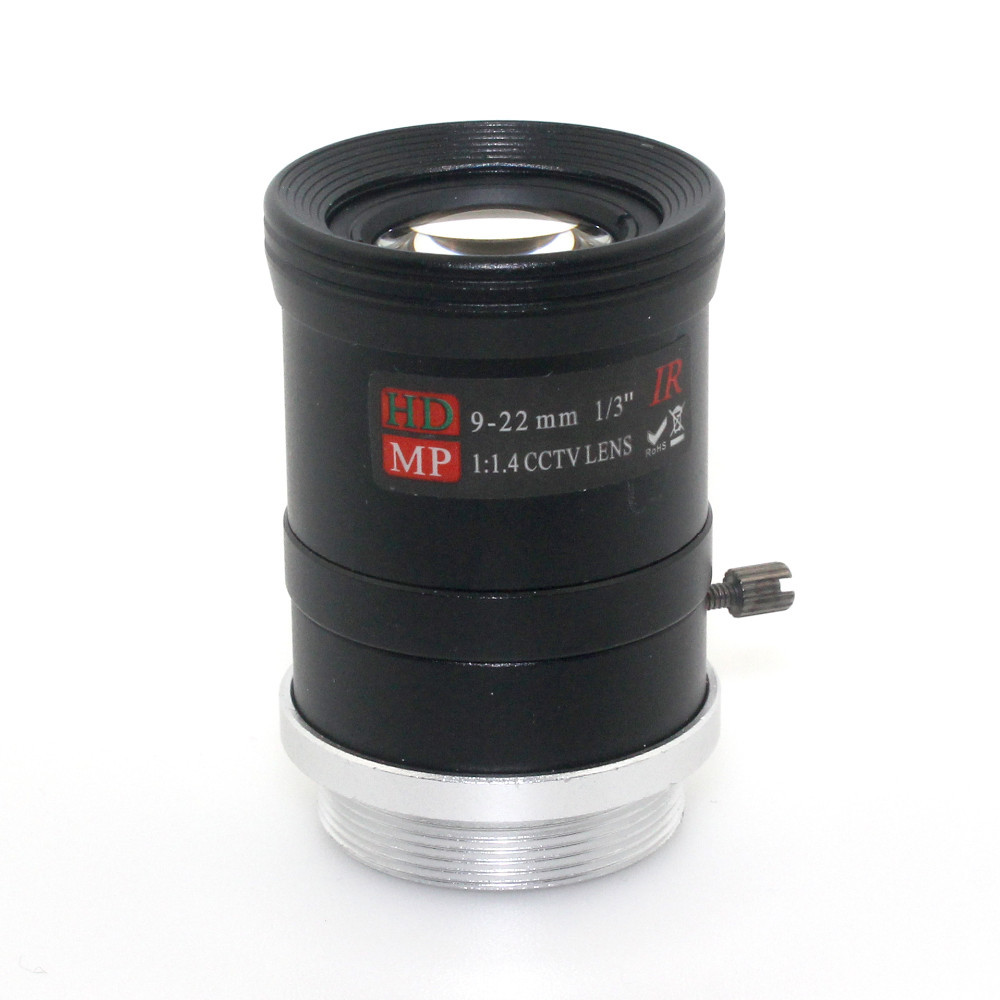

2.0MP 9-22mm 1/3" Varifocal Manual Iris IR lens CS for Surveillance CCD CCTV Camera

2.0MP 9-22mm 1/3" Varifocal Manual Iris IR lens CS for Surveillance CCD CCTV Camera

    • 2.0MP 9-22mm 1/3" Varifocal Manual Iris IR lens CS for Surveillance CCD CCTV Camera
    • 2.0MP 9-22mm 1/3" Varifocal Manual Iris IR lens CS for Surveillance CCD CCTV Camera
    • 2.0MP 9-22mm 1/3" Varifocal Manual Iris IR lens CS for Surveillance CCD CCTV Camera
    • 2.0MP 9-22mm 1/3" Varifocal Manual Iris IR lens CS for Surveillance CCD CCTV Camera
  • 2.0MP 9-22mm 1/3" Varifocal Manual Iris IR lens CS for Surveillance CCD CCTV Camera

    Product Details:

    Place of Origin: China
    Brand Name: Octavia
    Certification: CE, FCC
    Model Number: MR-C09022WV-2MP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: USD$11.90-12.80USD/pc
    Packaging Details: Standard packing
    Delivery Time: 5-8 days
    Payment Terms: T/T, Paypal, West Union,etc.
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    Megapixel: 2.0MP Image Size: 1/3''
    Focal Length: 9-22mm Aperture: F1.4
    Mount: CS Focus: Manual
    Zoom: Manual

    2.0MP 9-22mm 1/3" Varifocal Manual Iris IR lens CS for Surveillance CCD CCTV Camera



    Specification

    Model MR-C09022WV-2MP Mount CS
    Focal Length 9-22mm Resolution 2MP
    Sensor Size 1/3" Weight 50g
    Aperture F1.6 Dimension Φ36x70mm
    MOD 0.3m EFL 6.78mm
    Angle of View 103°-25° Construction 6G7P
    Application Vari-focus Lens for HD Camera



    Features:
    1.
    9-22mm 1/3" Varifocal Manual Iris IR lens CS for Surveillance CCD CCTV Camera.
    2. 1/3" Format High quality cctv camera lens, optical cs mount vari-focal Lens
    3. F1.6 Aperture focal length, field of view
    103°-25° Degree CCTV lens
    4. 2.0 Megapixel Lens for CCTV camera, Surveillance HD Security Lens



    Advantages and characteristics of lens:
    1. Day & Night
    With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
    2. Flat Image
    With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
    3. Multi Coating
    To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
    4. High resolution lens
    The pixels of high resolution lenses are beyond 2.0 Megapixel, IR Cut and Lens Holder are available as per request.





     10mm pinhole mini Lens Megapixel HD camera Board M12 lens for CCTV Security Camera

     10mm pinhole mini Lens Megapixel HD camera Board M12 lens for CCTV Security Camera



    Supply Ability:10000 pcs per month



    Packaging & Delivery



    25 pcs lens / bag

    500 pcs lens / carton

    Or as your request



    2.0MP 9-22mm 1/3" Varifocal Manual Iris IR lens CS for Surveillance CCD CCTV Camera



    Logistic Methods

    1.Shipping ways: The company arranges to ship the goods via the Forwarder Express here in default. (logistic methods are optional as request) The freight cost should be charged by the Customers. It is ok to ship by Collection Account.
    2. Samples shipping: If for the samples, it could return the sample fees after first bulk order to the customers.

    2.0MP 9-22mm 1/3" Varifocal Manual Iris IR lens CS for Surveillance CCD CCTV Camera

    3. Item Processing Time: The processing time for a specific order varies with the product type and stock status. Mostly, processing time can be 3 to 15 working days.
