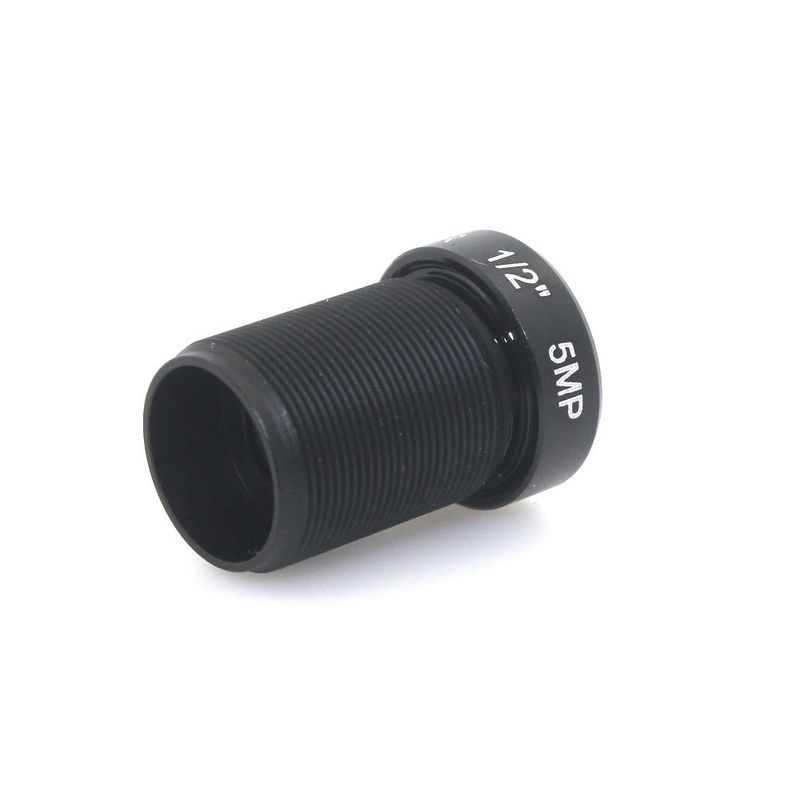

25mm Focal Length M12 CCTV Camera Lens 1/2" F2.4 Long Viewing Distance 50m

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C2520W12-5MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model: MR-C2520W12-5MP Mount: M12*0.5
Resolution: 5.0Megapixel Focal Length: 25mm
Image Format: 1/2″ Aperture: F2.0
Field Angle(1/3%22): 18.8°*15.04°*11.28° BFL: 11.5mm
High Light:

security camera lens

,

ip camera lens

HD 5.0Megapixel 25mm M12 CCTV Lens 1/2" For HD CCTV Camera Lens ip camera lens F2.4 Long Viewing Distance Upto 50m:



Features:
1. 25mm F2.0 mono-focal Lens, CCTV AHD Camera lens, M12 mount lens.
2. 1/2" Format High quality cctv camera lens, optical lens , Metal board Lens
3. 18.8 Degree of DFOV security lens, F2.0 aperture MTV Lens, Fixed iris Lens.
4. This high resolution cctv lens is for 5.0 mega pixel cameras,IP camera & High resolution camera.



Specification
Model MR-C2520W12-5MP Mount M12*0.5
Focal Length 25mm Optical BFL 11.5mm
Sensor Size 1/2'' MBF 6.1mm
Aperture F2.0 Dimension Φ14*19.9mm
MOD 0.3m Operating Temperature -20°C -- +60°C
Angle of View 18.8°*15.04°*11.28° Weight 5g
Application IP AHD Cameras





Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.





HD 5.0Megapixel 25mm M12 CCTV Lens 1/2" For HD CCTV Camera Lens ip camera lens F2.4 Long Viewing Distance Upto 50m
