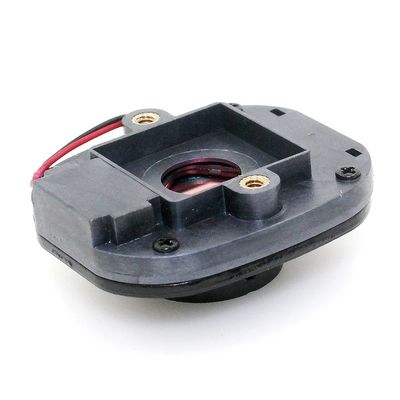

Full HD CCTV Camera IR CUT Filter Electromagnetic Structure Corrects Daytime Polarization

Full HD CCTV Camera IR CUT Filter Electromagnetic Structure Corrects Daytime Polarization

    • Full HD CCTV Camera IR CUT Filter Electromagnetic Structure Corrects Daytime Polarization
    • Full HD CCTV Camera IR CUT Filter Electromagnetic Structure Corrects Daytime Polarization
    • Full HD CCTV Camera IR CUT Filter Electromagnetic Structure Corrects Daytime Polarization
    • Full HD CCTV Camera IR CUT Filter Electromagnetic Structure Corrects Daytime Polarization
  • Full HD CCTV Camera IR CUT Filter Electromagnetic Structure Corrects Daytime Polarization

    Product Details:

    Place of Origin: China
    Brand Name: Octavia
    Certification: CE, FCC, RoHS
    Model Number: MR-CM12IRW-3MP-MI-SL

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
    Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
    Payment Terms: T/T, L/C, PAYPAL, WEST UNION
    Supply Ability: 1000000pcs/month
    Contact Now
    Detailed Product Description
    Model: MR-CM12IRW-3MP-MT Product Material: Metal
    Control Voltage: 3-8V Coil Resistace: 40±5%Ω
    Driving Time: <100ms Filter Thickness: 0.145mm, 0.21mm, 0.3mm Optional
    Filter Coating: Filter Coating With IR Film And AR Film Switching Life: 500 Thousand Times
    Adapter Lens: M12 Mount Lens Fixed Hole Spacing: 20mm
    Assembly Exterior: 25*25*12.4 IR Filter Glass Size: 7.0mm×6.5mm×0.21mm
    Drive Angle: 69°±1.5°
    High Light:

    infrared cut filter

    ,

    mechanical ir cut filter

    Metal IR CUT filter M12 lens Mount double filter switcher for Full HD CCTV Camera Mount



    Performance parameters

    This product is suitable for network cameras, millions of HD cameras, infrared cameras, bolts and other cameras, let it cut off
    Or through, the name is: dual filter switcher
    The main role and function:
    Corrects daytime polarization problems and improves nighttime brightness
    working principle:
    IR-CUT Dual Filter Switcher consists of: One IR Cut Filter and One Fully Permeable Filter + Electromagnetic Structure

    1. Product material: lower cover PC + lens mount PC Metal
    2. Coil impedance: 40±5%Ω (at room temperature 25°C)
    3. Drive voltage: Operating voltage: 3V~8V
    Drive pulse signal time: 100ms
    4. Inductance: 430uH±5%
    5. Actuation direction, posture: the red wire is connected to the positive voltage, the black wire is connected to the negative voltage, and the product is switched to the infrared cut filter
    Light film (used during the day), on the contrary, the product is switched to the white film (night use) direction, posture: side, front, back (all-round test does not move, incomplete, interference can not)
    6. Checker IR-CUT test board/set voltage: 4V/set drive pulse signal time: 100ms±10ms
    7. Actuation mode Adopt DC voltage circuit to control magnetic rotary magnetic valve
    8. Static energy retention Product retains power even when no power is applied
    9. Normal temperature and humidity standard Temperature: +25°C±5°C, humidity 65%±20%
    10. Magnetic induction 1000Gs ± 10%, temperature 120 °C ± 5 °C
    11. Terminal White, 2Pin*1.25mm, Insertion Force 0.5Kg

    Package: 1PCS IR CUT



    IR CUT Function:
    1. Fixed daytime color cast problems, enhancing the brightness at night.
    IR-CUT filter switch automatically according to external light along with the strength of automatic switching,
    making the image to achieve the best results. That is, during the day or night,
    the dual filter can automatically switch filters, therefore, whether in the next day or night,
    can get the best imaging results.
    2. According to the instruction automatic switch infrared cut-off and the full spectrum glass,
    day and night switch, automatic positioning,
    in order to achieve infrared end filter work during the day time,
    sunshine is vivid, restore the true color. Full spectrum glass work at night,
    and increase low illumination, night vision is very clear.
    3. Use on the camera board, to modify the problem of partial color, out of focus,
    let video images do not lose focus, unbiased color and excellent resolution.
    4. To filter the hard light to make the picture color soft, to accieve human eyes visual color.





    Metal IR CUT filter M12 lens Mount double filter switcher for Full HD CCTV Camera Mount



    HD IR-cut infrared cut CS lens Mount Double Filter for HD CCTV IP Camera, Metal and Plastic optional, 20mm hole spacing

                      With IR CUT                                     Without IR CUT

    HD IR-cut infrared cut CS lens Mount Double Filter for HD CCTV IP Camera, Metal and Plastic optional, 20mm hole spacing

                          With IR CUT                                 Without IR CUT
