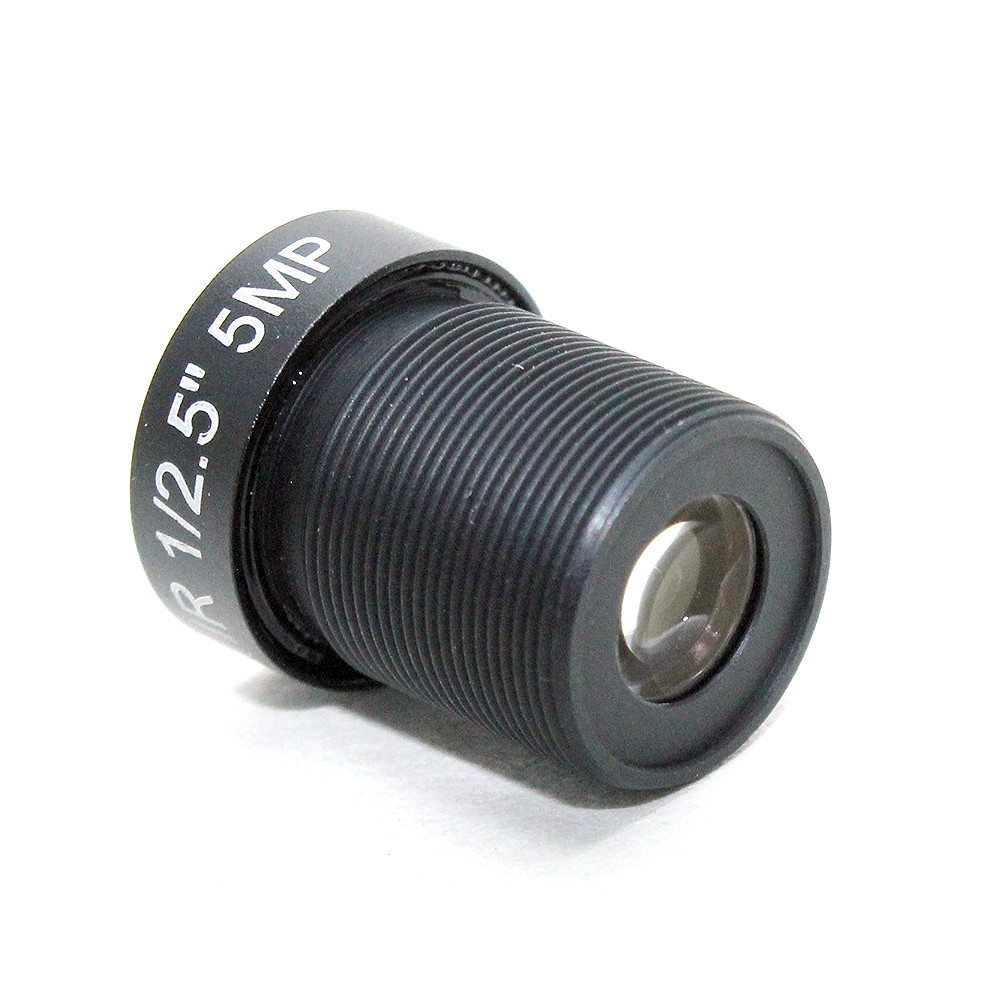

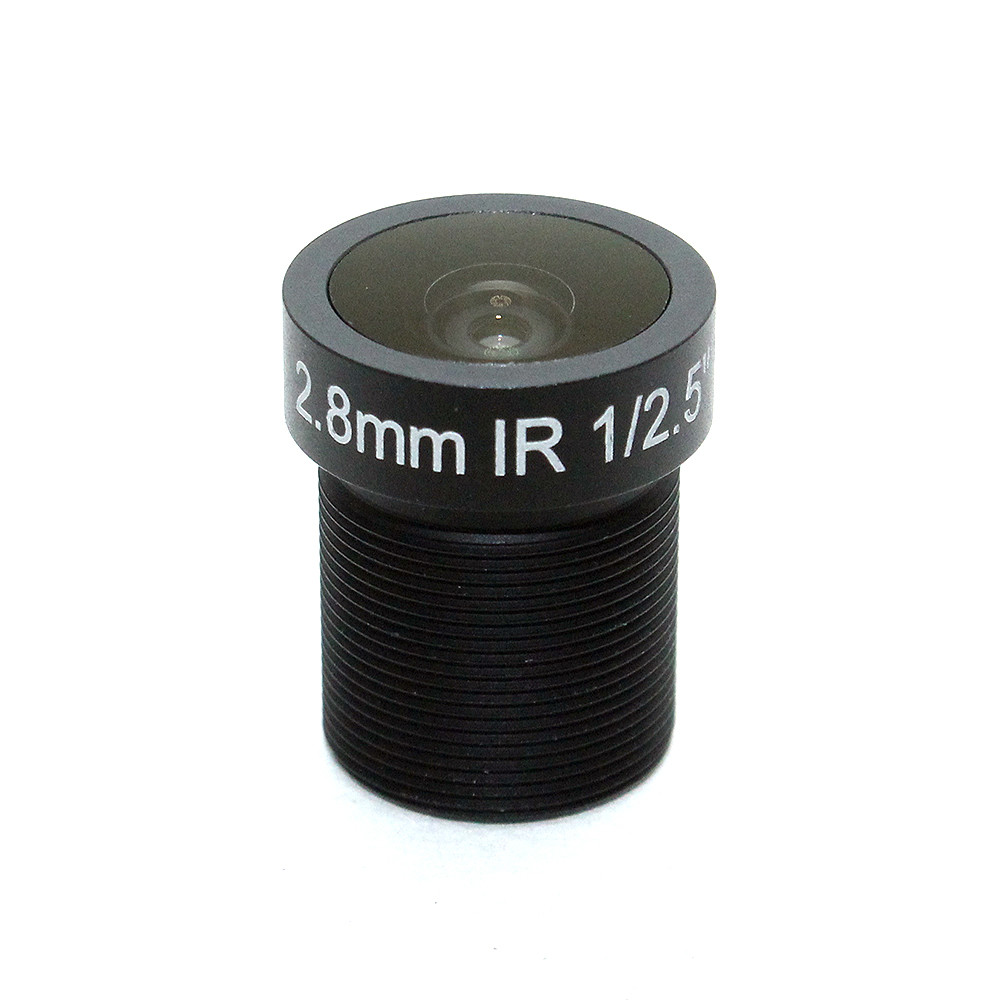

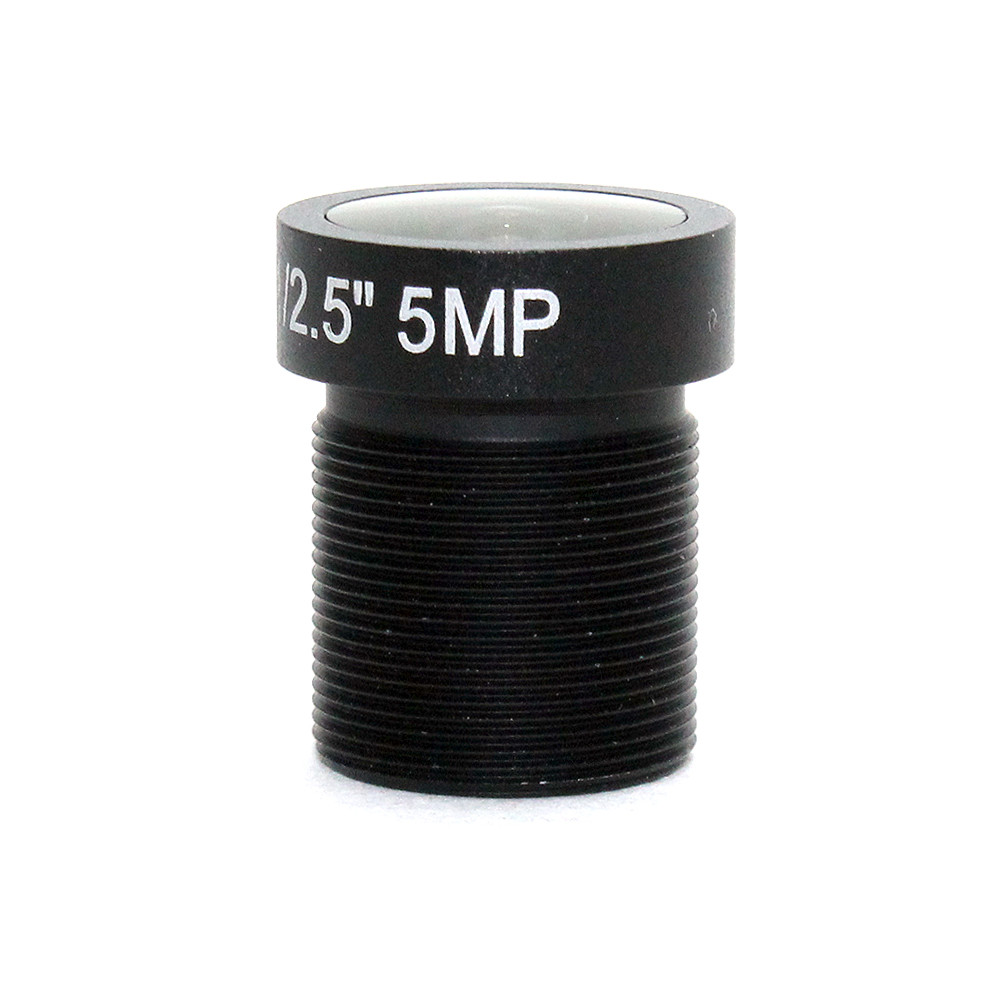

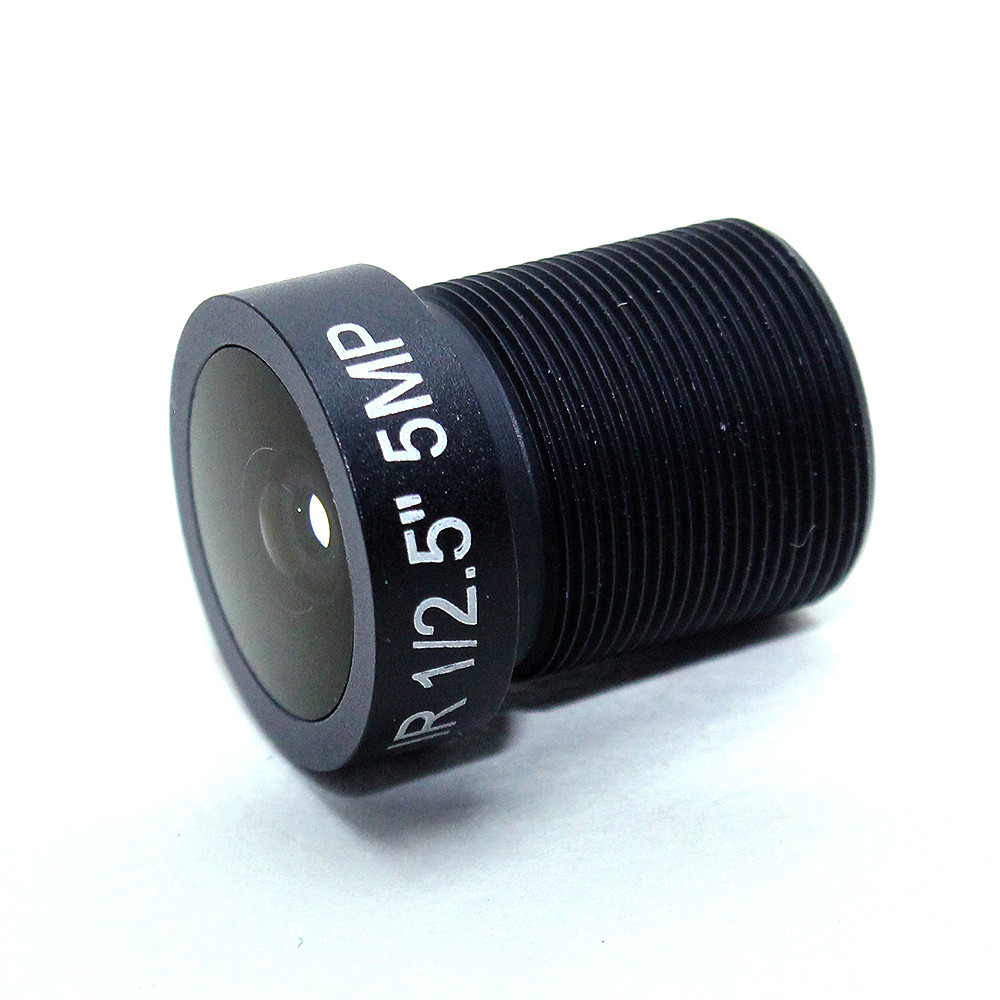

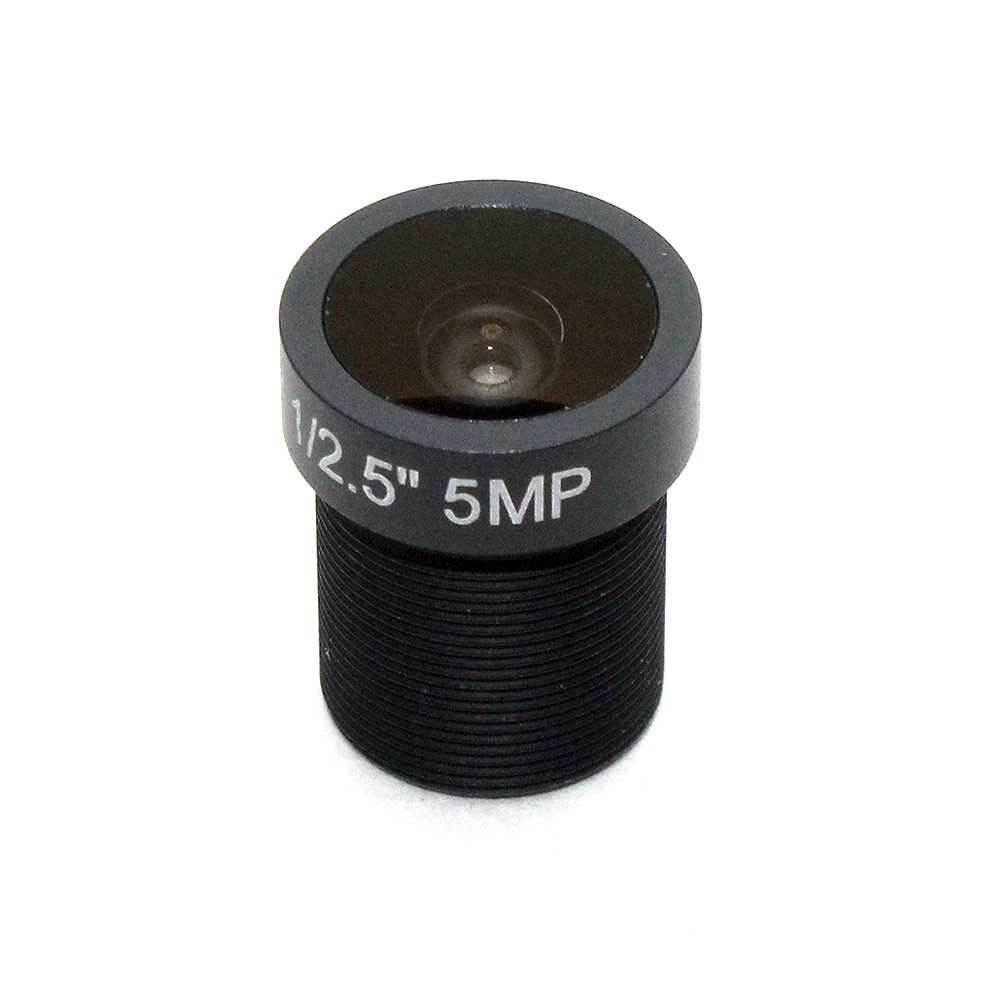

5.0Megpixel M12 MTV 2.8mm 5MP HD CCTV Camera Lens IR HD Security Camera Lens Fixed Iris

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C02820W125-5MP
Minimum Order Quantity: 100pcs
Price: $3.8-4.6USD/pc
Packaging Details: Standard packing
Delivery Time: 3-7days after the order is confirmed
Payment Terms: T/T, PAYPAL, WEST UNION
Supply Ability: 100000pcs/month
Model: MR-C02820W125-5MP Sensor Size: 1/2.5''
Mount: M12*0.5 Aperture: F2.0
Focal Length: 2.8mm HFOV: 156°*114°*80°(1/2.5'')
Reoslution: 5MP MOD: 0.2m
BFL: 5.0mm TTL: 21.5mm
Dimension: 14*16.8mm

5.0Megpixel M12 MTV 2.8mm 5MP HD CCTV Camera Lens IR HD Security Camera Lens Fixed Iris:





Specification

Model MR-C02820W125-5MP Mount M12*0.5
Focal Length 2.8mm Resolution 5.0MP
Sensor Size 1/2.5'' BFL 5.0mm
Aperture F2.0 TTL 21.5mm
MOD 20cm Dimension 14*16.8mm
Angle of View

156°*114°*80°(1/2.5'')

Weight 7g
Distortion 35%





Features:
1. 5.0 megapixel HD lens,2.8mm F2.0 board MTV Lens, fixed iris manual focus lens.
2. 1/2.5" Format High quality manual iris cctv lens, optical cctv lens ,M12 Mount Lens
3. 2.8mm focal length 156 Degree of DFOV security lens
4. Wide angle fisheye Lens for box camera,Surveillance Lens, Mini Dome Camera Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 5.0 Megapixel,
IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
