| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Octavia |
| Certification: | CE, FCC, RoHS |
| Model Number: | MR-C0618W125-5MP-1 |
| Minimum Order Quantity: | 100pcs |
| Price: | $4.00-5.00USD/pc |
| Packaging Details: | Standard packing |
| Delivery Time: | 3-7days after the order is confirmed |
| Payment Terms: | T/T, PAYPAL, WEST UNION |
| Supply Ability: | 100000pcs/month |
| Model: | MR-C0618W125-5MP-1 | Sensor Size: | 1/2.5 |
|---|---|---|---|
| Resolution: | 5.0MP | Aperture: | F2.0 |
| Focal Length: | 6mm | HFOV: | 67°*53.6°*49.2° |
| MOD: | 0.3m | BFL: | 7.3mm |

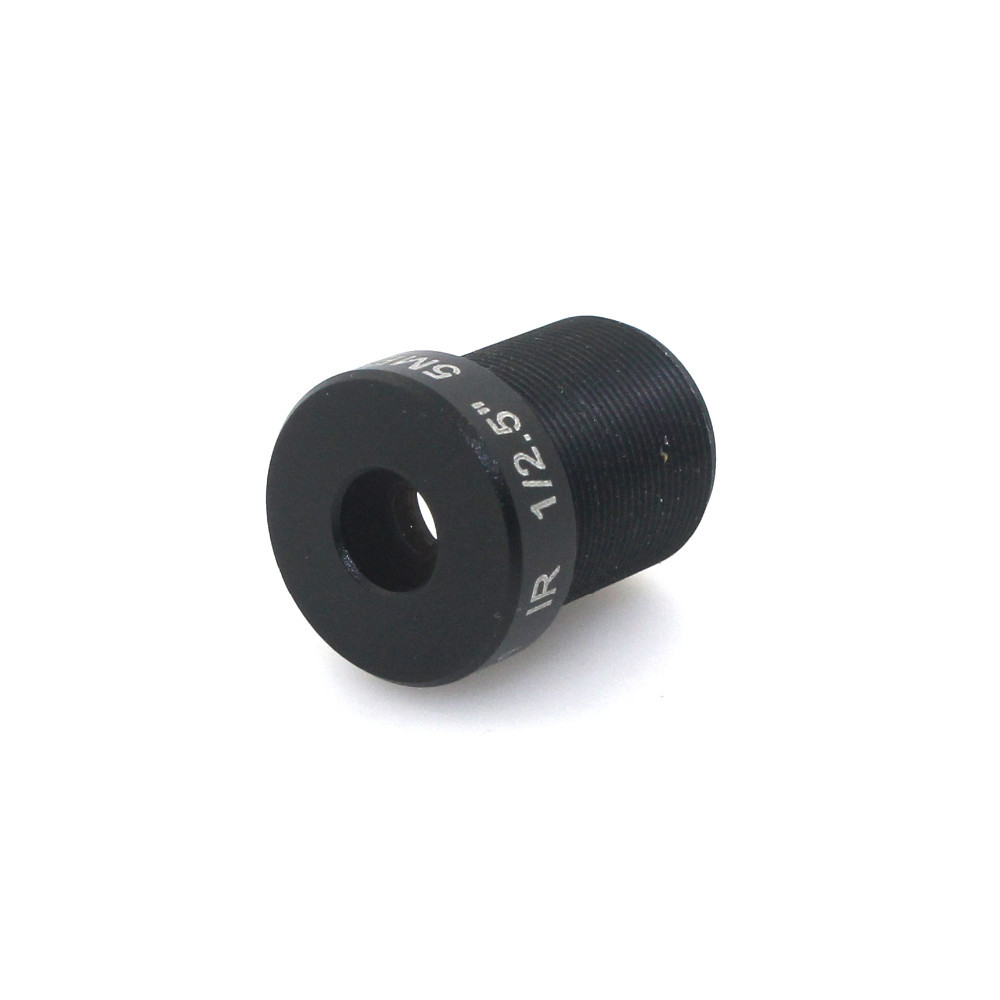

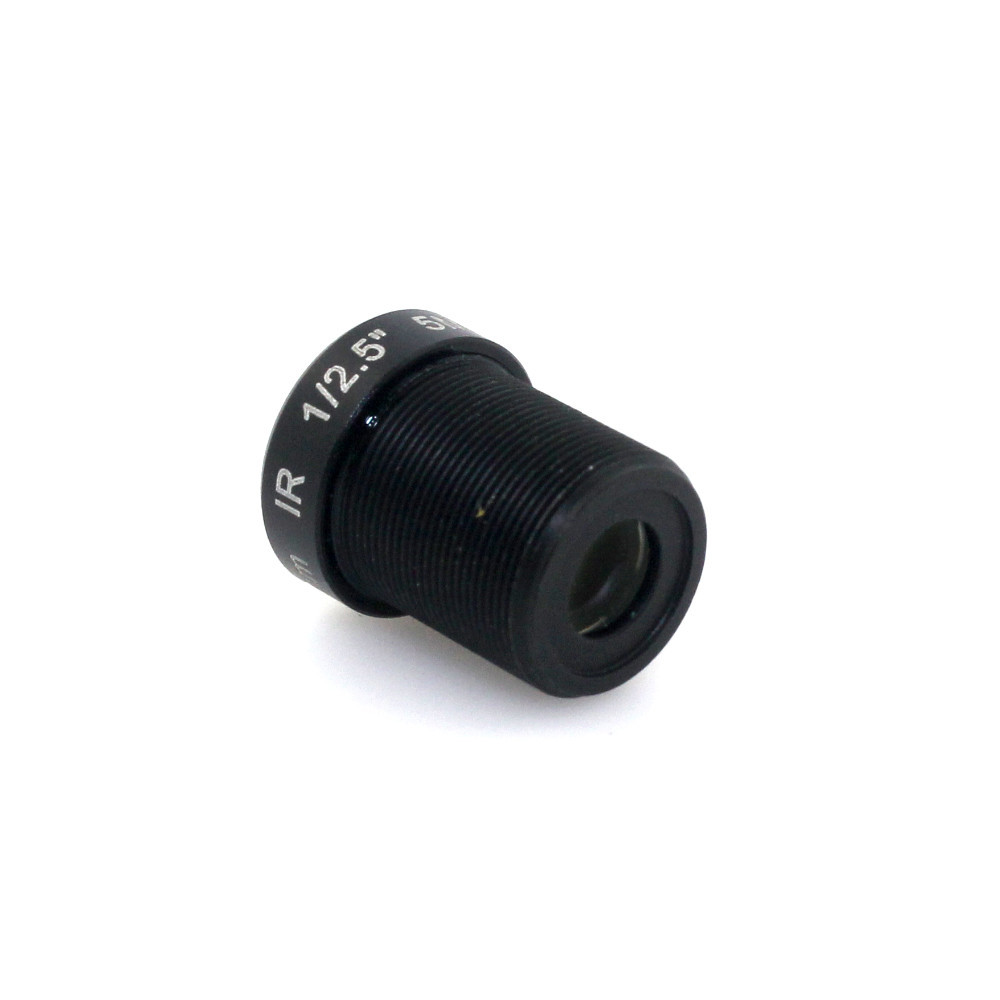

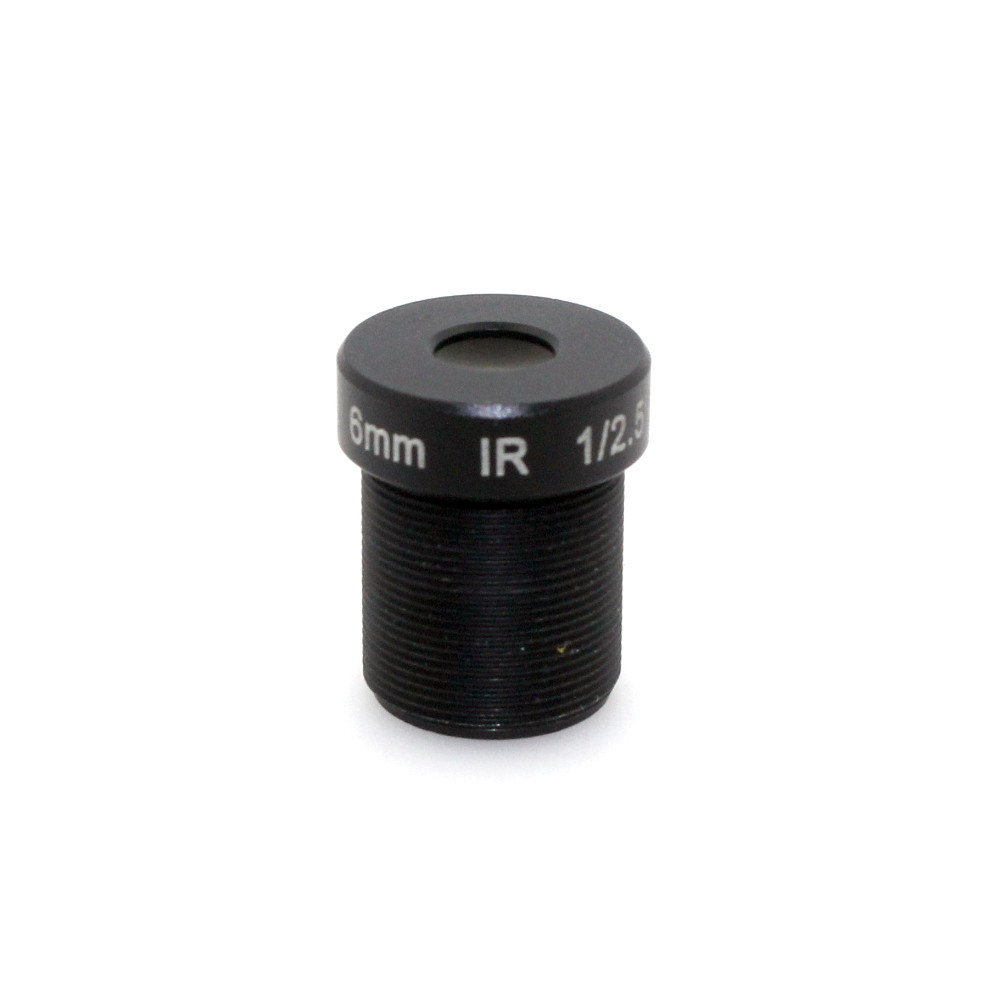

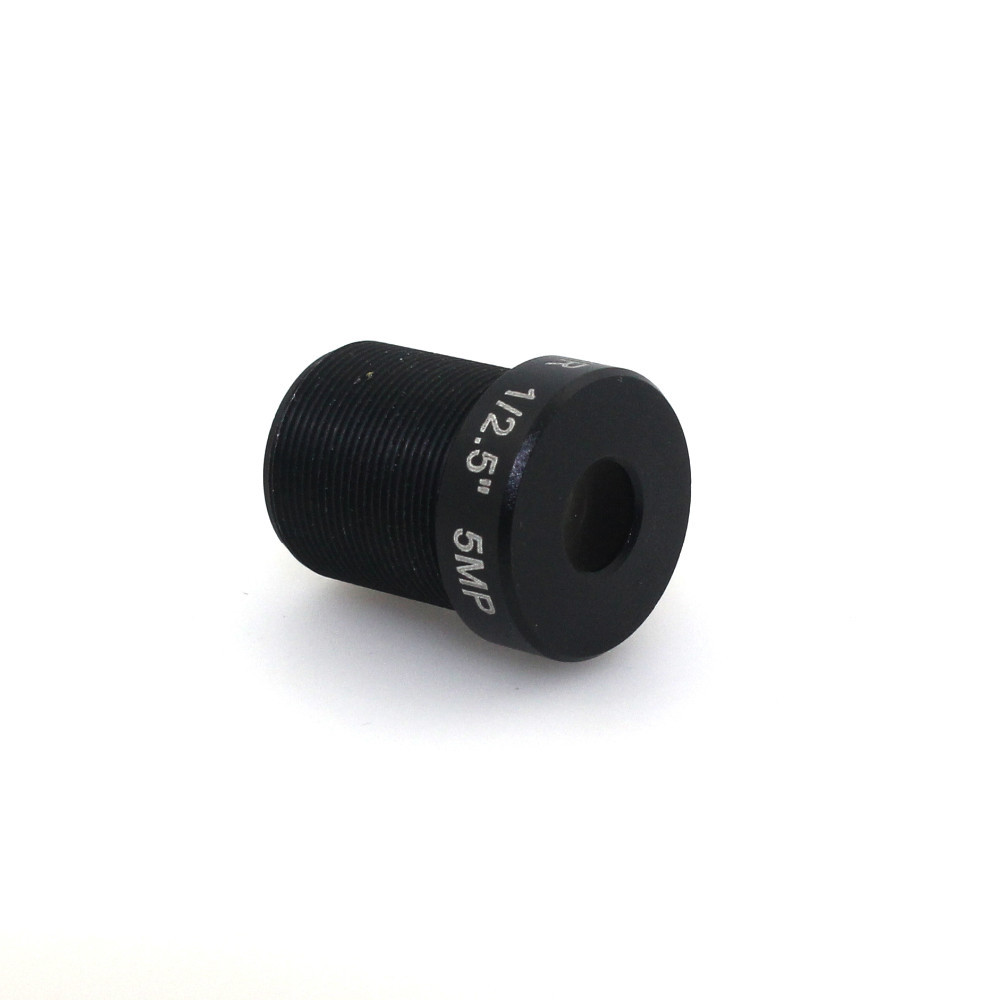

5.0MP 6mm IR board lens M12 F2.0 For 720P/1080P/IP camera or AHD/CVI/CCTV Camera,suitable for 1/2.5" CCD&CMOS chipsets:
| Model | MR-C0618W125-5MP-1 | Mount | M12*0.5 |
| Focal Length | 6mm | Resolution | 5.0MP |
| Sensor Size | 1/2.5'' | BFL | 7.3mm |
| Aperture | F2.0 | Dimension | Φ14*16.8mm |
| MOD | 0.3m | Weight | 6g |
| Angle of View |
67°*53.6°*49.2° |
MBF | 6.7mm |
| Remark | Metal Lens | ||
Features:
1. 8mm m12 Camera lens, F2.0 mono-focal Lens, MTV Board focal lens.
2. 1/2.5" Format High quality cctv camera lens for CCD&CMOS chipsets
3. 67 Degree of DFOV security lens for AHD/CVI/CCTV Camera
4. 5.0MP 6mm IR board lens M12 F2.0 For 720P/1080P/IP camera
5. High resolution lens could be used for above 5.0MP IP camera, AHD Camera,
Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are 5.0 Megapixel, IR Cut and Lens Holder are available as per request.
Our Service:
1. Reply your enquiry in 24 working hours.
2. 12 Months warranty for all Octavia products.
3. Customized design is available. OEM are welcome.
4. Experienced engineers can solve all your technical problems
5. Goods will ship within 3 working days after received the verified payment.
6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
Tag: IR Board M12 Lens
