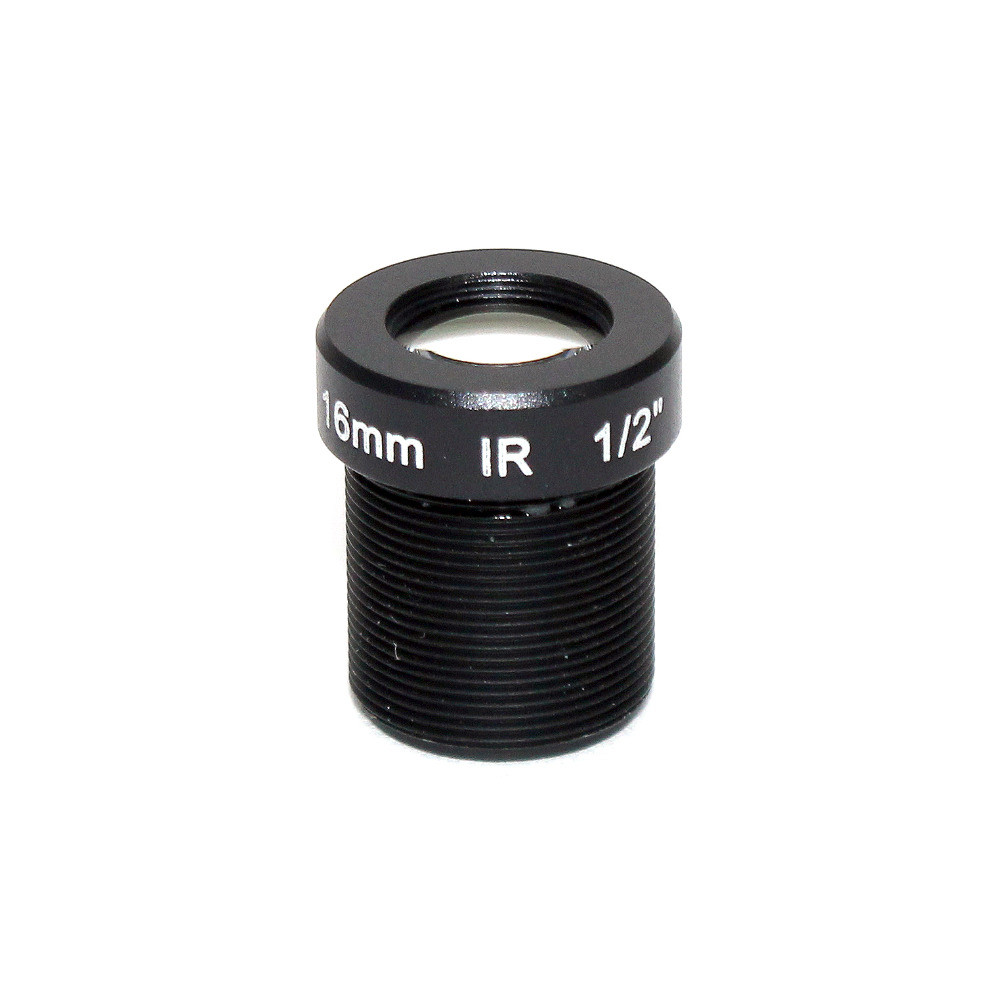

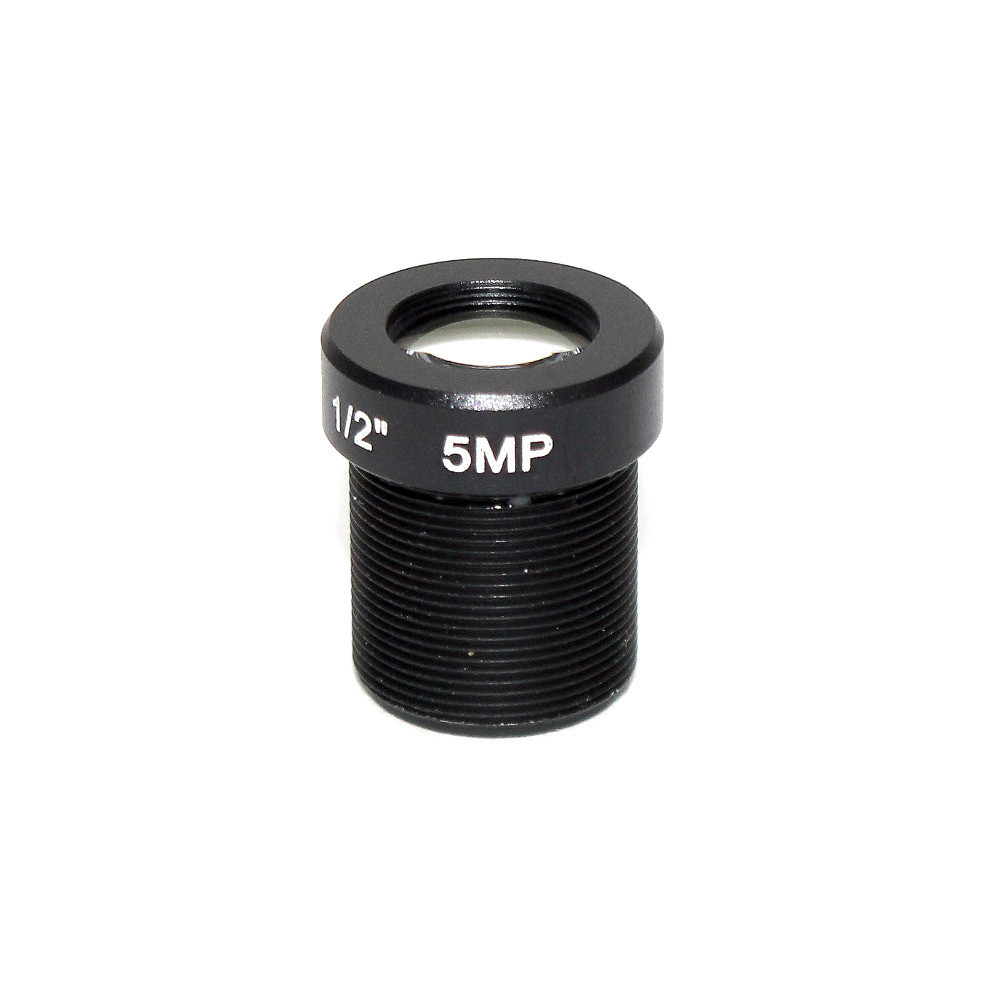

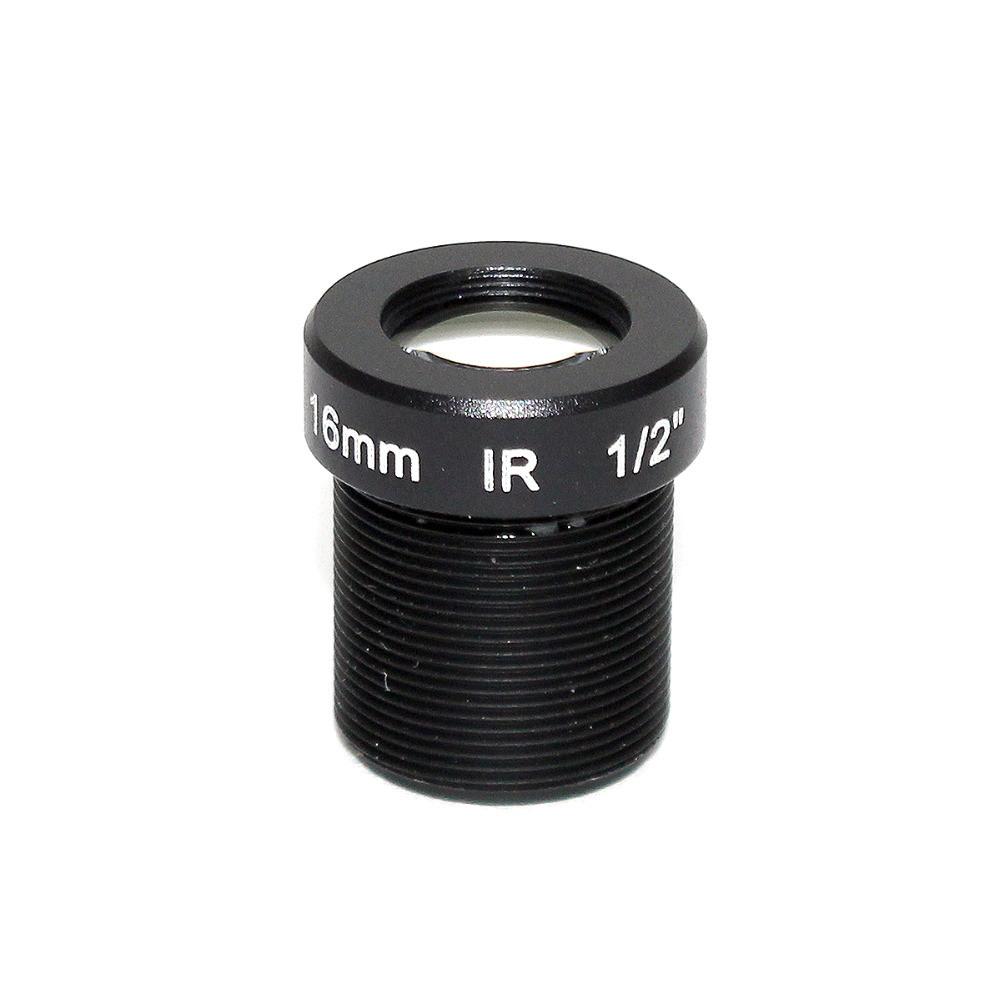

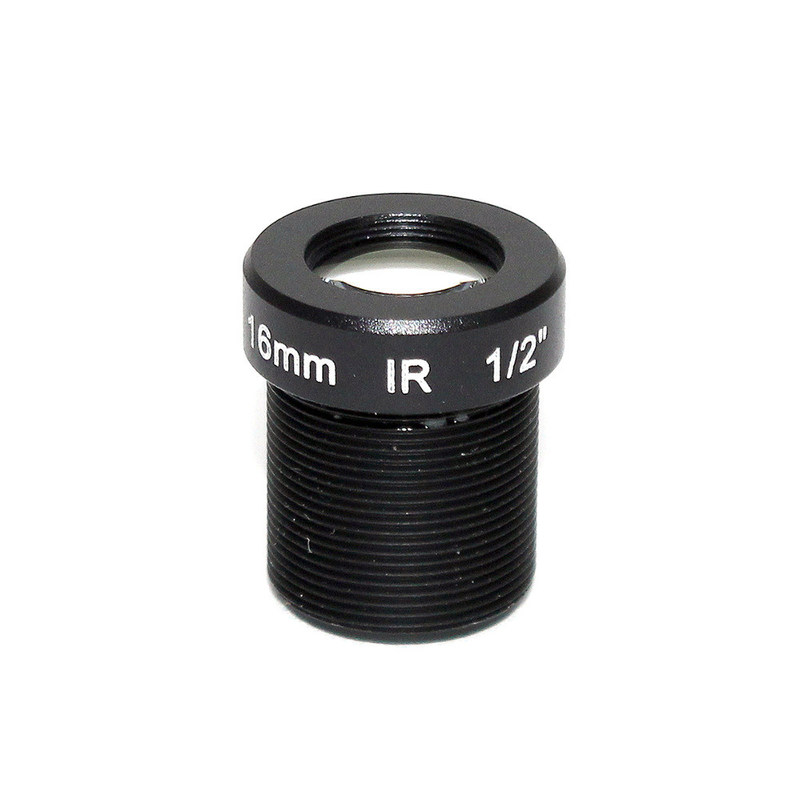

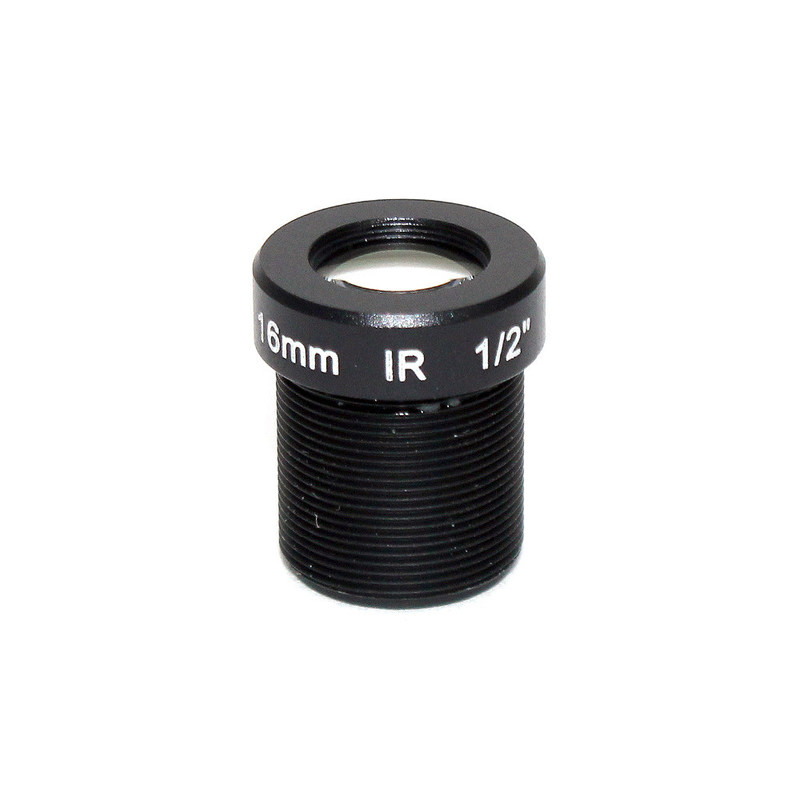

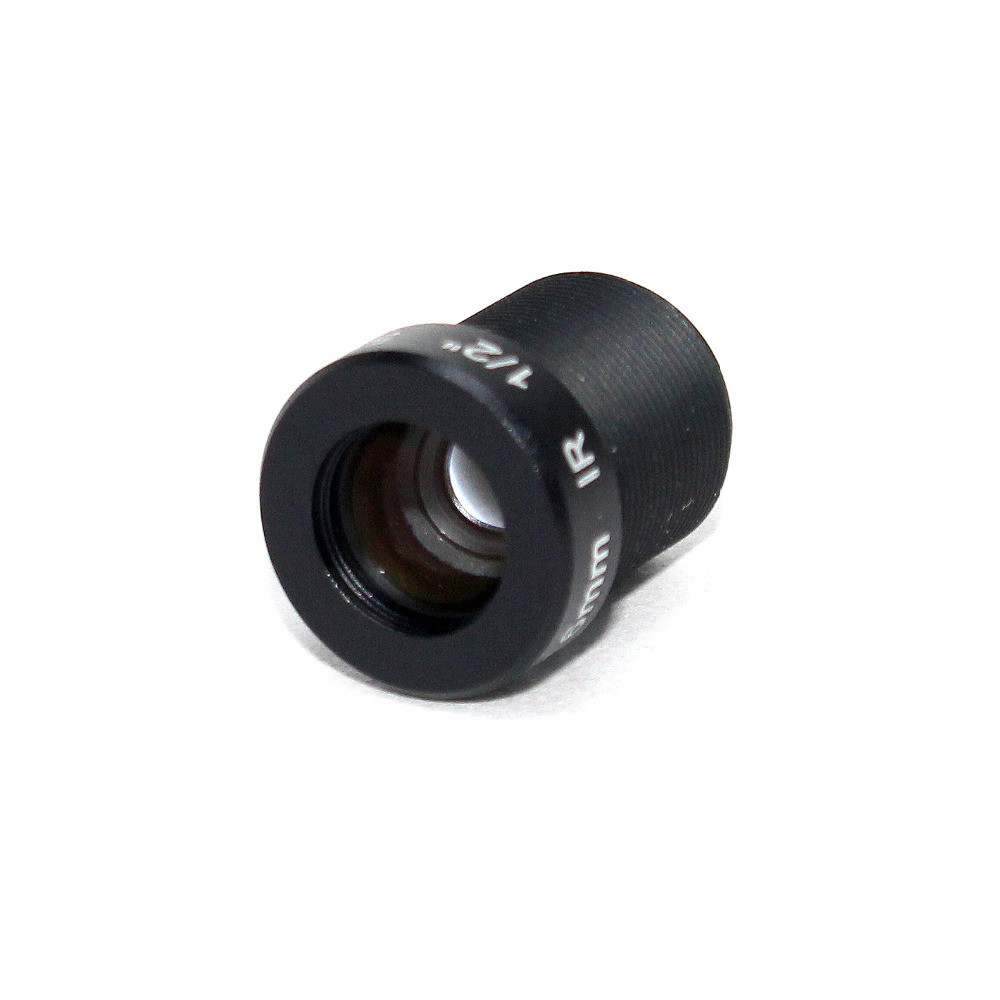

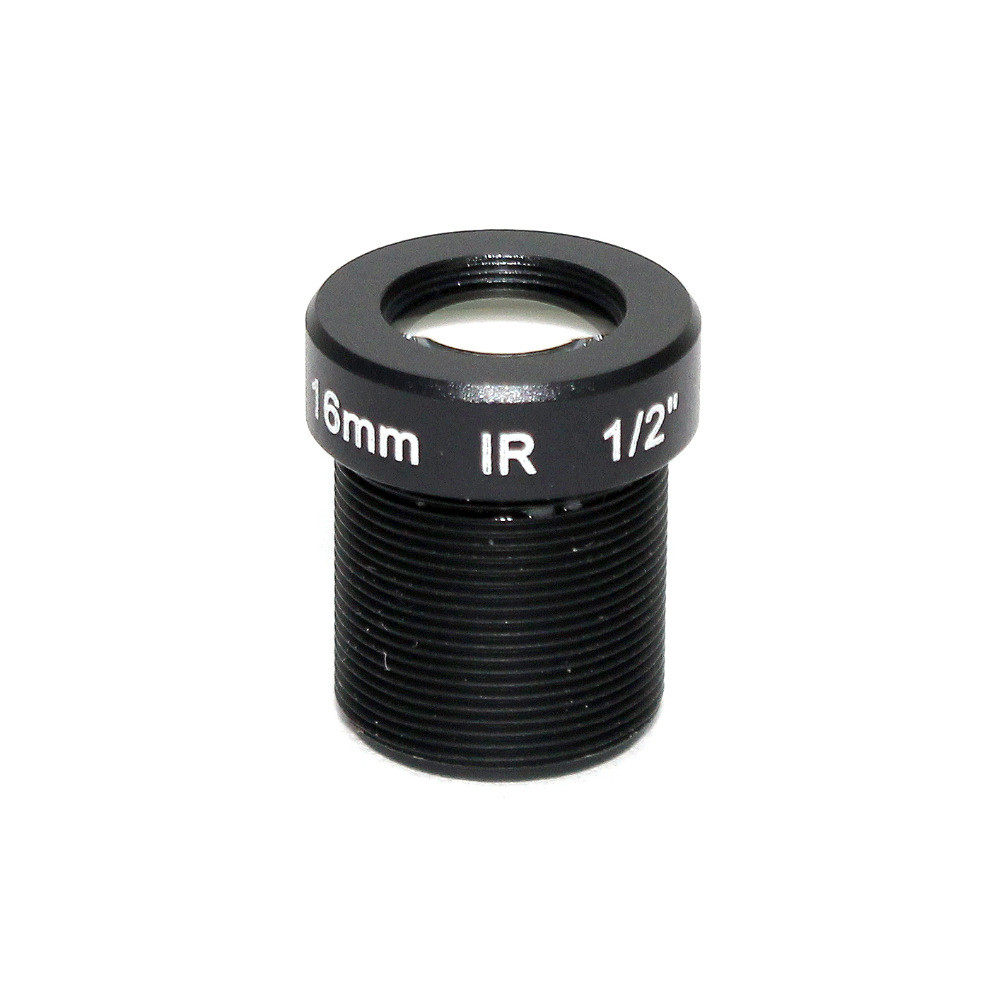

HD 5.0Megapixel 16mm CCTV Lens M12 IP Camera Lens F2.0 M12*P0.5 Fixed Iris 1/2" Image Format 96Degree Viewing Angle

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C1618W12-5MP-1
Minimum Order Quantity: 100pcs
Price: $4.50-5.50USD/pc
Packaging Details: Standard packing
Delivery Time: 3-7days after the order is confirmed
Payment Terms: T/T, PAYPAL, WEST UNION
Supply Ability: 100000pcs/month
Model: MR-C1618W12-5MP-1 Sensor Size: 1/2
Resolution: 5.0MP Aperture: F2.0
Focal Length: 16mm HFOV: 120°×96°×72°
MOD: 0.3m BFL: 7.1mm

HD 5.0Megapixel 16mm CCTV Lens M12 IP Camera Lens F2.0 M12*P0.5 Fixed Iris 1/2" Image Format 96Degree Viewing Angle:



Specification

Model MR-C1618W12-5MP-1 Mount M12*0.5
Focal Length 16mm Resolution 5.0MP
Sensor Size 1/2'' BFL 7.1mm
Aperture F2.0 Dimension Φ14*16.2mm
MOD 0.2m Weight 5.0g
Angle of View

120°×96°×72°

MBF 6.3mm
Application IP Cameras

HD 5.0Megapixel 16mm CCTV Lens M12 IP Camera Lens F2.0 M12*P0.5 Fixed Iris 1/2" Image Format 96Degree Viewing Angle



Features:
1. 16mm CCTV Camera lens, F2.0 mono-focal Lens, M12 mount Board focal lens.
2. 1/2" Format High quality security lens, optical lens, IP AHD CVI Camera Lens
3. 120 Degree of dFOV security lens, IP Camera Lens
4. 5.0MP Security Camera Lens, Surveillance Lens, 7.1mm BFL Lens

5. High resolution lens could be used for above 5.0MP IP cameras, AHD Cameras,etc.



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are 5.0 Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.



Tag: M12 IP Camera Lens
