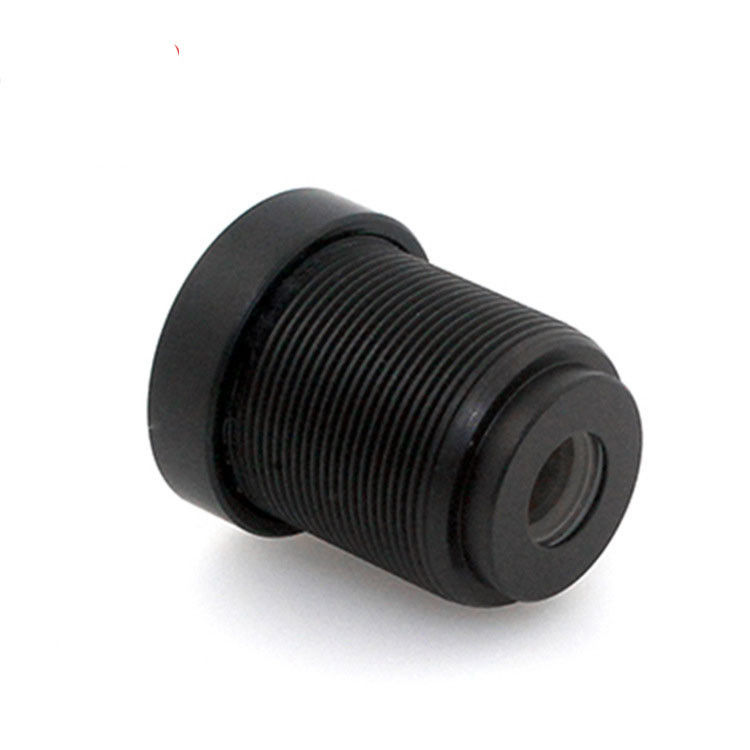

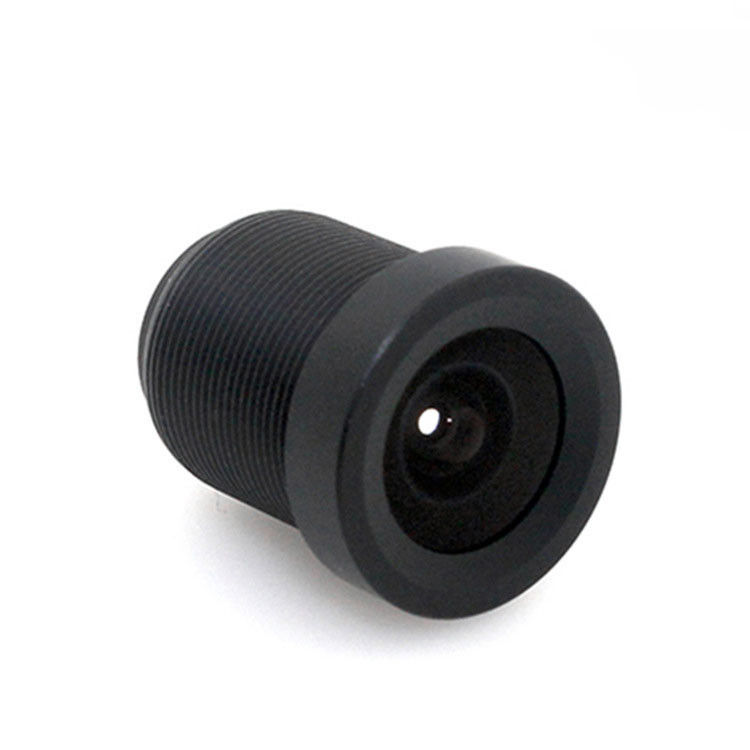

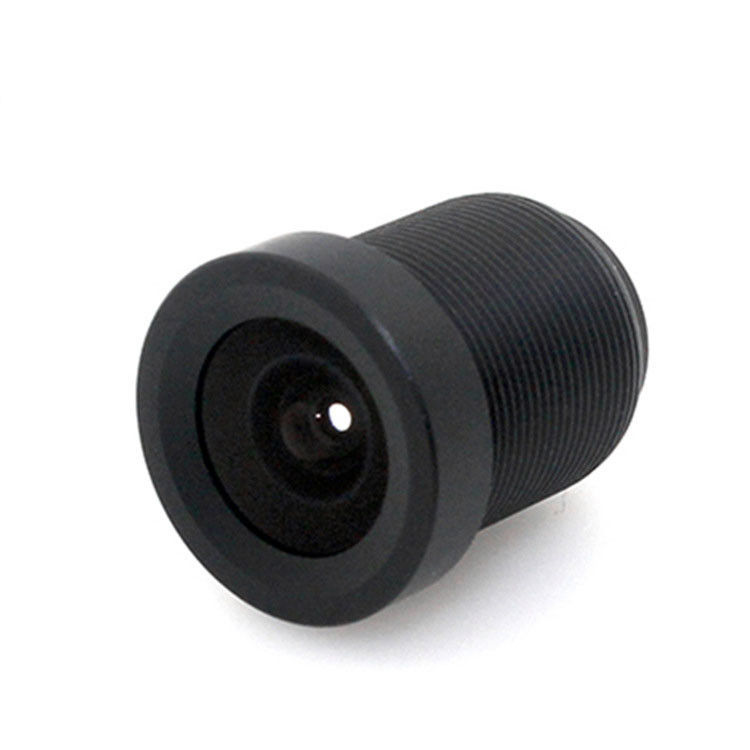

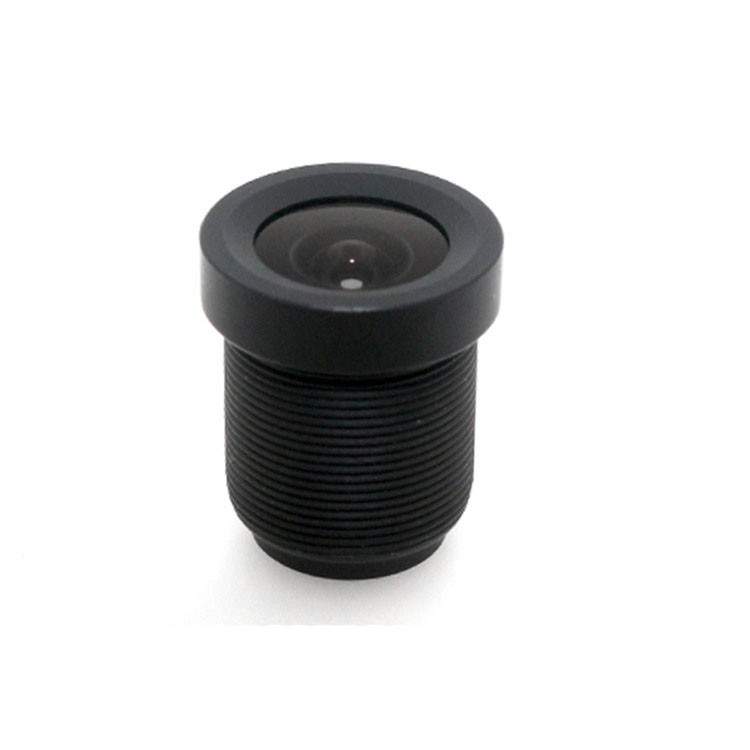

2.5mm Mini CCTV Lenses, 125 Degree Wide Angle CCTV Lens Fixed CCTV Camera IR Board Security Lens

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Octavia
Certification: CE, FCC, RoHS, etc.
Model Number: MR02525
Minimum Order Quantity: 100pcs
Price: USD$1.5-2.2USD/PC
Packaging Details: Standard packing
Delivery Time: 3-7days after the order is confirmed
Payment Terms: T/T, PAYPAL, WEST UNION, L/C, etc.
Supply Ability: 100000pcs/month
Focal Length:: 2.5mm Mount: M12*0.5
Aperture: F2.0 Image Size: 1/3''
Model: MR02525

2.5mm Mini CCTV Lenses, 130 Degree Wide Angle CCTV Lens Fixed CCTV Camera IR Board Security Lens:


Model MR02525 Mount M12*0.5
Focal Length 2.5mm BFL 3.63mm
Sensor Size 1/4'' Flange Back Length 2.63mm
Aperture F2.0 Dimension Φ14*16.5mm
MOD 0.2m Operating Temperature -20°C -- +60°C
Angle of View 130° Optical Distortion -40%
Remark Metal Lens


1.2.5mm F2.0 board MTV Lens, fixed iris manual focus lens.
2. 1/4" Format High quality cctv lens, optical cctv lens ,M12 Mount Lens
3. 2.5mm focal length 130 Degree of DFOV security lens
4. Wide angle fisheye Lens for box camera,Surveillance Lens, Mini Dome Camera Lens
5. This cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.


Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are MP lens, more pixels of 2.5mm is avaialable, IR Cut and Lens Holder are available as per request.


Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.


Tag: Mini CCTV Lenses

2.5 mm 130 Degree Angle CCTV Camera Lens M12 X P0.5 MTV Board Lens For IR Camera 1/4" CCD CMOS Sensor IR Filter
