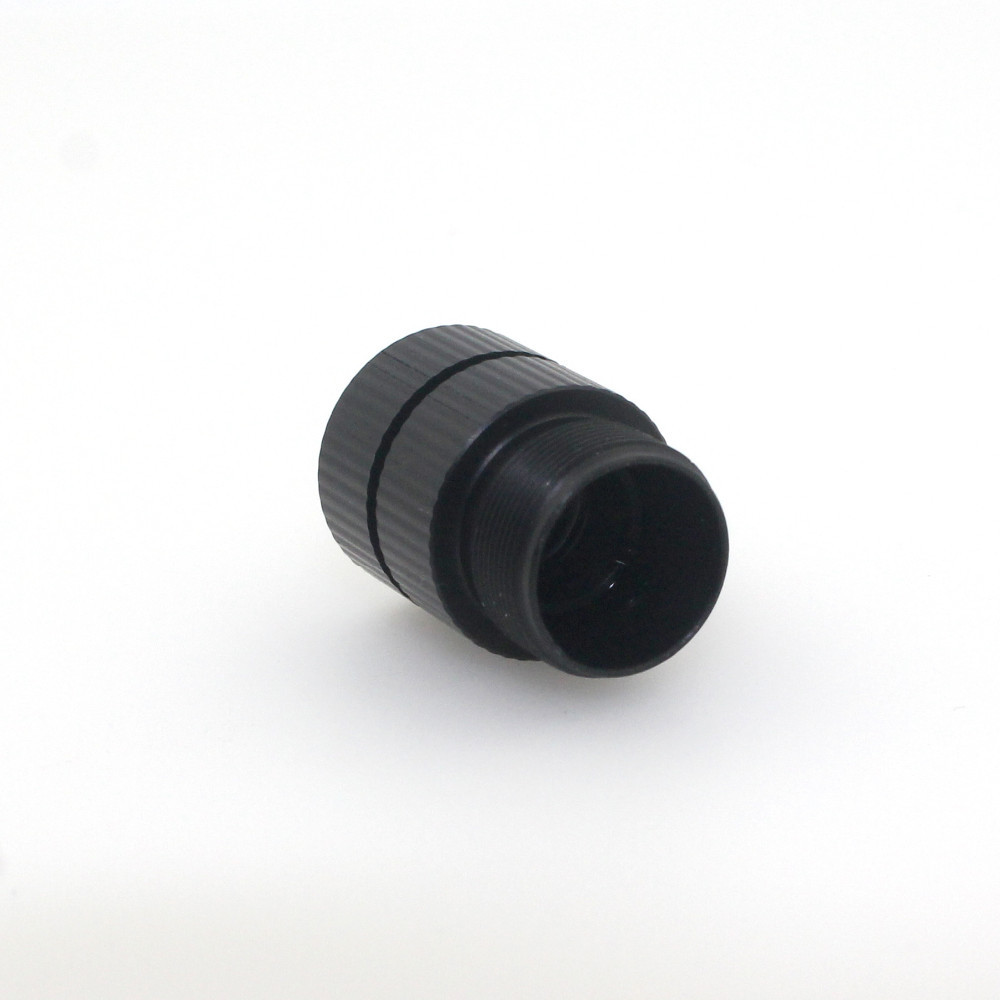

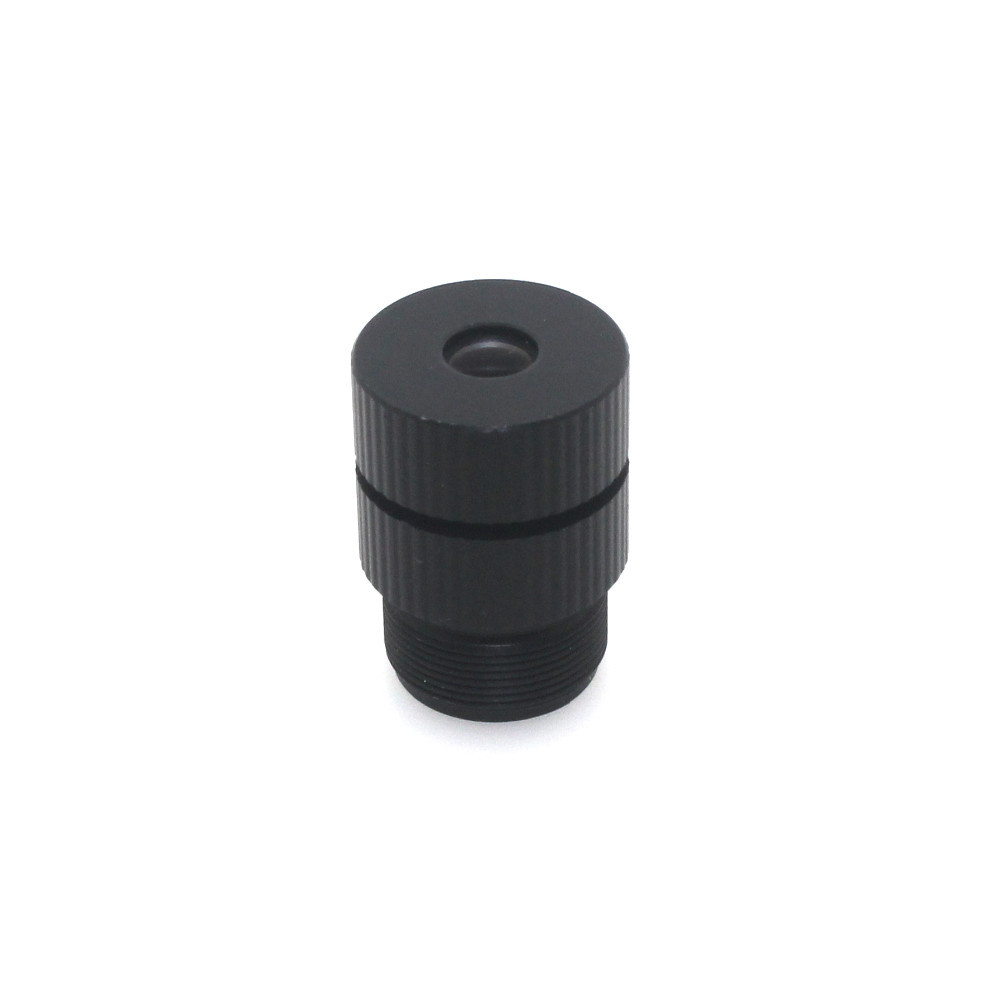

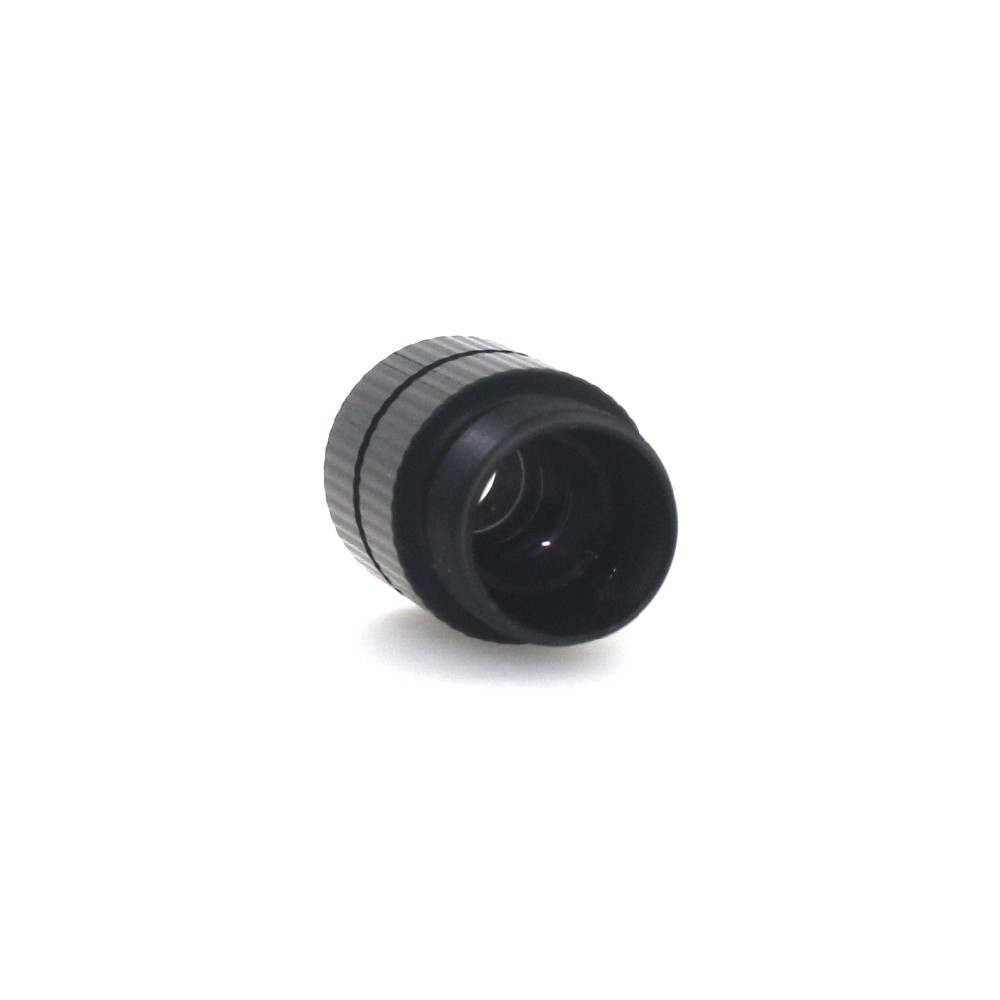

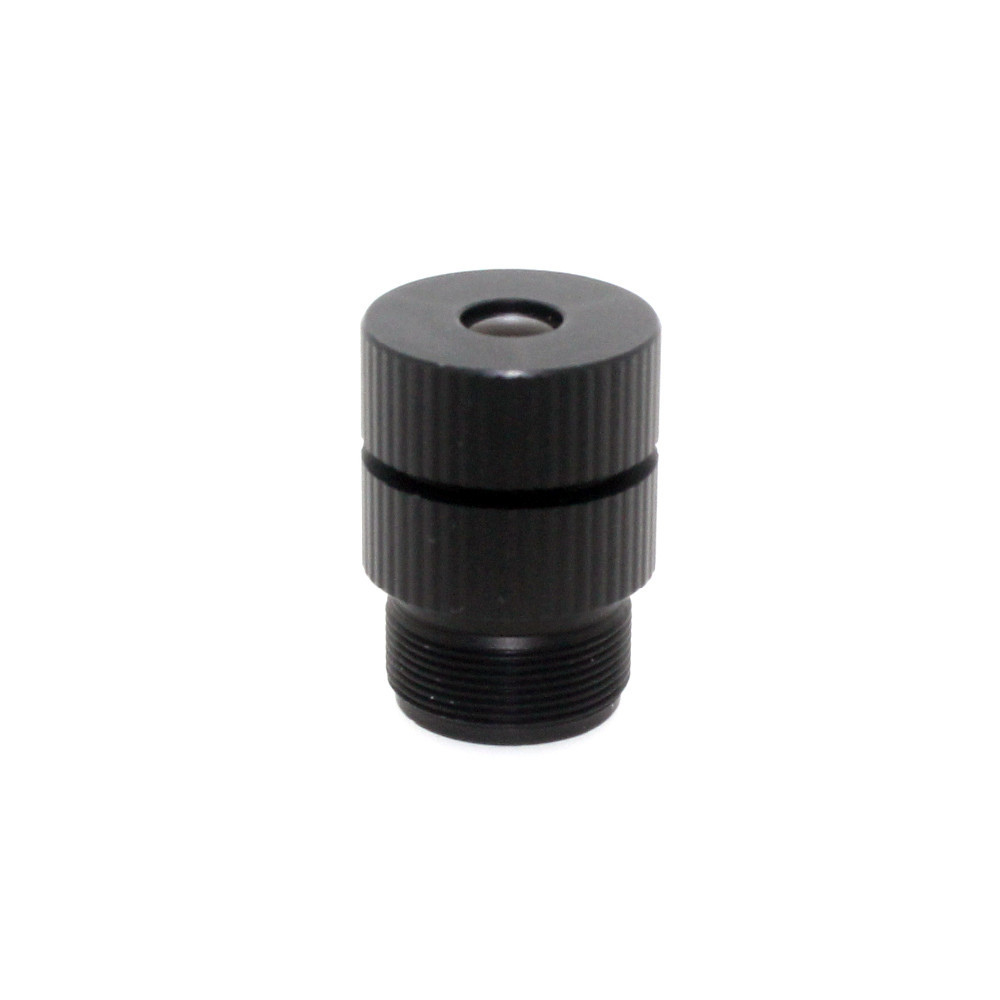

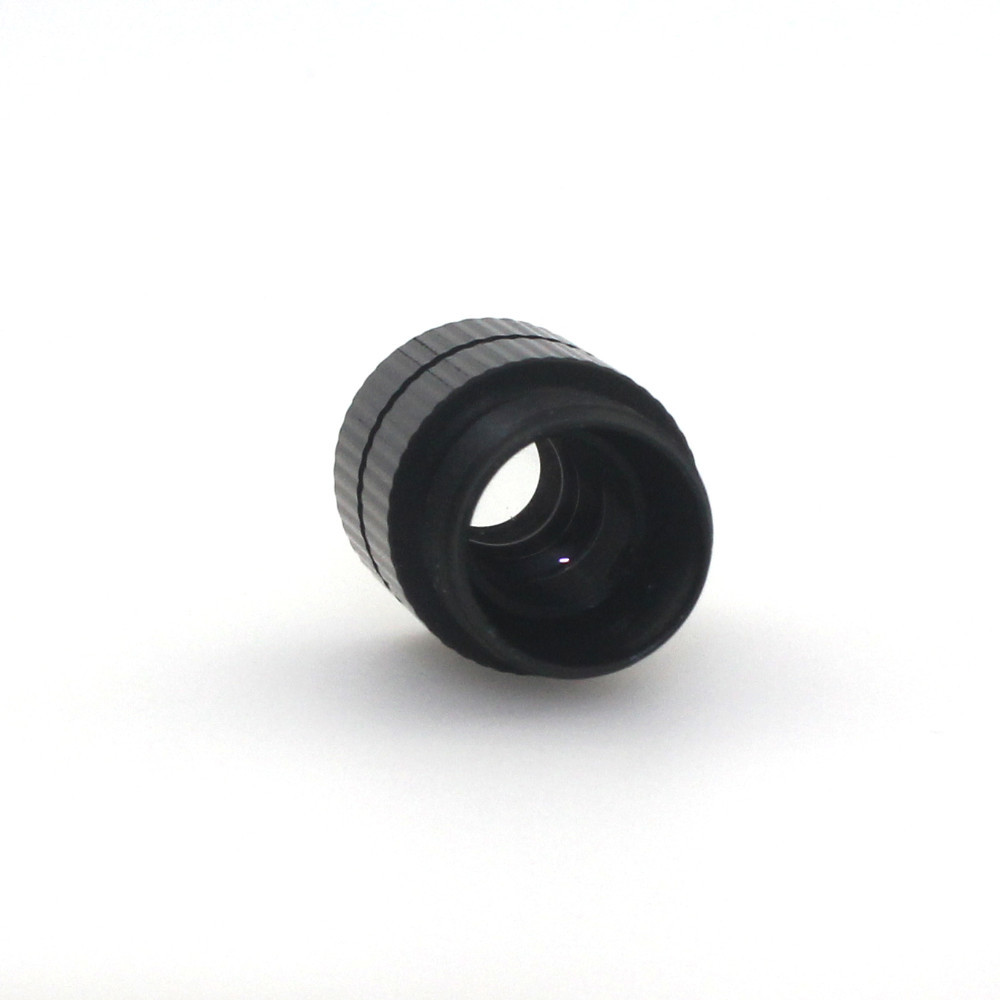

25mm CCTV Camera IR Board Lens view 70m 15 degrees for both 1/3" and 1/4" CCD lenses

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Octavia
Certification: CE, FCC, RoHS, etc.
Model Number: MR2520
Minimum Order Quantity: 100pcs
Price: $3.0-3.8USD/pc
Packaging Details: Standard packing
Delivery Time: 3-7days after the order is confirmed
Payment Terms: T/T, PAYPAL, WEST UNION, L/C, etc.
Supply Ability: 100000pcs/month
Focal Length: 25mm Mount: M12
Aperture: F2.0 Image Size: 1/3''
Iris: Fixed MOD: 0.2m
Material: Metal And Glass

25mm CCTV Camera IR Board Lens view 70m 15 degrees for both 1/3" and 1/4" CCD lenses:


Model MR2520 Mount M12*0.5
Focal Length 25mm Optical BFL 5.44mm
Sensor Size 1/3'' Weight 8g
Aperture F2.0 Dimension Φ12mm*14mm(D)*16.2mm(L)
MOD 0.2m Operating Temperature -20°C -- +60°C
Angle of View 14° Material Metal and Glass
Application IP AHD Cameras


1. CCTV AHD Camera lens, 25mm F2.0 mono-focal Lens, M12 mount lens.
2. 1/3" Format High quality cctv camera lens, optical lens , Metal board Lens
3. 25mm focal length 14 Degree security lens
4. This high resolution cctv lens is for 1.0 mega pixel camera,IP camera & High resolution camera.


Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.


Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.


Tag: CCTV Camera Lens
