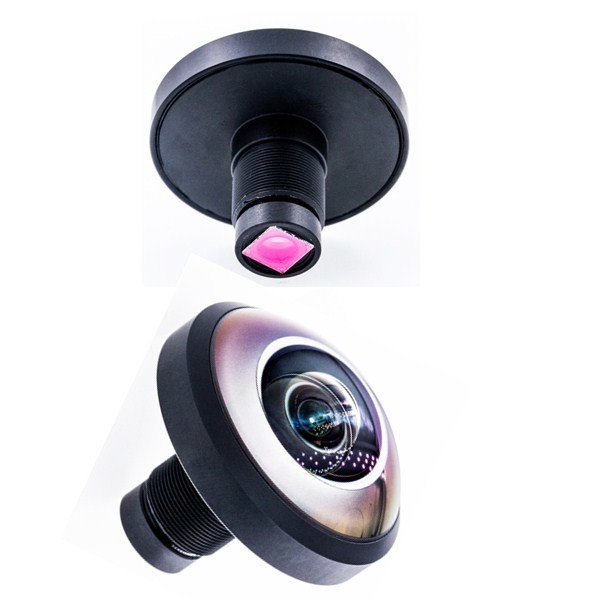

256 Degree 1.1mm 16MP Panoramic M12 Cctv Fisheye Lens

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-L01124X-I377
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model: MR-L01124X-I377 Mount: M12*0.5
Resolution: 16MP Focal Length: 1.1mm
Image Format: 1/2.3″ Aperture: F2.4
Field Angle(1/3%22): 256° BFL: 1.66mm
High Light:

1.1mm board camera lens

,

256 Degree ip camera fisheye lens

Factory production 256 Degree Super Fisheye Lens 1.1mm 16MP Panaramic M12 lens for GoPro Hero Cams:



Specification
Model MR-L01124X-I377 Mount M12*0.5
Focal Length 1.1mm Resolution 16.0MP
Sensor Size 1/2.3'' Sensor IMX377
Aperture F2.4 BFL 1.66mm
MOD 0.2m Barrel Material Aluminium Alloy
Angle of View 256° Structure G+IR
Remark Fisheye CCTV Lens



Features:
1. 16.0 megapixel High resolution lens,1.1mm F2.4 M12 mount fisheye lens.
2. 1/2.3" Format High quality manual iris optical gopro hero lens
3. 1.1mm focal length 256 Degree super wide angle security lens
4. φ4.4mm image circle Wide angle fisheye Lens for Panoramic CMOS Image Sensor Camera Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.





Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 16.0 Megapixel, IR Cut and Lens Holder are available as per request.







Factory production 256 Degree Super Fisheye Lens 1.1mm 16MP Panaramic M12 lens for GoPro Hero Cams
