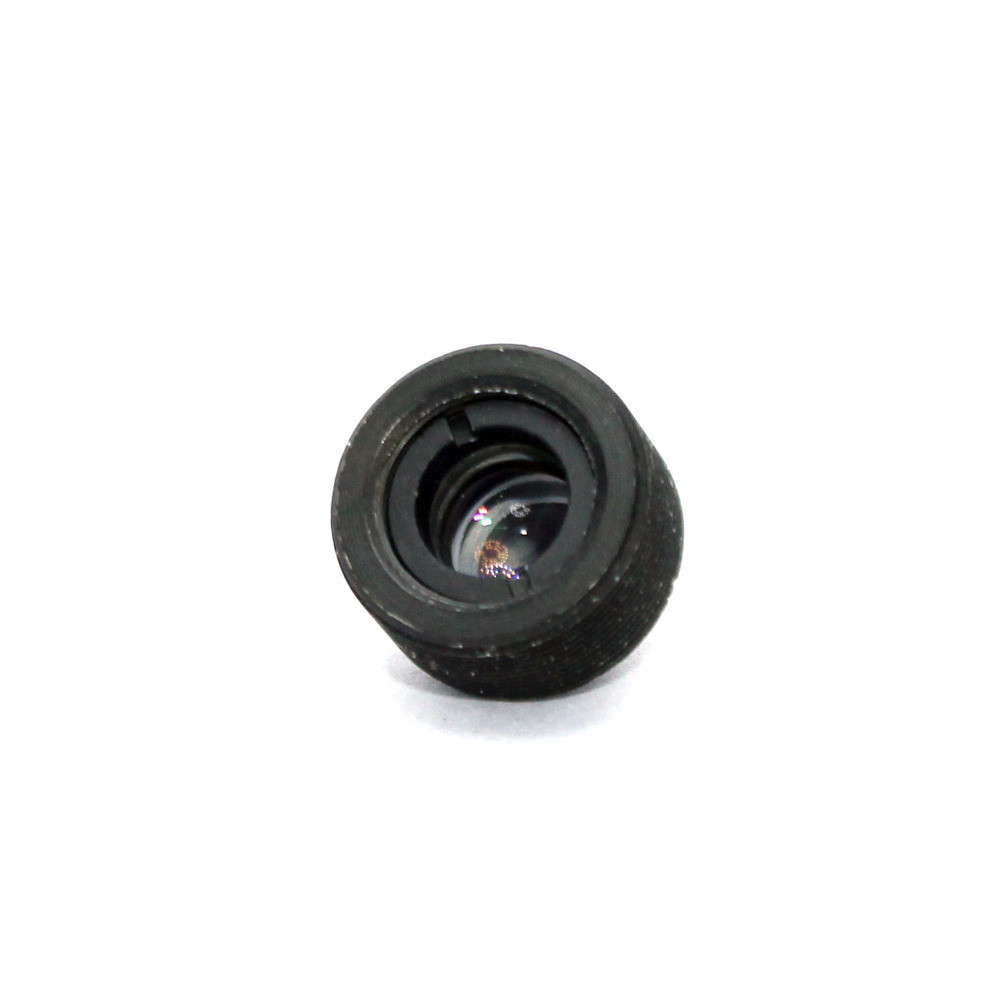

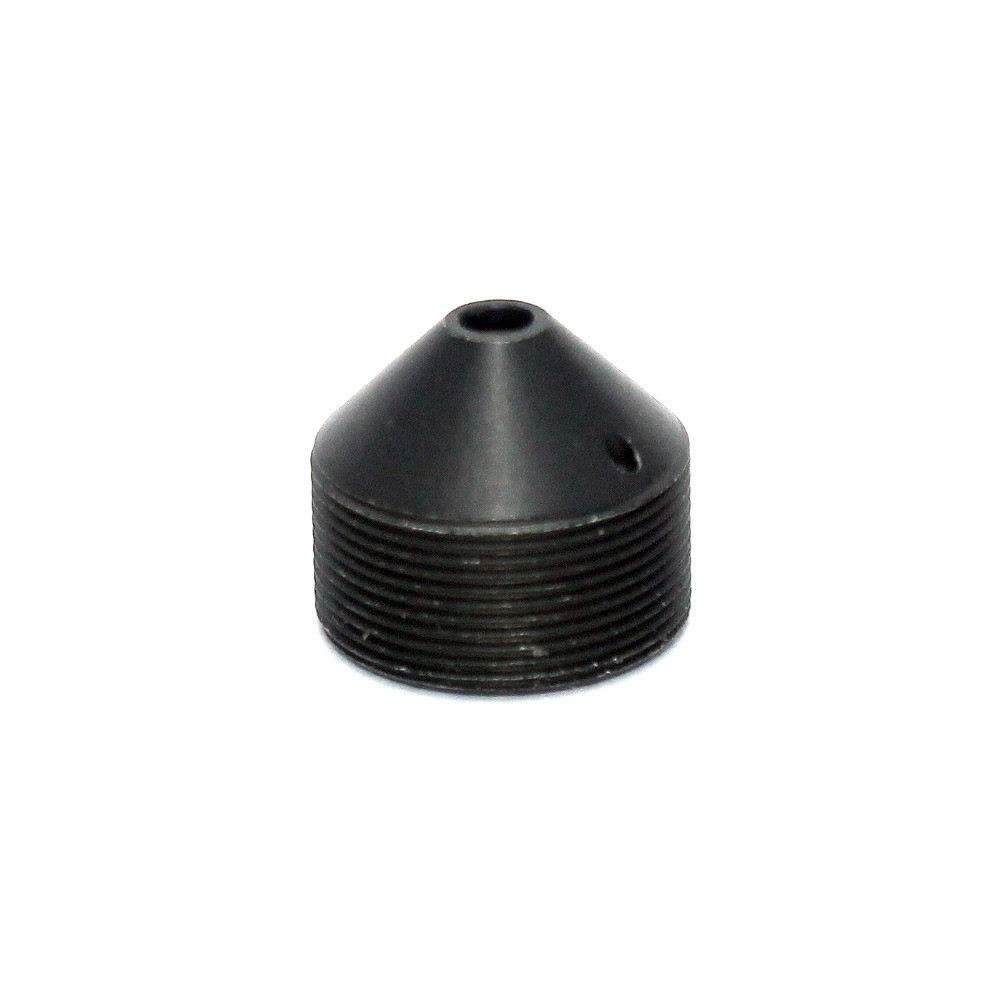

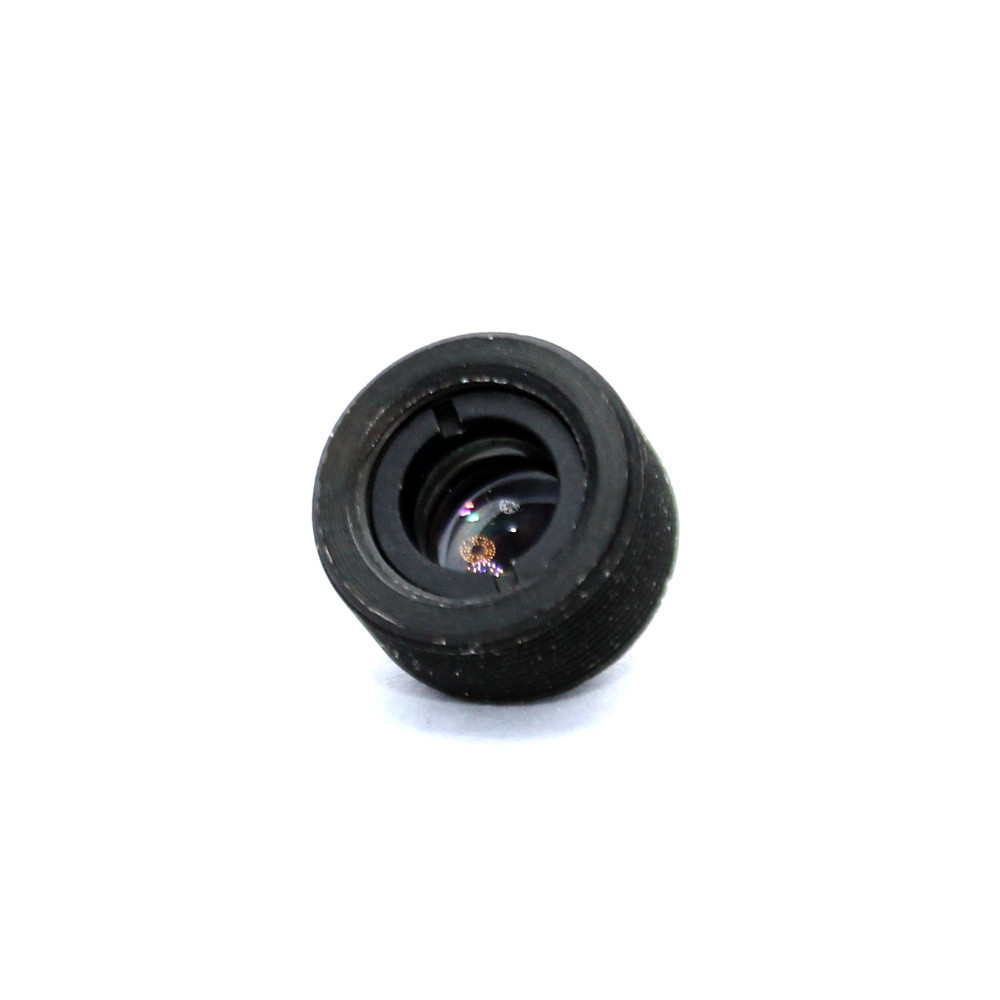

HD Megapixel Pinhole CCTV Lens Mount 12*0.5 F2.0 1/3" For Video Doorbell Cameras

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C0820WZK-MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The products will be ready within 3 to 7 days, New products will need 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model: MR-C0820WZK-MP Mount: M12*0.5
Focal Length: 8mm Image Format: 1/3''
Aperture: F2.0 Field Angle(1/3%22): 46°
Lens Size: Φ12mm(Dia) * 8.3mm(H)
High Light:

megapixel pinhole lens


pinhole camera lens

8mm HD Megapixel pinhole CCTV Lens, mount 12*0.5, F2.0, 1/3" for video doorbell cameras:


Model MR-C0820WZK-MP Mount M12*0.5
Focal Length 8mm BFL 4.66mm
Sensor Size 1/3'' EFL 2.49mm
Aperture F2.0 Dimension Φ12*8.3mm
MOD 0.2m Operating Temperature -20°C -- +80°C
Angle of View 46° Resolution 1MP
Application Pinhole plane lens, doorbell lens




8mm HD Megapixel pinhole CCTV Lens, mount 12*0.5 for IP 720p/1080p CCD Camera
2. 1/3" Format High quality for CCTV camera, video doorbell lens
3. F2.0 aperture M12 mount 8mm 46 Degree of FOV security lens
MP High resolution Mini Lens, HD hidden camera lens


Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens

it could meet the demands as per MP resolution cameras. IR Cut and Lens Holder are available as per request.


Supply Ability:10000 pcs per month


Packaging & Delivery


100 pcs lens / bag

5000 pcs lens / carton

Or as your request
