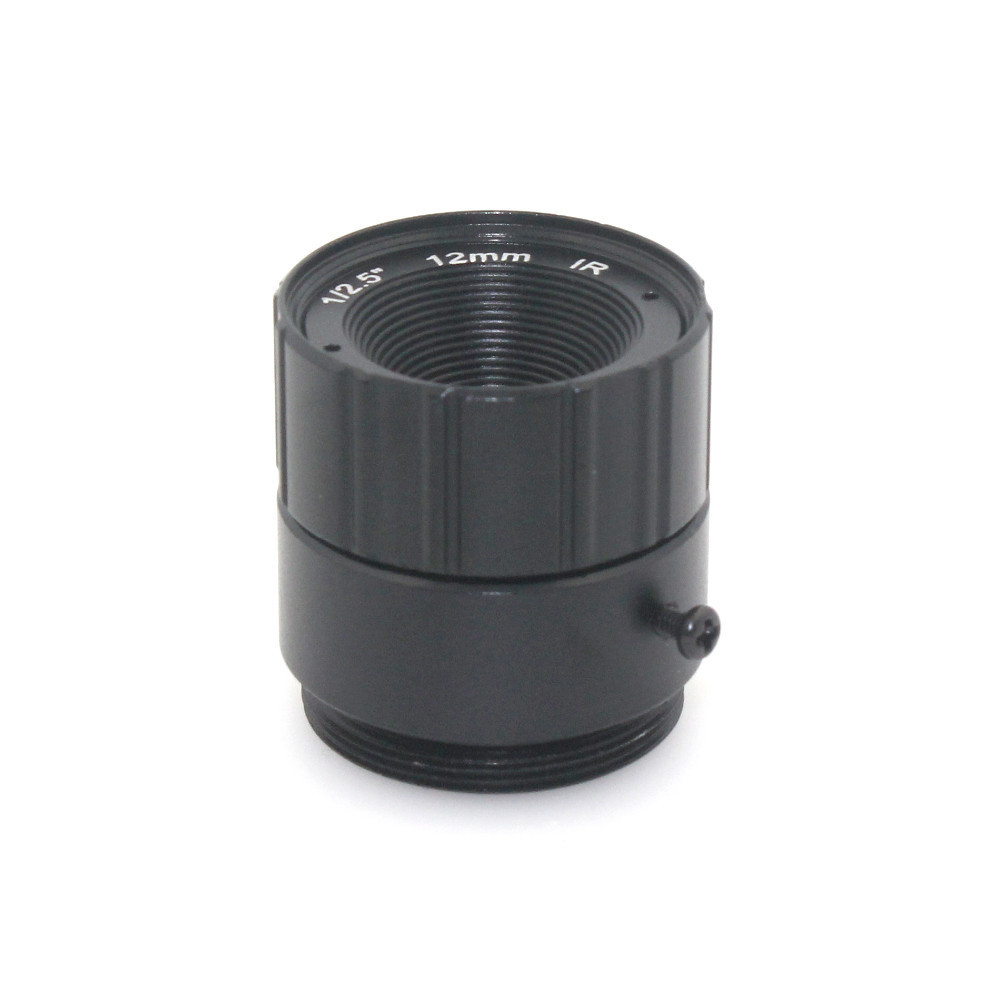

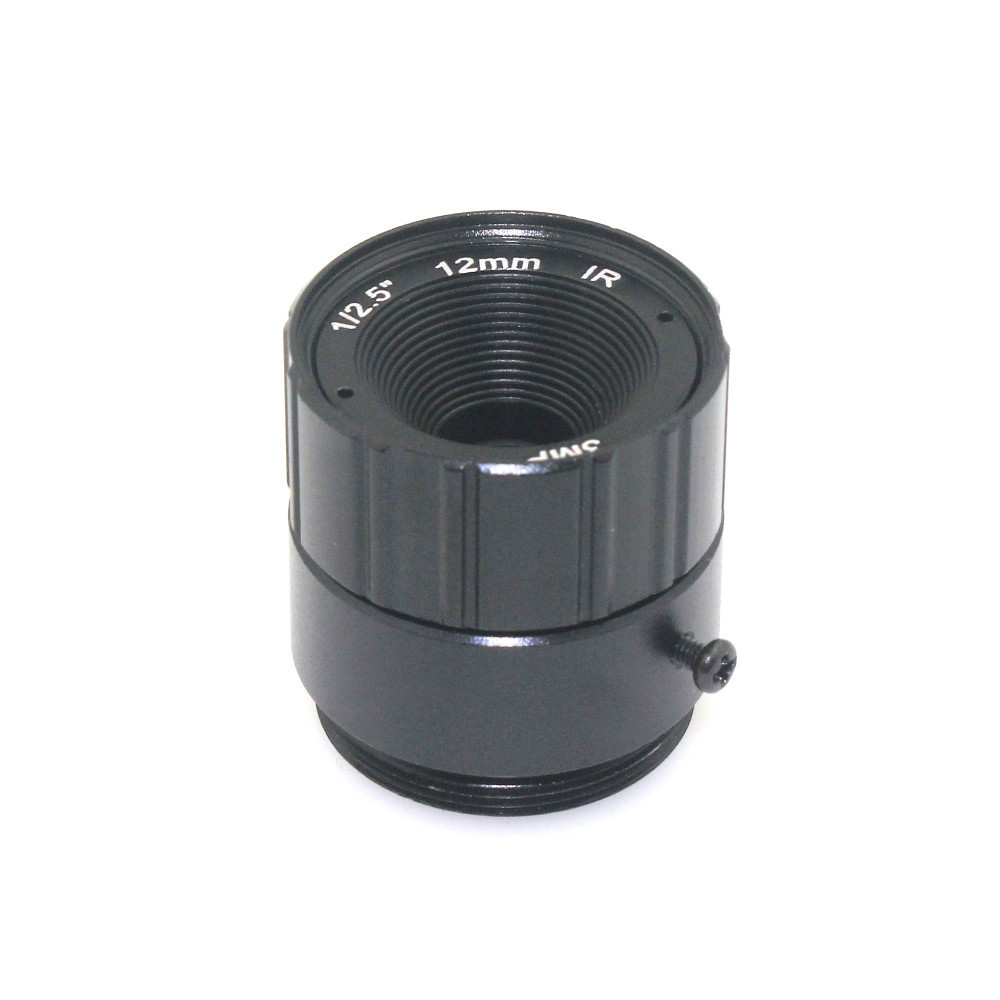

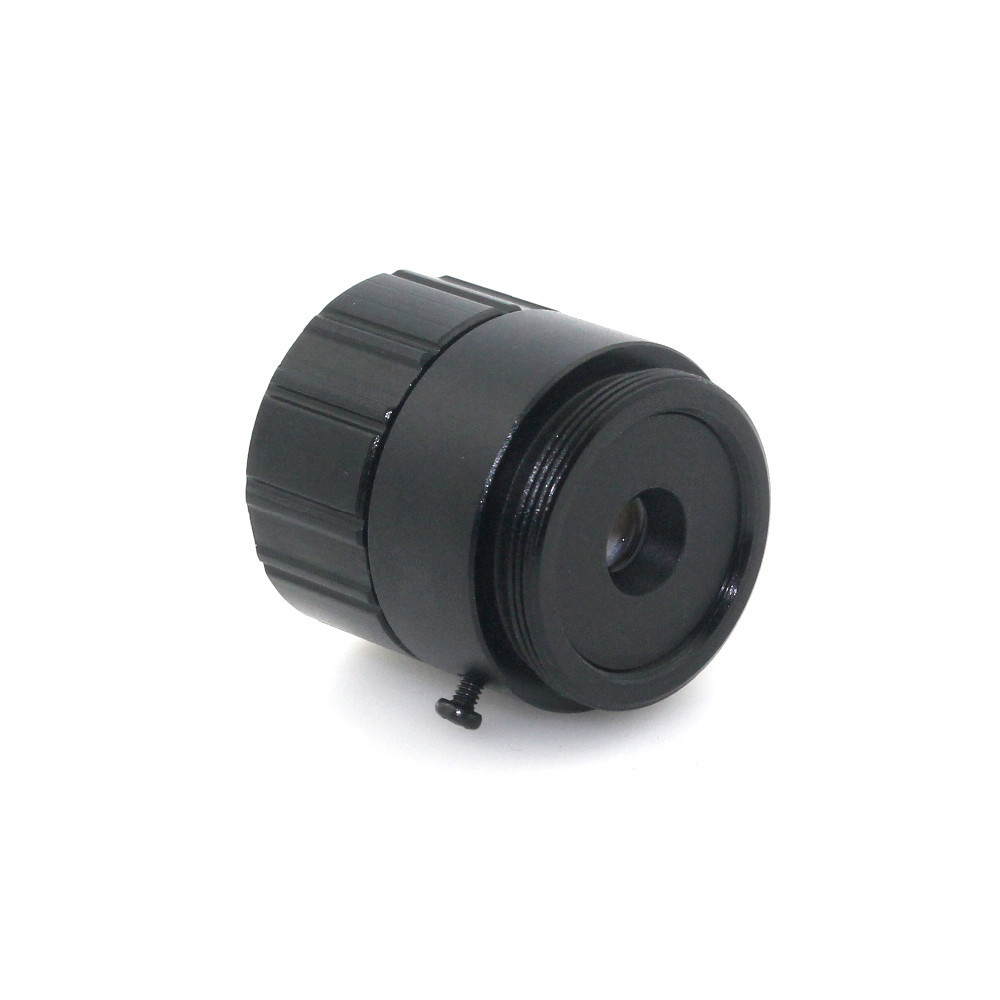

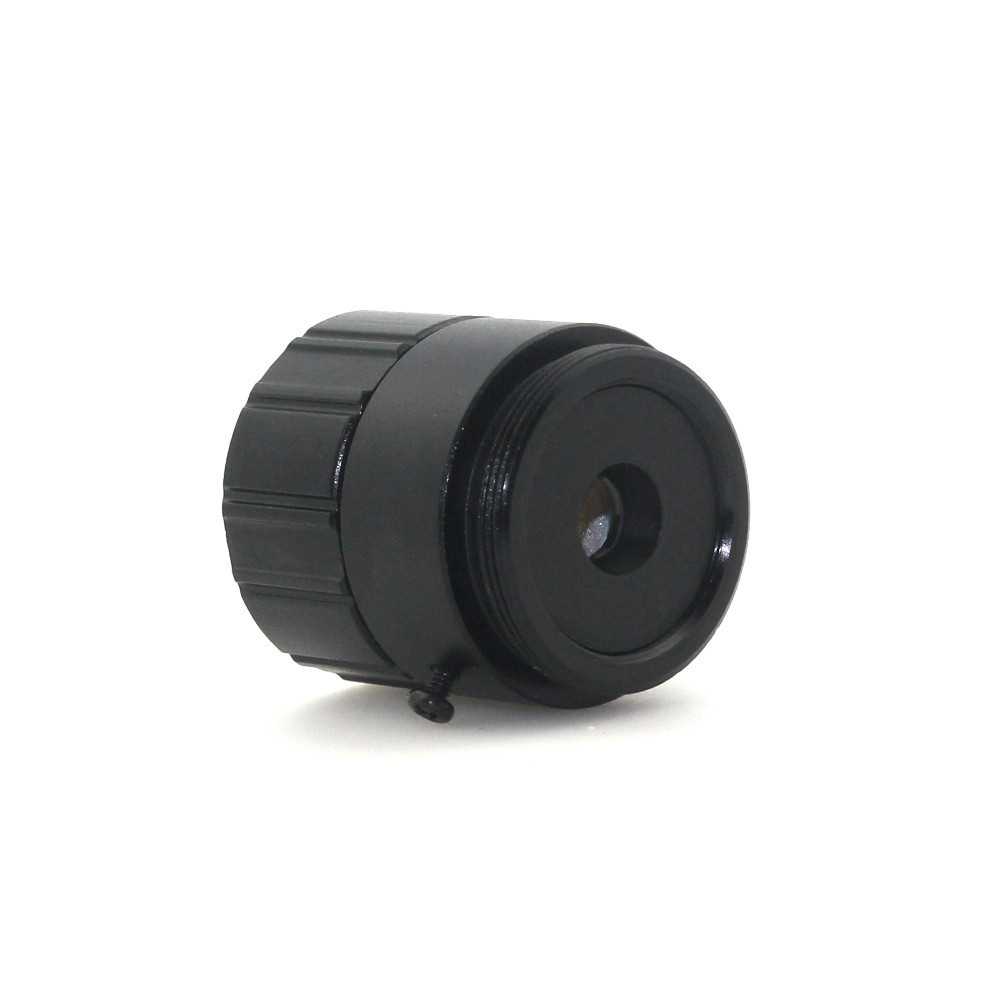

12mm IR Fixed Security Camera Lens 3 Mega Pixels 1/3" F1.6 High Resolution

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-1214F125-3MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model: MR-1214F125-3MP Mount: CS
Resolution: 3.0MP Focal Length: 12mm
Image Format: 1/2.5″ Aperture: F1.4
HFOV: 25° Application: For HD IP Camera
High Light:

cs mount cctv lens

,

c mount camera lens

3Mega pixels 12mm CS lens IR Fixed CS Lens 1/3" CS F1.6 lens for CCTV Security Camera



Specification

Model MR-1214F125-3MP Mount CS
Focal Length 12mm Resolution 3.0MP
Sensor Size 1/2.5" Iris Fixed
Aperture F1.4 BFL 9.7mm
MOD 0.2m Dimension Φ28x32.2mm
HFOV 25° Weight 41.2g
Application IP Camera Lens

3Mega pixels 12mm CS lens IR Fixed CS Lens 1/3" CS F1.6 lens for CCTV Security Camera

Features:
1. 3.0 Megapixel Monitoring lens, 12mm F1.4 mono-focal Lens, fixed iris manual focus lens.
2. 1/2.5" Format High quality cctv camera lens, optical lens , CS mount Lens
3. 12mm focal length 25 Degree security lens
4. IP Camera Lens for Network camera, Surveillance Lens, IR Infrared Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 3.0 Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.



Tag: CS Mount Lens
