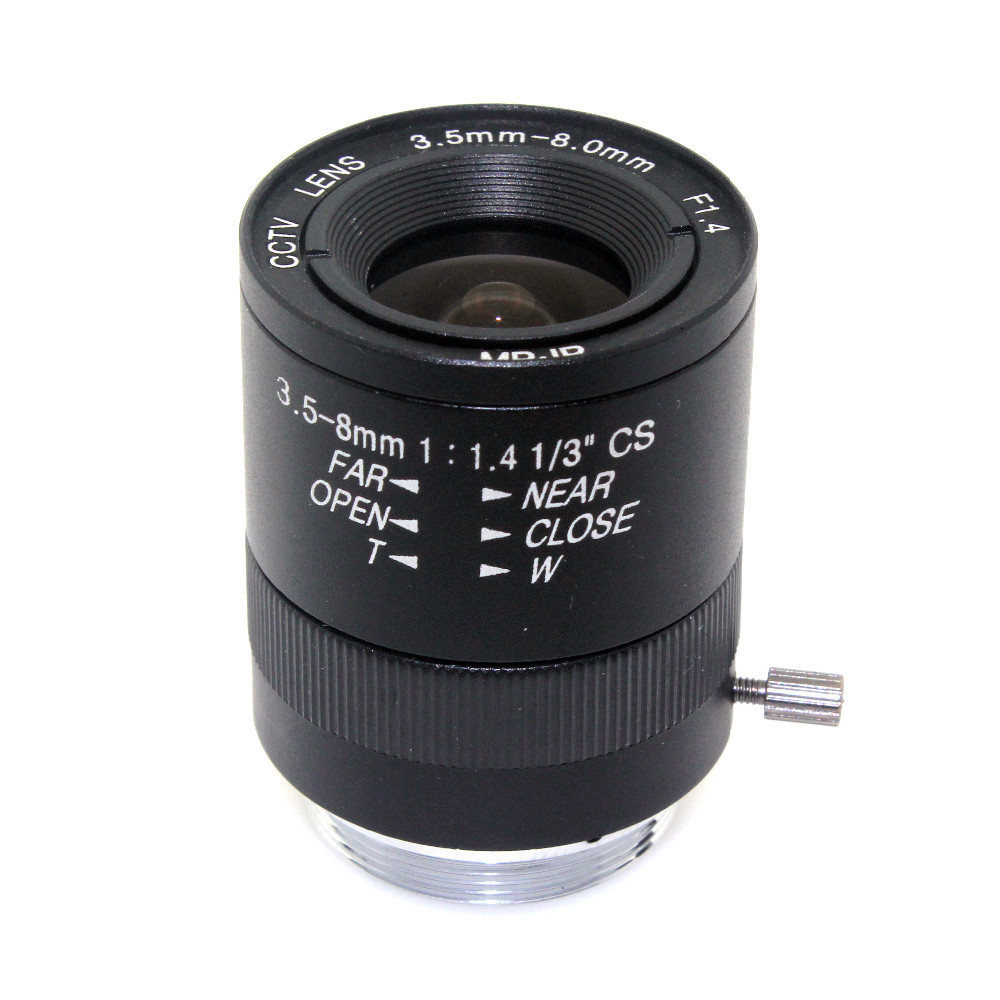

Metal Digital Varifocal Lenses Interface 1/3 Machine Vision 3.5-8mm Manual Aperture

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-0358V
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model: MR-0358V Mount: CS
Focal Length: 2.8-12mm Image Format: 1/3″
Aperture: F1.4 Field Angle(1/3%22): 95°45'~44 °6'
Iris: Manual
High Light:

digital varifocal lenses

,

infrared zoom lens

3.5-8mm HD surveillance lens CS interface 1/3 Machine vision lens megapixel Manual aperture Manual focus lens



Specification

Model MR-0358V Mount CS
Focal Length 3.5-8mm Resolution 1MP
Sensor Size 1/3" Zoom Manual
Aperture F1.4 Dimension Φ32*44mm
MOD 0.2m Iris Manual
Angle of View 95°45'~44 °6' Focus Manual
Application Vari-focus Lens for HD Camera



Features:
1. Vari-focal lens for HD Camera, 3.5-8mm F1.4 CCTV Lens, 1MP Manual Iris CS mount lens.
2. 1/3" Format High quality cctv camera lens, optical lens , cs mount vari-focal Lens
3. 3.5-8mm focal length, field of view 95-44 Degree security lens
4. 1.0 Megapixel Lens for CCTV camera, Surveillance Lens, HD Security Lens





Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are 1.0 Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.



Tag: Megapixel Vari-focal Lens

3.5-8mm HD surveillance lens CS interface 1/3 Machine vision lens megapixel Manual aperture Manual focus lens

Metal Digital Varifocal Lenses Interface 1/3 Machine Vision 3.5-8mm  Manual Aperture 1
