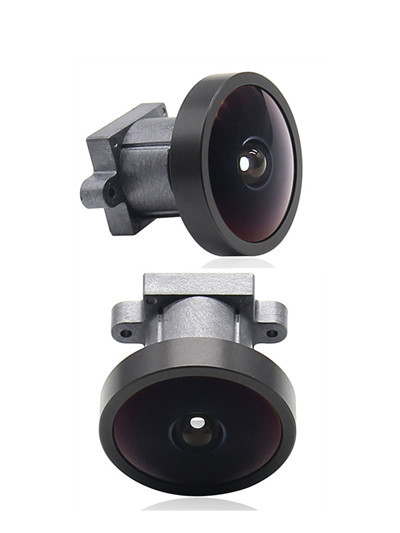

1/2.9 F1.6 Aperture Full Glass HD FOV150 Automotive Vehicle Lens

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-L02916X-I332
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model: MR-L02916X-I332 Mount: M12*0.5
Focal Length: 2.9mm Aperture: F1.6
DFOV: 146°*119°*62° BFL: 4.38mm
High Light:

2.9mm ip camera fisheye lens

Production of customized 2.9mm 1/2.9 car camera lens F1.6 aperture full glass HD FOV150 Automotive Vehicle lens:


Model MR-L02916X-I332 Mount M12*0.5
Focal Length 2.9mm BFL 4.38mm
Sensor Size 1/2.9'' Distortion <19%
Aperture F1.6 CRA <10°
MOD 0.2m RI >88%
Angle of View 146°*119°*62° Structure 6G
Operating Temp. -40°C ~ +85°C Sensor IMX332
Application Car Camera Lens


1. Car Camera lens, 2.9mm F1.6 Vehicle recorder Lens
2. 1/2.9" Format High quality cctv camera lens, optical Mini MTV Lens
3. 2.9mm focal length 146 Degree of FOV security lens, can match with IR CUT

4. The resolution 2.0MP CCTV Lens can be used for IP camera & High resolution camera.
5. Wide angle Lens for automotive camera, Surveillance Low distortion Lens


Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are Megapixel,
IR Cut and Lens Holder are available as per request.


Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.

Production of customized 2.9mm 1/2.9 car camera lens F1.6 aperture full glass HD FOV150 Automotive Vehicle lens
