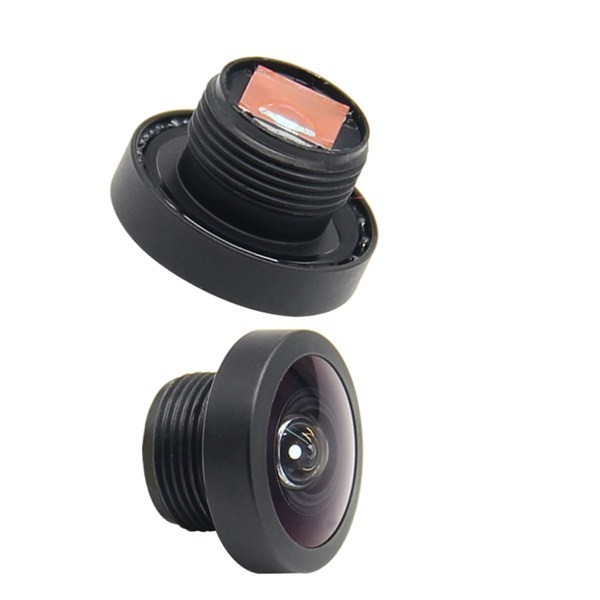

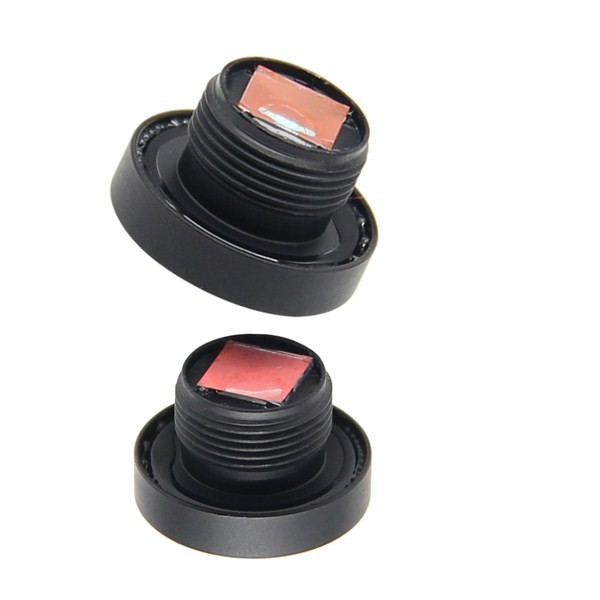

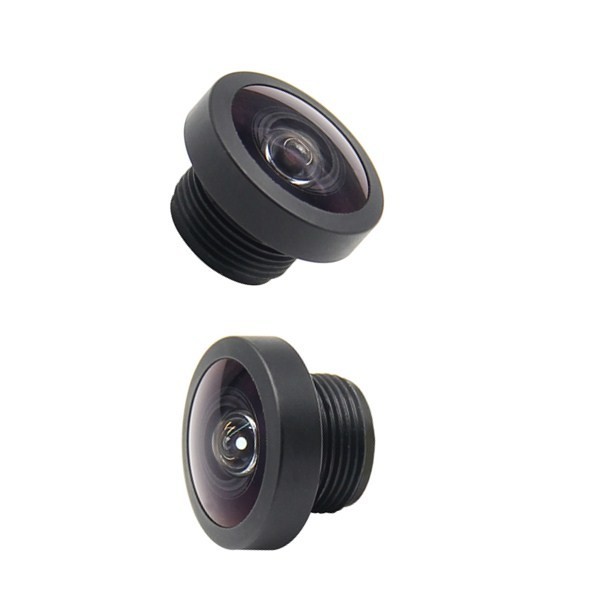

Rear View Night Vision M8 1.02mm CCTV lens

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-T10222S-O7740
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model: MR-T10222S-O7740 Mount: M12*0.5
TTL: 10.15mm Focal Length: 1.02mm
FOV: 131°*110°*88° Aperture: F2.25
High Light:

1.02mm high resolution lens

,

f2.25 night vision lens

Cheap Mini lens car rear view rear view camera lens car security wide angle night vision M8:



Specification
Model MR-T10222S-O7740 Mount M8*0.5
Focal Length 1.02mm Resolution Megapixl
Sensor Size 1/5' Distortion <6.5%
Aperture F1.8 RI >78%
MOD 0.2m CRA <14°
Angle of View 131°*110°*88° Structure 4E+1 IR
Operating Temp. -40°C ~ +85°C Sensor OV7740
Application rear view camera lens



Features:
1. M8 mount Mini lens for car rear view rear view cameras
2. 1/5" Format HD wide angle vehicle driving recorder lens
3. 1.02mm focal length 131 Degree of DFOV car security wide angle night vision lens
4. F1.8 big aperture, large number of light through the lens surface



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 5.0 Megapixel, IR Cut and Lens Holder are available as per request.



Cheap Mini lens car rear view rear view camera lens car security wide angle night vision M8
