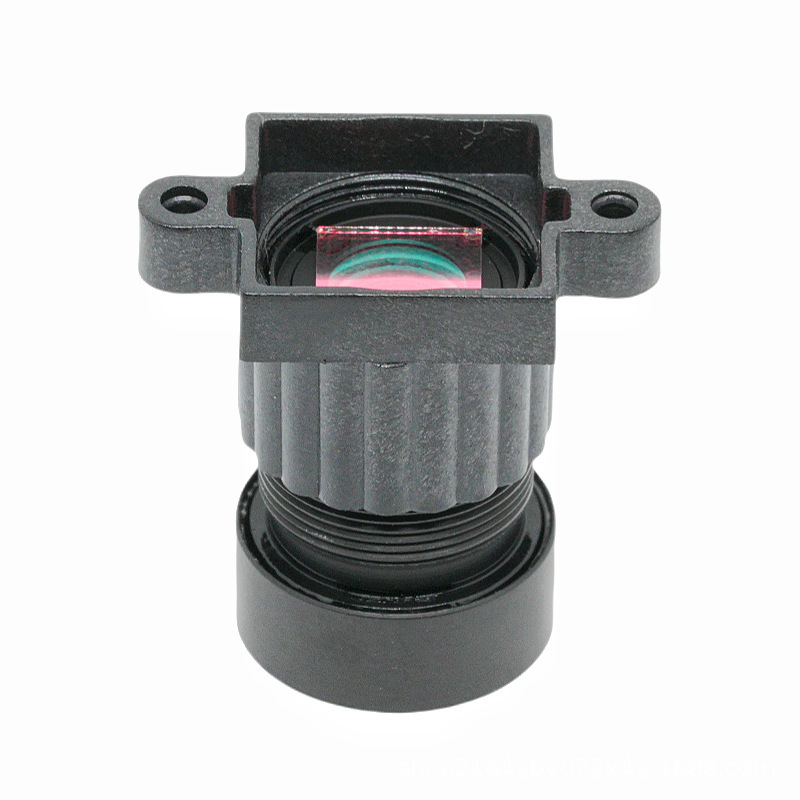

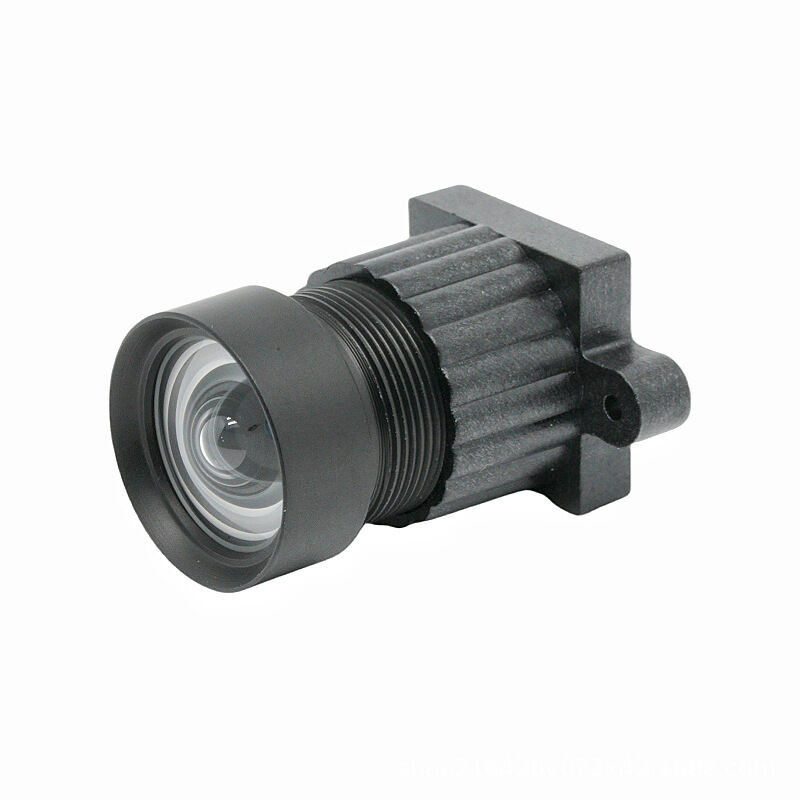

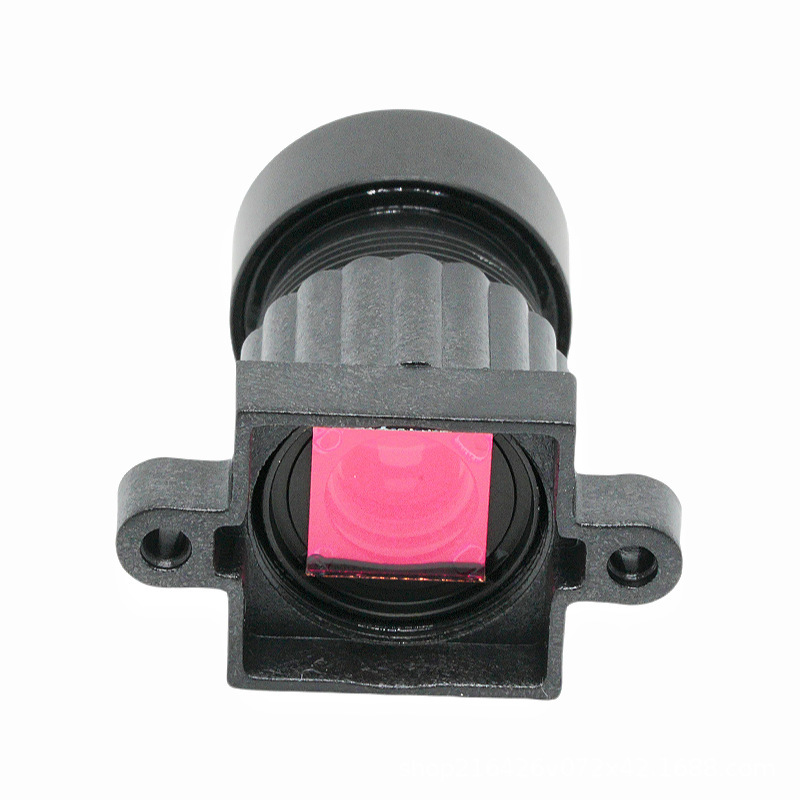

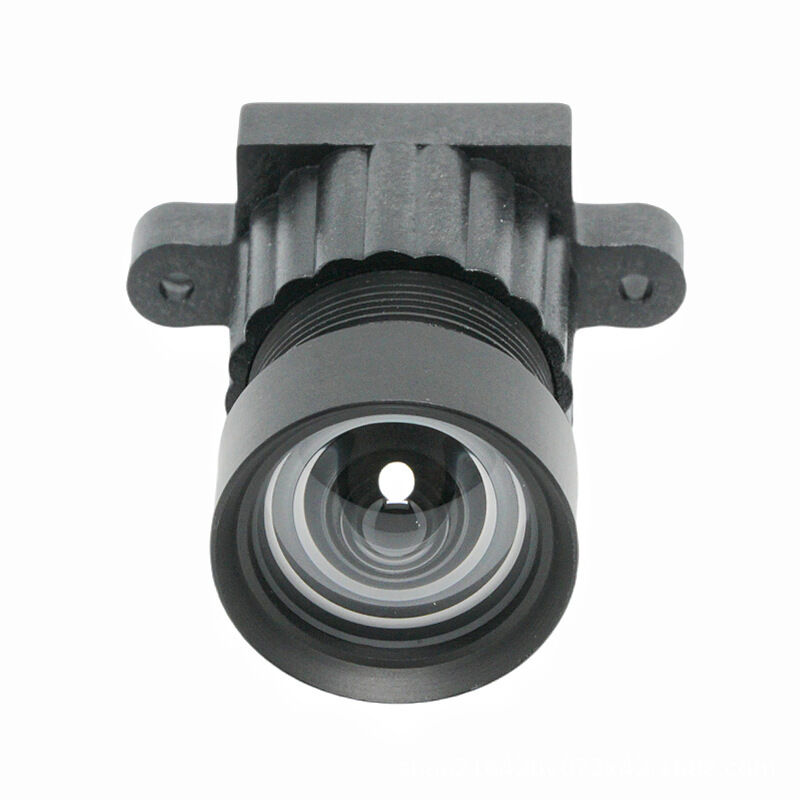

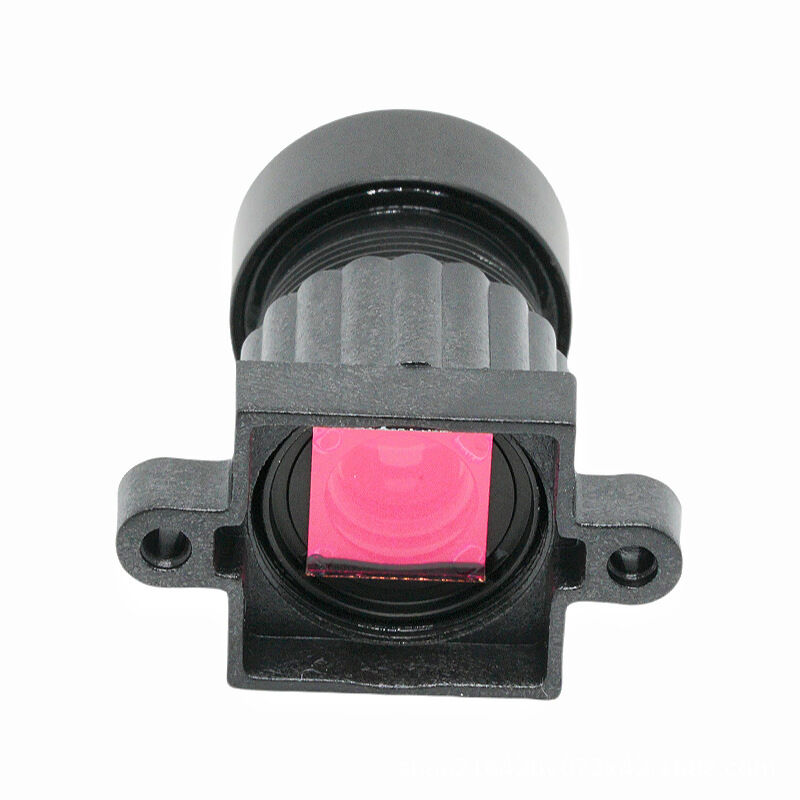

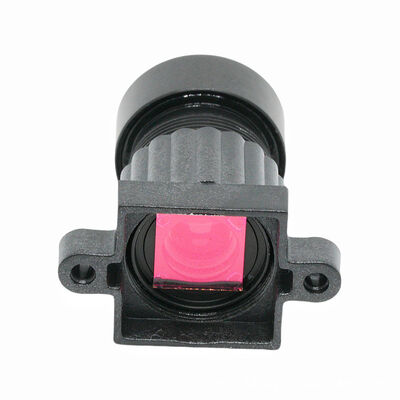

960P 1/2.7" 3.6mm 95 Degrees Wide Angle CCTV IR Fixed Board Lens M12 IR CUT Mount Holder Support for Analog IP Cam lens

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C3620WYT-1037IRC
Minimum Order Quantity: 100pcs
Price: $1.8-2.5USD/pc
Packaging Details: Standard packing
Delivery Time: 3-7days after the order is confirmed
Payment Terms: T/T, PAYPAL, WEST UNION
Supply Ability: 100000pcs/month
Model: MR-C3620WYT-1037IRC Sensor Size: 1/2.7''
Mount: M12*0.5 Aperture: F2.0
Focal Length: 3.6mm HFOV: 95°
Reoslution: 1.3MP MOD: 0.2m

960P 1/2.7" 3.6mm 95 Degrees Wide Angle CCTV IR Fixed Board Lens M12 IR CUT Mount Holder Support for Analog IP Cam lens:



Specification
Model MR-C3620WYT-1037IRC Mount M12*0.5
Focal Length 3.6mm Iris Fixed
Sensor Size 1/2.7'' Resolution 1.3MP
Aperture F2.0 Weight 5g
MOD 0.2m Operating Temperature -20°C -- +60°C
Angle of View 95°
Remark IP Camera Lens

960P 1/2.7" 3.6mm 90 Degrees Wide Angle CCTV IR Fixed Board Lens M12 IR CUT Mount Holder Support for Analog IP Cam lens

Features:
1. 3.6mm m12 Camera lens, F2.0 mono-focal Lens, fixed focal lens.
2. 1/2.7" Format High quality cctv camera lens, optical lens , Mini MTV Lens
3. 95 Degree of FOV security lens
4. Board Lenses for CCTV camera, Surveillance Lens, manual focus Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 1.3 Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
