| Place of Origin: | China |
|---|---|
| Brand Name: | Octavia |
| Certification: | CE, FCC, RoHS |
| Model Number: | MR-CM12IRW-3MP-MI-SL |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | The inside is packed by blister box usually, the outer is packed by carton |
| Delivery Time: | The regular products will be ready within 3 to 7 days, special models will need about 30 days |
| Payment Terms: | T/T, L/C, PAYPAL, WEST UNION |
| Supply Ability: | 1000000pcs/month |
| Model: | MR-CM12IRW-3MP-MI-SL | Product Material: | Plastic |
|---|---|---|---|
| Control Voltage: | 3-8V | Coil Resistace: | 40±5%Ω |
| Driving Time: | <100ms | Filter Thickness: | 0.145mm, 0.21mm, 0.3mm Optional |
| Filter Coating: | Filter Coating With IR Film And AR Film | Switching Life: | 500 Thousand Times |
| Adapter Lens: | M12 Mount Lens | Fixed Hole Spacing: | 20mm |
| Assembly Exterior: | 25*25*12.4 | IR Filter Glass Size: | 7.0mm×6.5mm×0.21mm |
| Drive Angle: | 69°±1.5° | ||
| High Light: | infrared cut filter,mechanical ir cut filter |
||

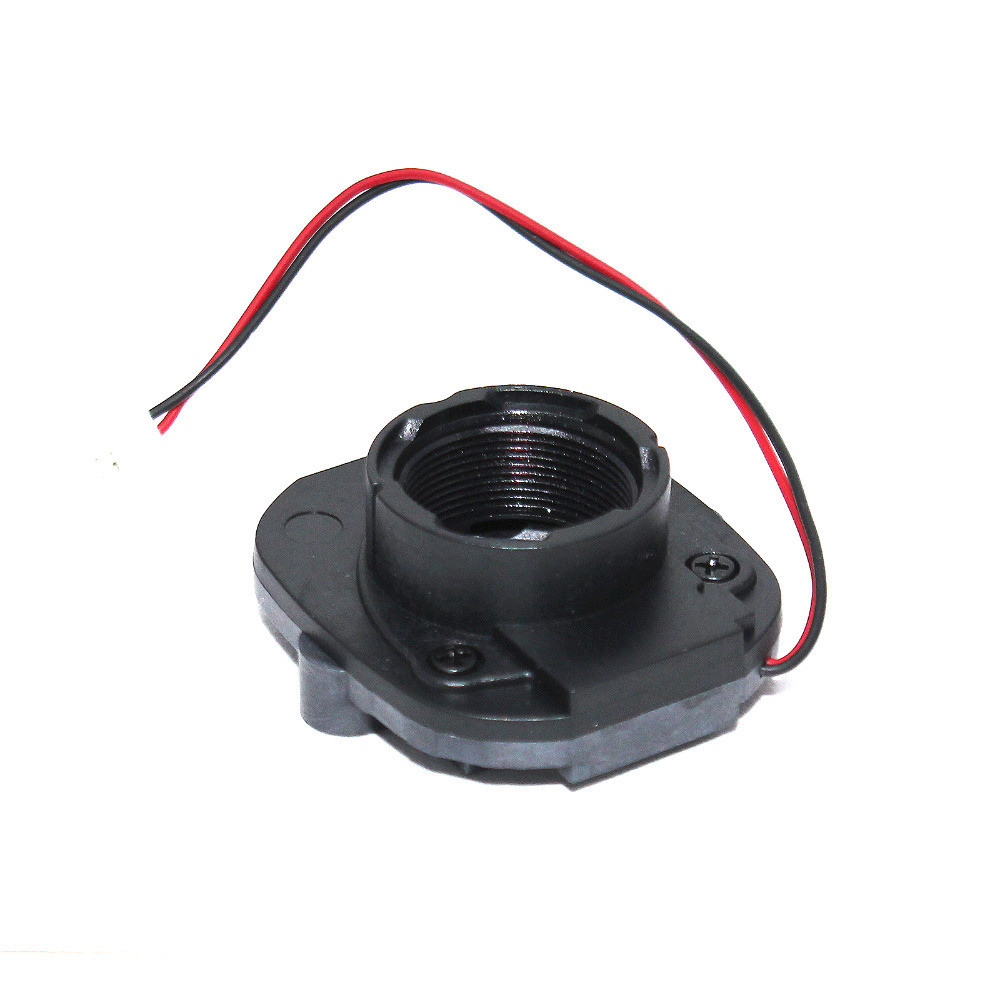

HD Dual Infrared Filter Switcher 20mm IR CUT M12 CCTV Lens Mount for ahd camera chip
Performance parameters
This product is suitable for network cameras, millions of HD cameras, infrared cameras, bolts and other cameras, let it cut off
Or through, the name is: dual filter switcher
The main role and function:
Corrects daytime polarization problems and improves nighttime brightness
working principle:
IR-CUT Dual Filter Switcher consists of: One IR Cut Filter and One Fully Permeable Filter + Electromagnetic Structure
1. Product material: lower cover PC plastic + lens mount PC plastic
2. Coil impedance: 40±5%Ω (at room temperature 25°C)
3. Drive voltage: Operating voltage: 3V~8V
Drive pulse signal time: 100ms
4. Inductance: 430uH±5%
5. Actuation direction, posture: the red wire is connected to the positive voltage, the black wire is connected to the negative voltage, and the product is switched to the infrared cut filter
Light film (used during the day), on the contrary, the product is switched to the white film (night use) direction, posture: side, front, back (all-round test does not move, incomplete, interference can not)
6. Checker IR-CUT test board/set voltage: 4V/set drive pulse signal time: 100ms±10ms
7. Actuation mode Adopt DC voltage circuit to control magnetic rotary magnetic valve
8. Static energy retention Product retains power even when no power is applied
9. Normal temperature and humidity standard Temperature: +25°C±5°C, humidity 65%±20%
10. Magnetic induction 1000Gs ± 10%, temperature 120 °C ± 5 °C
11. Terminal White, 2Pin*1.25mm, Insertion Force 0.5Kg
Package: 1PCS IR CUT
Product characteristics
The positive polarity is red and black are negative, polarity reverse order is red and blue negative.
The red filter requirements in the center before product package.
High temperature resistance and no deformation.
Provide different matching schemes according to the customer's requirement.
With IR CUT Without IR CUT
With IR CUT Without IR CUT
